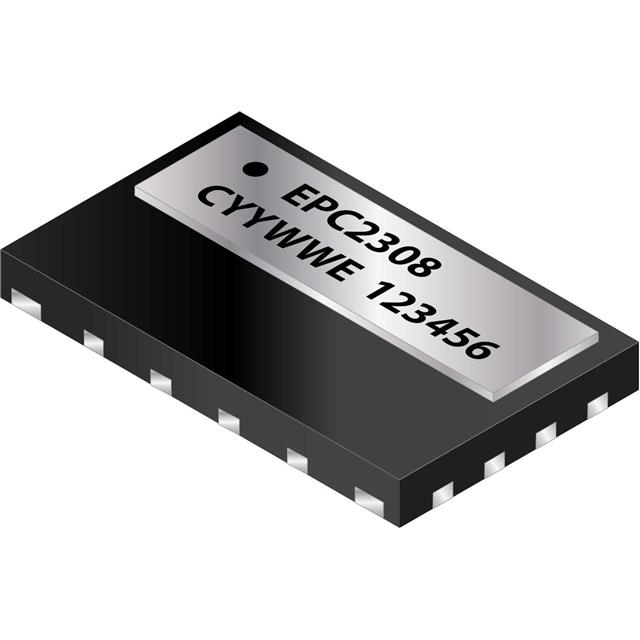

EPC2308ENGRT

EPC2308ENGRT

Part Number
EPC2308ENGRT
Manufacturer EPC
Other Part Numbers
917-EPC2308ENGRTTR-ND
917-EPC2308ENGRTCT-ND
917-EPC2308ENGRTDKR-ND
917-EPC2308ENGRTTR
917-EPC2308ENGRTCT
917-EPC2308ENGRTDKR
Description TRANS GAN 150V .006OHM 3X5PQFN
Detailed Description N-Channel 150 V 48A (Tc) Surface Mount 7-QFN (3x5)
Manufacturer Standard Lead Time 16 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer EPC
Series
eGaN®
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Package / Case 7-PowerWQFN
Mounting Type Surface Mount
Operating Temperature -40°C ~ 150°C (TJ)
Technology GaNFET (Gallium Nitride)
FET Type N-Channel
Current - Continuous Drain (Id) @ 25°C 48A (Tc)
Rds On (Max) @ Id, Vgs 6mOhm @ 15A, 5V
Vgs(th) (Max) @ Id 2.5V @ 5mA
Supplier Device Package 7-QFN (3x5)
Drive Voltage (Max Rds On, Min Rds On) 5V
Vgs (Max) +6V, -4V
Drain to Source Voltage (Vdss) 150 V
Gate Charge (Qg) (Max) @ Vgs 13.8 nC @ 5 V
Input Capacitance (Ciss) (Max) @ Vds 2103 pF @ 75 V

Documents & Media

RESOURCE TYPE LINK
Datasheets EPC2308ENGRT
Datasheets EPC RoHS & Halogen Cert
Datasheets EPC REACH

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.29.0040
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 51406

Can ship immediately.
