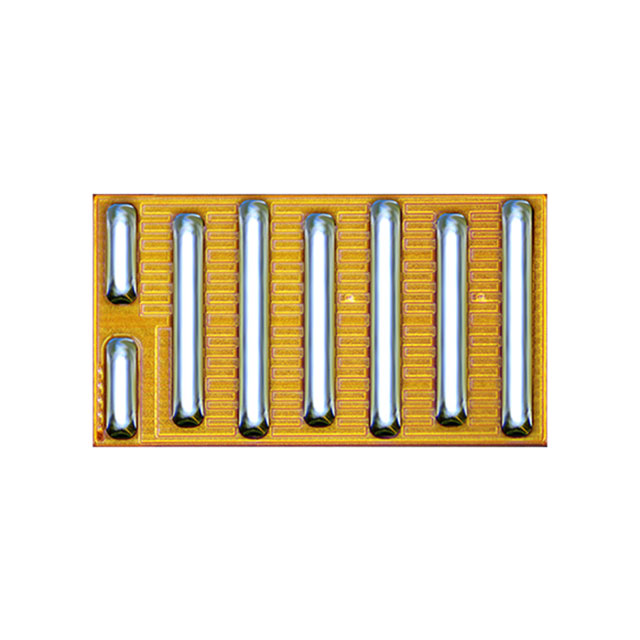

EPC2065

EPC2065

Part Number	EPC2065
Manufacturer	EPC
Other Part Numbers	917-EPC2065TR-ND 917-EPC2065CT-ND 917-EPC2065DKR-ND 917-EPC2065CT 917-EPC2065DKR 917-EPC2065TR
Description	GAN FET 80V .0036OHM 8BUMP DIE
Detailed Description	N-Channel 80 V 60A (Ta) Surface Mount Die
Manufacturer Standard Lead Time	16 weeks
Datasheet	Datasheet

Product Attributes

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		EPC
Series		eGaN®
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		Die
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 150°C (TJ)
Technology		GaNFET (Gallium Nitride)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		60A (Ta)
Rds On (Max) @ Id, Vgs		3.6mOhm @ 25A, 5V
Vgs(th) (Max) @ Id		2.5V @ 7mA
Supplier Device Package		Die
Drive Voltage (Max Rds On, Min Rds On)		5V
Vgs (Max)		+6V, -4V
Drain to Source Voltage (Vdss)		80 V
Gate Charge (Qg) (Max) @ Vgs		12.2 nC @ 5 V
Input Capacitance (Ciss) (Max) @ Vds		1449 pF @ 40 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		EPC2065
Datasheets		EPC RoHS & Halogen Cert
Datasheets		EPC REACH

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 3625

Can ship immediately.
