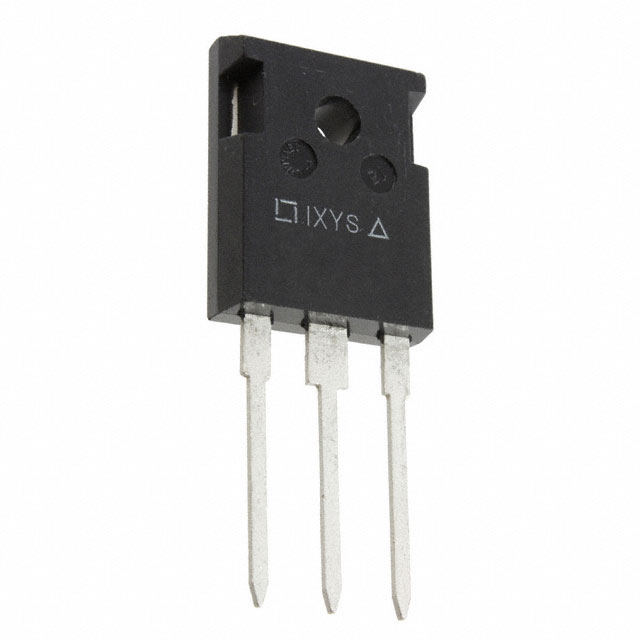

DSEC30-02A

Part Number
DSEC30-02A
Manufacturer Littelfuse / IXYS RF
Other Part Numbers
DSEC30-02A-ND
Description DIODE ARRAY GP 200V 15A TO247AD
Detailed Description Diode Array 1 Pair Common Cathode 200 V 15A Through Hole TO-247-3
Datasheet Datasheet

Product Attributes

Category
Manufacturer Littelfuse / IXYS RF
Series
HiPerFRED™
Packaging
Tube
Part Status Obsolete
Package / Case TO-247-3
Mounting Type Through Hole
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 25 ns
Technology Standard
Diode Configuration 1 Pair Common Cathode
Current - Average Rectified (Io) (per Diode) 15A
Supplier Device Package TO-247AD
Operating Temperature - Junction -55°C ~ 175°C
Voltage - DC Reverse (Vr) (Max) 200 V
Voltage - Forward (Vf) (Max) @ If 1.05 V @ 15 A
Current - Reverse Leakage @ Vr 100 µA @ 200 V

Documents & Media

RESOURCE TYPE LINK
Datasheets DSEC30-02A

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0080
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected

Obsolete

This product is no longer manufactured.
