DMP31D1UQ-7 _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	DMP31D1UQ-7
Manufacturer	Zetex Semiconductors (Diodes Inc.)
Other Part Numbers	31-DMP31D1UQ-7TR-ND 31-DMP31D1UQ-7TR
Description	MOSFET BVDSS: 25V~30V SOT23 T&R
Detailed Description	P-Channel 30 V 620mA (Ta) 460mW (Ta) Surface Mount SOT-23-3
Manufacturer Standard Lead Time	24 weeks
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Zetex Semiconductors (Diodes Inc.)
Series
Packaging		Tape & Reel (TR)
Part Status		Active

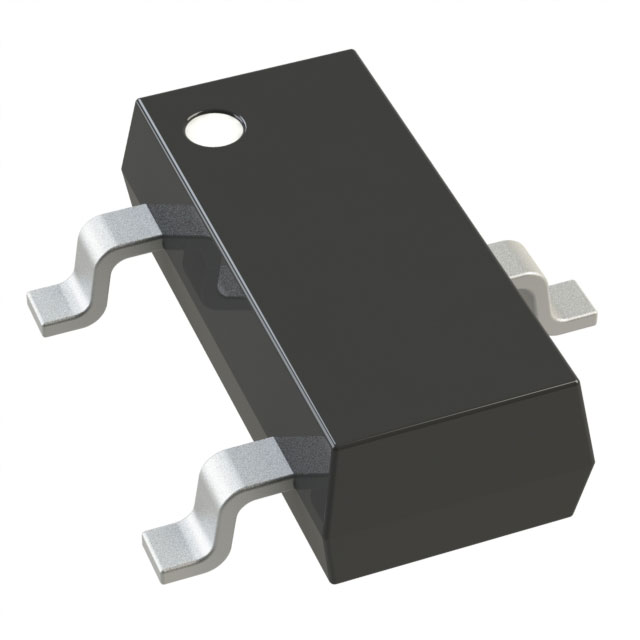

Package / Case		TO-236-3, SC-59, SOT-23-3
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		P-Channel
Current - Continuous Drain (Id) @ 25°C		620mA (Ta)
Rds On (Max) @ Id, Vgs		1Ohm @ 400mA, 4.5V
Power Dissipation (Max)		460mW (Ta)
Vgs(th) (Max) @ Id		1.1V @ 250µA
Supplier Device Package		SOT-23-3
Grade		Automotive
Drive Voltage (Max Rds On, Min Rds On)		1.8V, 4.5V
Vgs (Max)		±8V
Drain to Source Voltage (Vdss)		30 V
Gate Charge (Qg) (Max) @ Vgs		1.6 nC @ 8 V
Input Capacitance (Ciss) (Max) @ Vds		54 pF @ 15 V
Qualification		AEC-Q101

RESOURCE TYPE		LINK
Datasheets		DMP31D1UQ-7
