Part Number	DMN1003UFDE-7
Manufacturer	Zetex Semiconductors (Diodes Inc.)
Other Part Numbers	31-DMN1003UFDE-7TR-ND 31-DMN1003UFDE-7TR

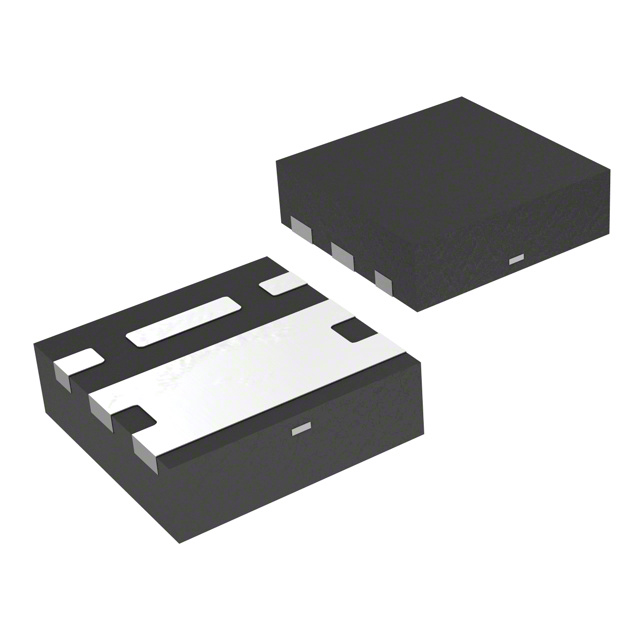

Description	MOSFET BVDSS: 8V~24V U-DFN2020-6
Detailed Description	N-Channel 12 V 22A (Ta) 800mW (Ta) Surface Mount U-DFN2020-6 (Type E)
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Zetex Semiconductors (Diodes Inc.)
Series
Packaging		Tape & Reel (TR)
Part Status		Active
Package / Case		6-PowerUDFN
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		22A (Ta)
Rds On (Max) @ Id, Vgs		3mOhm @ 15A, 4.5V
Power Dissipation (Max)		800mW (Ta)
Vgs(th) (Max) @ Id		1V @ 250µA
Supplier Device Package		U-DFN2020-6 (Type E)
Drive Voltage (Max Rds On, Min Rds On)		2.5V, 4.5V
Vgs (Max)		±8V
Drain to Source Voltage (Vdss)		12 V
Gate Charge (Qg) (Max) @ Vgs		45 nC @ 8 V
Input Capacitance (Ciss) (Max) @ Vds		2551 pF @ 6 V
