BUK7620-100A,118 _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	BUK7620-100A,118
Manufacturer	NXP Semiconductors
Other Part Numbers	2156-BUK7620-100A,118-954-ND 2156-BUK7620-100A,118-954
Description	NEXPERIA BUK7620 - TRANSISTOR >3
Detailed Description	N-Channel 100 V 63A (Tc) 200W (Tc) Surface Mount D2PAK
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		NXP Semiconductors
Series		TrenchMOS™
Packaging		Bulk
Part Status		Active

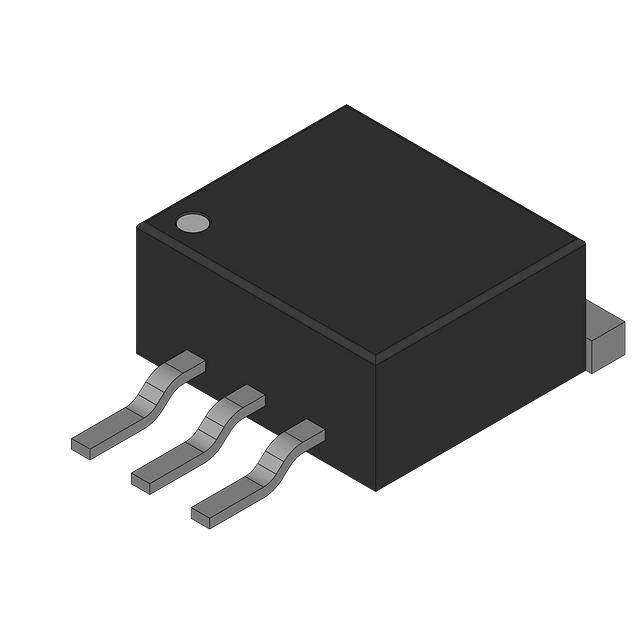

Package / Case		TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 175°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		63A (Tc)
Rds On (Max) @ Id, Vgs		20mOhm @ 25A, 10V
Power Dissipation (Max)		200W (Tc)
Vgs(th) (Max) @ Id		4V @ 1mA
Supplier Device Package		D2PAK
Grade		Automotive
Drive Voltage (Max Rds On, Min Rds On)		10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		100 V
Input Capacitance (Ciss) (Max) @ Vds		4373 pF @ 25 V
Qualification		AEC-Q101

RESOURCE TYPE		LINK
Datasheets		BUK7620-100A,118

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		0000.00.0000
Moisture Sensitivity Level (MSL)		Vendor Undefined
REACH Status		REACH Unaffected
