BSP129E6327 _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	BSP129E6327
Manufacturer	IR (Infineon Technologies)
Other Part Numbers	BSP129INTR-ND SP000011102 BSP129INCT BSP129INTR BSP129
Description	MOSFET N-CH 240V 350MA SOT223-4
Detailed Description	N-Channel 240 V 350mA (Ta) 1.8W (Ta) Surface Mount PG-SOT223-4
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		IR (Infineon Technologies)
Series		SIPMOS®
Packaging		Tape & Reel (TR)
Part Status		Obsolete

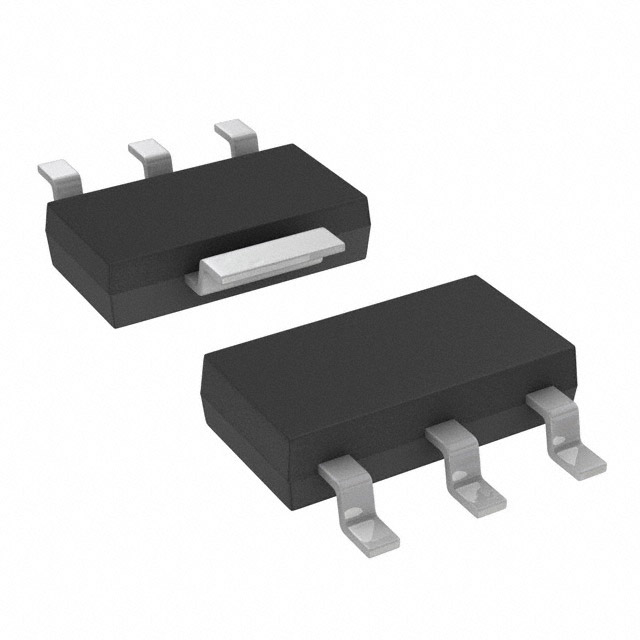

Package / Case		TO-261-4, TO-261AA
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		350mA (Ta)
Rds On (Max) @ Id, Vgs		6Ohm @ 350mA, 10V
FET Feature		Depletion Mode
Power Dissipation (Max)		1.8W (Ta)
Vgs(th) (Max) @ Id		1V @ 108µA
Supplier Device Package		PG-SOT223-4
Drive Voltage (Max Rds On, Min Rds On)		0V, 10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		240 V
Gate Charge (Qg) (Max) @ Vgs		5.7 nC @ 5 V
Input Capacitance (Ciss) (Max) @ Vds		108 pF @ 25 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS non-compliant

This product is no longer manufactured.
