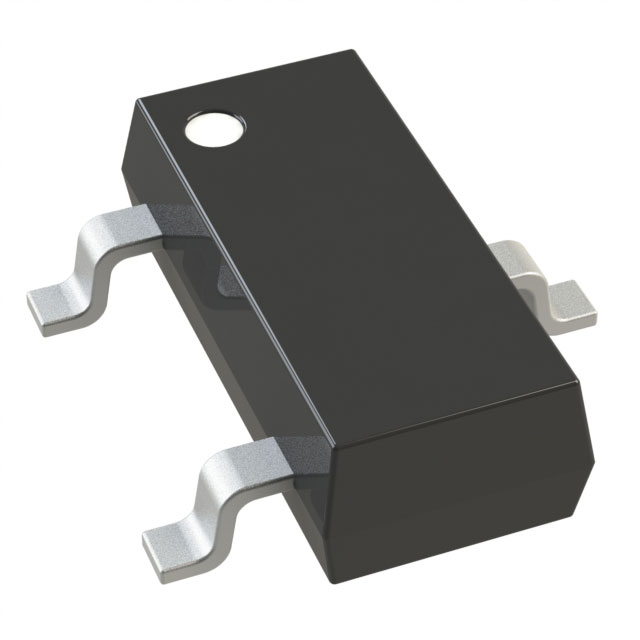

BAT64AQ-13-F

BAT64AQ-13-F

Part Number	BAT64AQ-13-F
Manufacturer	Zetex Semiconductors (Diodes Inc.)
Other Part Numbers	31-BAT64AQ-13-FTR-ND 31-BAT64AQ-13-FTR
Description	SCHOTTKY DIODE SOT23 T&R 10K
Detailed Description	Diode Array 1 Pair Common Anode 40 V 250mA Surface Mount TO-236-3, SC-59, SOT-23-3
Manufacturer Standard Lead Time	16 weeks
Datasheet	Datasheet

Product Attributes

Category		Discrete Semiconductor Products Diodes Rectifiers Diode Arrays
Manufacturer		Zetex Semiconductors (Diodes Inc.)
Series
Packaging		Tape & Reel (TR)
Part Status		Active
Package / Case		TO-236-3, SC-59, SOT-23-3
Mounting Type		Surface Mount
Speed		Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)		3 ns
Technology		Schottky
Diode Configuration		1 Pair Common Anode
Current - Average Rectified (Io) (per Diode)		250mA
Supplier Device Package		SOT-23-3
Operating Temperature - Junction		-65°C ~ 150°C
Grade		Automotive
Voltage - DC Reverse (Vr) (Max)		40 V
Voltage - Forward (Vf) (Max) @ If		750 mV @ 100 mA
Current - Reverse Leakage @ Vr		2 µA @ 40 V
Qualification		AEC-Q101

Documents & Media

RESOURCE TYPE		LINK
Datasheets		BAT64AQ-13-F

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.10.0070
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
