Part Number	AUIRFS8405
Manufacturer	International Rectifier
Other Part Numbers	2156-AUIRFS8405-IR-ND 2156-AUIRFS8405-IR INFINFAUIRFS8405
Description	MOSFET N-CH 40V 120A D2PAK
Detailed Description	N-Channel 40 V 120A (Tc) 163W (Tc) Surface Mount PG-TO263-3

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		International Rectifier
Series		HEXFET®
Packaging		Bulk
Part Status		Active

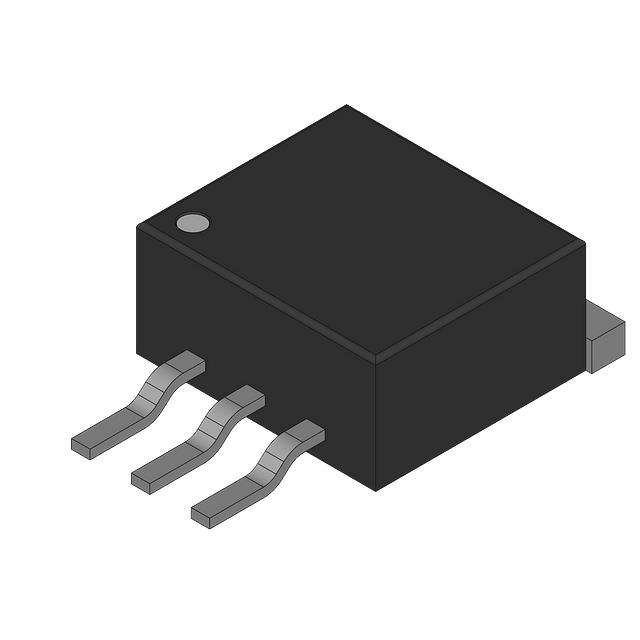

Package / Case		TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 175°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		120A (Tc)
Rds On (Max) @ Id, Vgs		2.3mOhm @ 100A, 10V
Power Dissipation (Max)		163W (Tc)
Vgs(th) (Max) @ Id		3.9V @ 100µA
Supplier Device Package		PG-TO263-3
Drive Voltage (Max Rds On, Min Rds On)		10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		40 V
Gate Charge (Qg) (Max) @ Vgs		161 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		5193 pF @ 25 V
