AUIRF1404 _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	AUIRF1404
Manufacturer	International Rectifier
Other Part Numbers	2156-AUIRF1404-ND INFINFAUIRF1404 2156-AUIRF1404
Description	AUIRF1404 - 20V-40V N-CHANNEL AU
Detailed Description	N-Channel 40 V 160A (Tc) 333W (Tc) Through Hole TO-220AB

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		International Rectifier
Series		HEXFET®
Packaging		Bulk
Part Status		Active

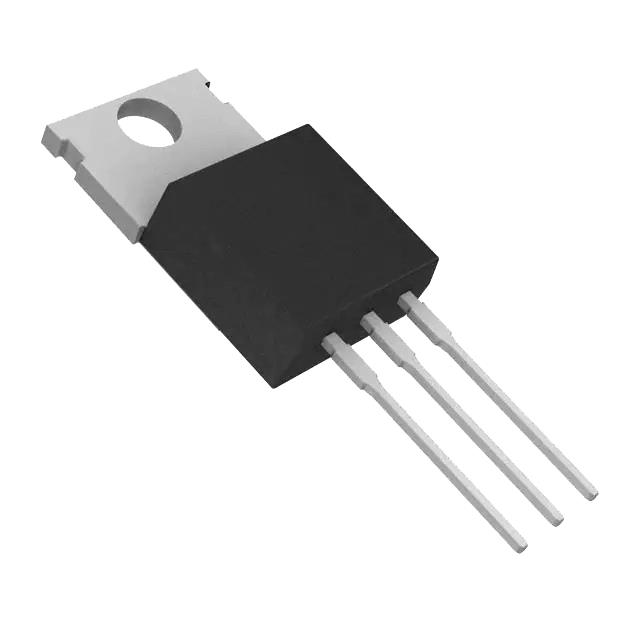

Package / Case		TO-220-3
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 175°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		160A (Tc)
Rds On (Max) @ Id, Vgs		4mOhm @ 121A, 10V
Power Dissipation (Max)		333W (Tc)
Vgs(th) (Max) @ Id		4V @ 250µA
Supplier Device Package		TO-220AB
Drive Voltage (Max Rds On, Min Rds On)		10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		40 V
Gate Charge (Qg) (Max) @ Vgs		196 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		5669 pF @ 25 V
