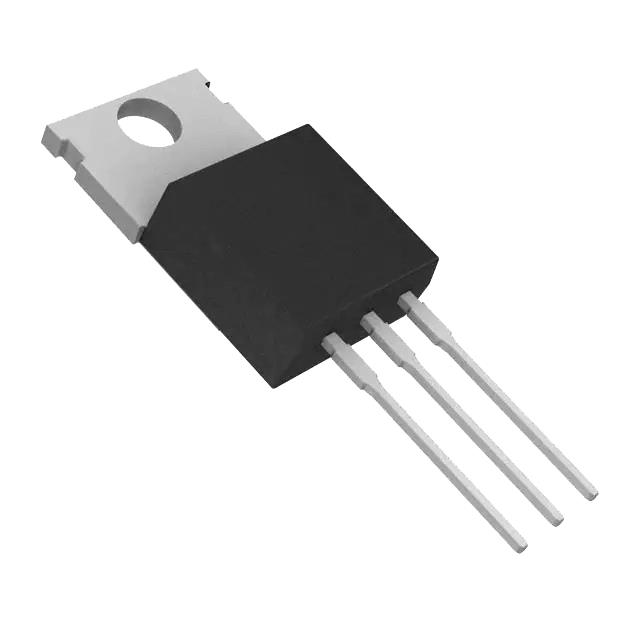

AUIRF1010EZ

AUIRF1010EZ

Part Number	AUIRF1010EZ
Manufacturer	International Rectifier
Other Part Numbers	2156-AUIRF1010EZ-ND 2156-AUIRF1010EZ INFIRFAUIRF1010EZ
Description	AUTOMOTIVE HEXFET N CHANNEL
Detailed Description	N-Channel 60 V 75A (Tc) 140W (Tc) Through Hole TO-220AB

Product Attributes

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		International Rectifier
Series		HEXFET®
Packaging		Bulk
Part Status		Active
Package / Case		TO-220-3
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 175°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		75A (Tc)
Rds On (Max) @ Id, Vgs		8.5mOhm @ 51A, 10V
Power Dissipation (Max)		140W (Tc)
Vgs(th) (Max) @ Id		4V @ 250µA
Supplier Device Package		TO-220AB
Drain to Source Voltage (Vdss)		60 V
Gate Charge (Qg) (Max) @ Vgs		86 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		2810 pF @ 25 V

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		0000.00.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		Not applicable
