AOWF11N60 _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	AOWF11N60
Manufacturer	Alpha and Omega Semiconductor, Inc.
Other Part Numbers	785-1446-5-ND 5202-AOWF11N60 785-1446-5
Description	MOSFET N-CH 600V 11A TO262F
Detailed Description	N-Channel 600 V 11A (Tc) 27.8W (Tc) Through Hole TO-262F

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Alpha and Omega Semiconductor, Inc.
Series
Packaging		Tube
Part Status		Obsolete

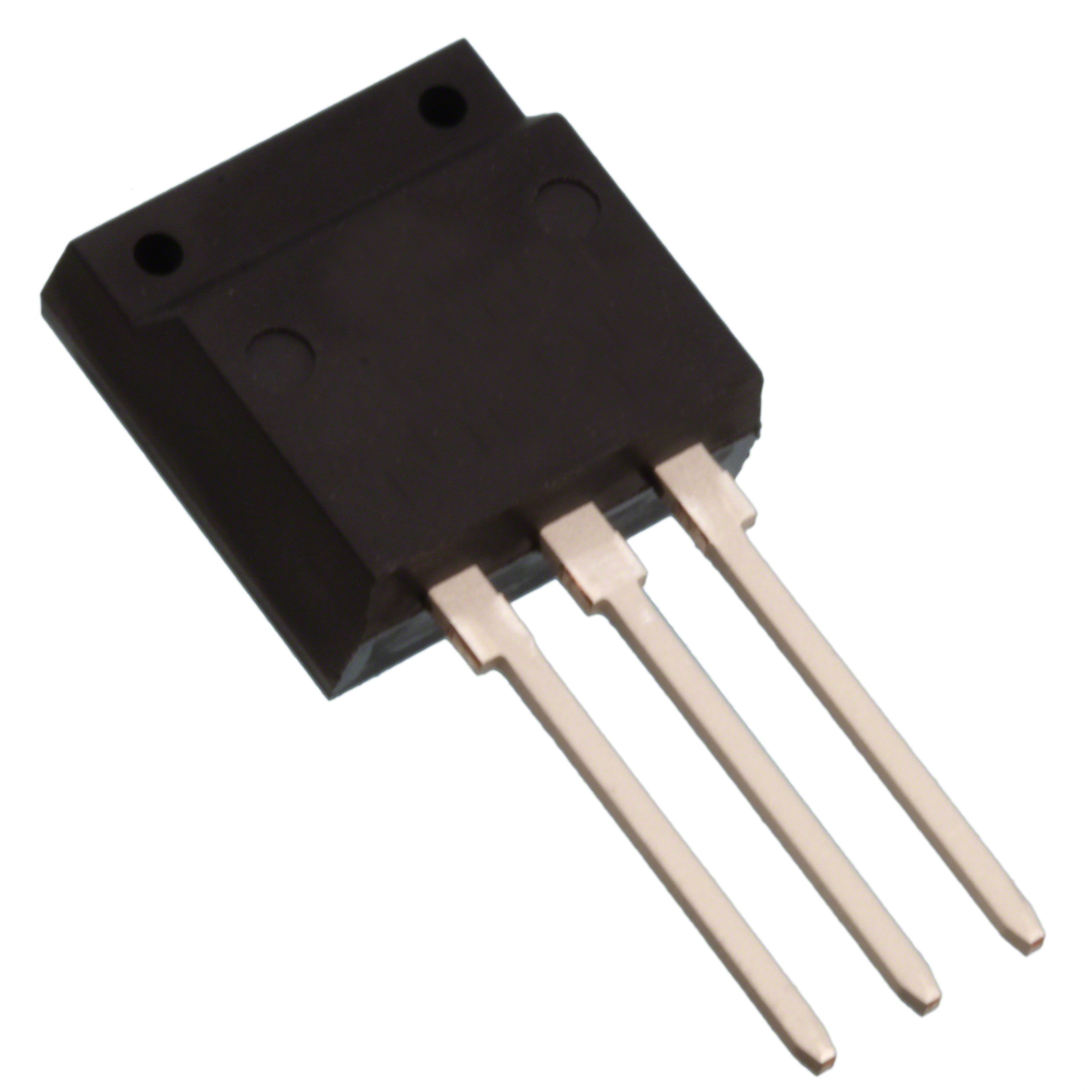

Package / Case		TO-262-3 Long Leads, I2PAK, TO-262AA
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		11A (Tc)
Rds On (Max) @ Id, Vgs		650mOhm @ 5.5A, 10V
Power Dissipation (Max)		27.8W (Tc)
Vgs(th) (Max) @ Id		4.5V @ 250µA
Supplier Device Package		TO-262F
Drive Voltage (Max Rds On, Min Rds On)		10V
Vgs (Max)		±30V
Drain to Source Voltage (Vdss)		600 V
Gate Charge (Qg) (Max) @ Vgs		37 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		1990 pF @ 25 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

This product is no longer manufactured.
