AOT3N60 _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	AOT3N60
Manufacturer	Alpha and Omega Semiconductor, Inc.
Other Part Numbers	785-1186-5-ND 785-1186-5
Description	MOSFET N-CH 600V 2.5A TO220
Detailed Description	N-Channel 600 V 2.5A (Tc) 83W (Tc) Through Hole TO-220
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Alpha and Omega Semiconductor, Inc.
Series
Packaging		Tube
Part Status		Obsolete

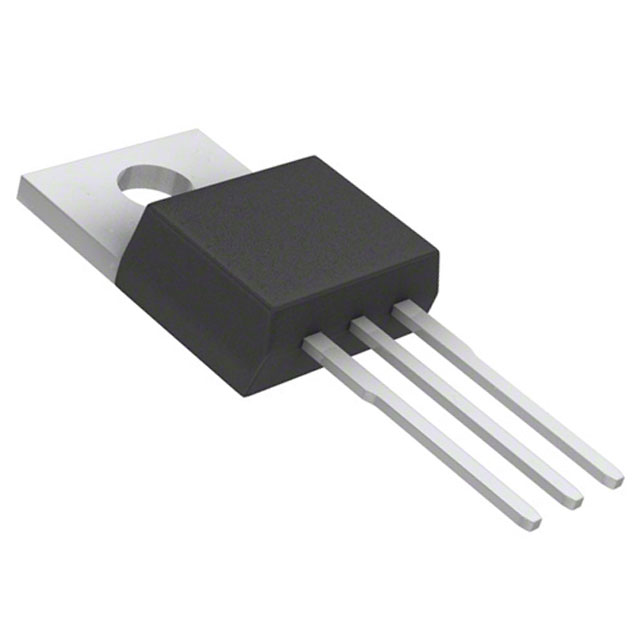

Package / Case		TO-220-3
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		2.5A (Tc)
Rds On (Max) @ Id, Vgs		3.5Ohm @ 1.25A, 10V
Power Dissipation (Max)		83W (Tc)
Vgs(th) (Max) @ Id		4.5V @ 250µA
Supplier Device Package		TO-220
Drive Voltage (Max Rds On, Min Rds On)		10V
Vgs (Max)		±30V
Drain to Source Voltage (Vdss)		600 V
Gate Charge (Qg) (Max) @ Vgs		12 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		370 pF @ 25 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected

This product is no longer manufactured.
