AOB270L _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	AOB270L
Manufacturer	Alpha and Omega Semiconductor, Inc.
Other Part Numbers	785-1472-2-ND 785-1472-1-ND 785-1472-6-ND 785-1472-1 785-1472-2 785-1472-6
Description	MOSFET N-CH 75V 21.5A/140A TO263
Detailed Description	N-Channel 75 V 21.5A (Ta), 140A (Tc) 2.1W (Ta), 500W (Tc) Surface Mount TO-263 (D2PAK)

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Alpha and Omega Semiconductor, Inc.
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

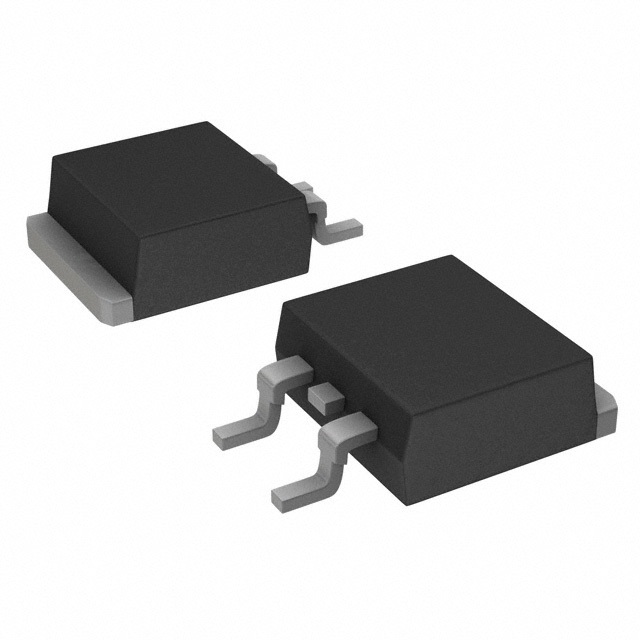

Package / Case		TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 175°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		21.5A (Ta), 140A (Tc)
Rds On (Max) @ Id, Vgs		2.3mOhm @ 20A, 10V
Power Dissipation (Max)		2.1W (Ta), 500W (Tc)
Vgs(th) (Max) @ Id		3V @ 250µA
Supplier Device Package		TO-263 (D2PAK)
Drive Voltage (Max Rds On, Min Rds On)		6V, 10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		75 V
Gate Charge (Qg) (Max) @ Vgs		215 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		10350 pF @ 37.5 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
