AO4441 _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	AO4441
Manufacturer	Alpha and Omega Semiconductor, Inc.
Other Part Numbers	785-1196-2-ND 785-1196-1-ND 785-1196-6-ND 785-1196-1 5202-AO4441TR 785-1196-2 785-1196-6
Description	MOSFET P-CH 60V 4A 8SOIC
Detailed Description	P-Channel 60 V 4A (Ta) 3.1W (Ta) Surface Mount 8-SOIC
Manufacturer Standard Lead Time	16 weeks
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Alpha and Omega Semiconductor, Inc.
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

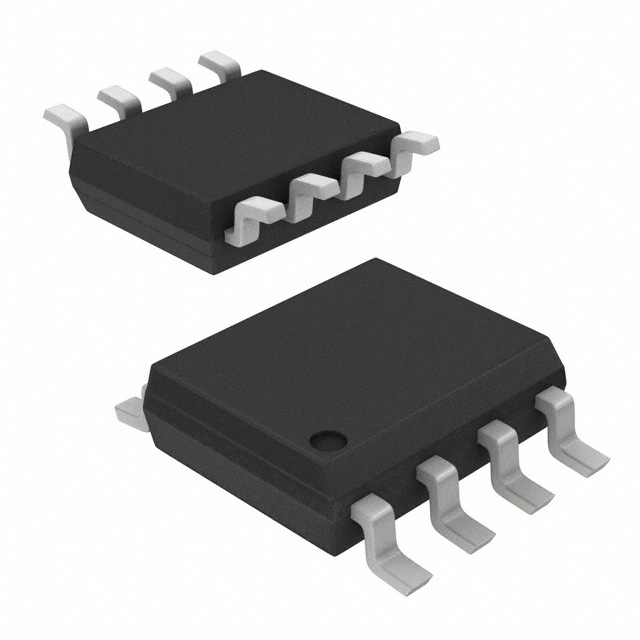

Package / Case		8-SOIC (0.154", 3.90mm Width)
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		P-Channel
Current - Continuous Drain (Id) @ 25°C		4A (Ta)
Rds On (Max) @ Id, Vgs		100mOhm @ 4A, 10V
Power Dissipation (Max)		3.1W (Ta)
Vgs(th) (Max) @ Id		3V @ 250µA
Supplier Device Package		8-SOIC
Drive Voltage (Max Rds On, Min Rds On)		4.5V, 10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		60 V
Gate Charge (Qg) (Max) @ Vgs		20 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		1120 pF @ 30 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
