2SK3746

2SK3746

Part Number	2SK3746
Manufacturer	Sanyo
Other Part Numbers	2156-2SK3746-ND 2156-2SK3746 ONSSNY2SK3746
Description	N-CHANNEL MOSFET
Detailed Description	N-Channel 1500 V 2A (Ta) 2.5W (Ta), 110W (Tc) Through Hole TO-3PB

Product Attributes

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		Sanyo
Series
Packaging		Bulk
Part Status		Active

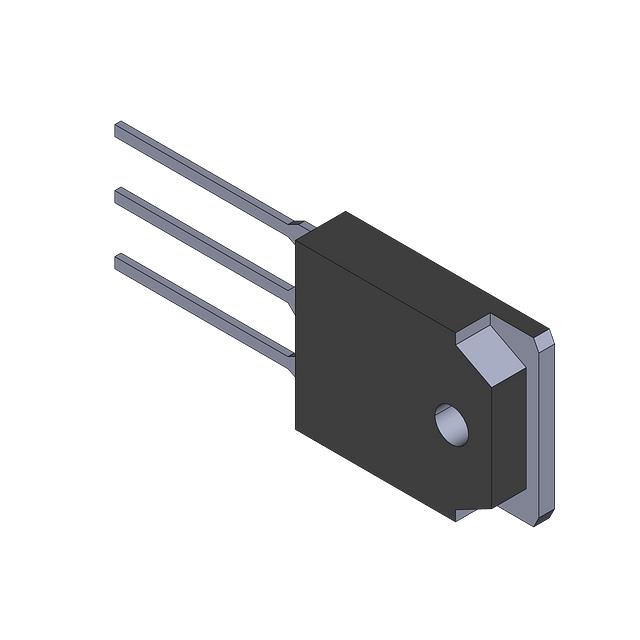

Package / Case		TO-3P-3, SC-65-3
Mounting Type		Through Hole
Operating Temperature		150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		2A (Ta)
Rds On (Max) @ Id, Vgs		13Ohm @ 1A, 10V
Power Dissipation (Max)		2.5W (Ta), 110W (Tc)
Supplier Device Package		TO-3PB
Drive Voltage (Max Rds On, Min Rds On)		10V
Vgs (Max)		±20V
Drain to Source Voltage (Vdss)		1500 V
Gate Charge (Qg) (Max) @ Vgs		37.5 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		380 pF @ 30 V

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		Not applicable
