2SK3050TL _ Single FETs, MOSFETs_FETs, MOSFETs_Transistors_Discrete Semiconductor Products

Part Number	2SK3050TL
Manufacturer	ROHM Semiconductor
Other Part Numbers	2SK3050TLTR-ND 2SK3050TLCT-ND 2SK3050TLDKR-ND 2SK3050TLCT 2SK3050TLTR 2SK3050TLDKR
Description	MOSFET N-CH 600V 2A CPT3
Detailed Description	N-Channel 600 V 2A (Ta) 20W (Tc) Surface Mount CPT3
Datasheet	Datasheet

Category		Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Manufacturer		ROHM Semiconductor
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Obsolete

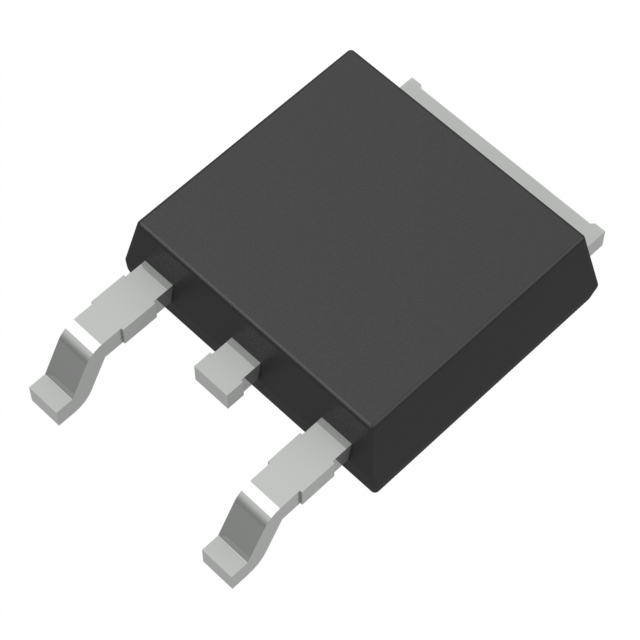

Package / Case		TO-252-3, DPAK (2 Leads + Tab), SC-63
Mounting Type		Surface Mount
Operating Temperature		150°C (TJ)
Technology		MOSFET (Metal Oxide)
FET Type		N-Channel
Current - Continuous Drain (Id) @ 25°C		2A (Ta)
Rds On (Max) @ Id, Vgs		5.5Ohm @ 1A, 10V
Power Dissipation (Max)		20W (Tc)
Vgs(th) (Max) @ Id		4V @ 1mA
Supplier Device Package		CPT3
Drive Voltage (Max Rds On, Min Rds On)		10V
Vgs (Max)		±30V
Drain to Source Voltage (Vdss)		600 V
Gate Charge (Qg) (Max) @ Vgs		25.6 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds		280 pF @ 10 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0095
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		ROHS3 Compliant

This product is no longer manufactured.
