Wireless Charging Coils

Mfr Part #	Quantity	Price	Series	Package	Product Status	Tolerance	Inductance	Size / Dimension	Current Rating (Amps)	Function	Type	Operating Temperature	DC Resistance (DCR)	Q @ Freq	Frequency - Self Resonant	Current - Saturation (Isat)
AWCCA-38R32H09-C01-B RX 1 COIL 1 LAYER 11.1UH 2.1A Abracon Datasheet	0 In Stock	10,080 : $23,284.80 Box	AWCCA-38R32	Box	Not For New Designs	±10%	11.1µH	1.54" L x 1.30" W x 0.05" H (39.0mm x 33.0mm x 1.3mm)	2.1A	Receiver	1 Coil, 1 Layer	-25°C ~ 85°C	260mOhm	22 @ 100kHz	11MHz	12A
AWCCA-20R20H08-C01-B RECEIVER COIL, 12UH Abracon Datasheet	0 In Stock	30,000 : $106,800.00 Box	AWCCA	Box	Not For New Designs	±10%	12µH	0.79" L x 0.79" W x 0.03" H (20.0mm x 20.0mm x 0.8mm)	-	Receiver	1 Coil, 1 Layer	-25°C ~ 85°C	290mOhm	20 @ 100kHz	-	-

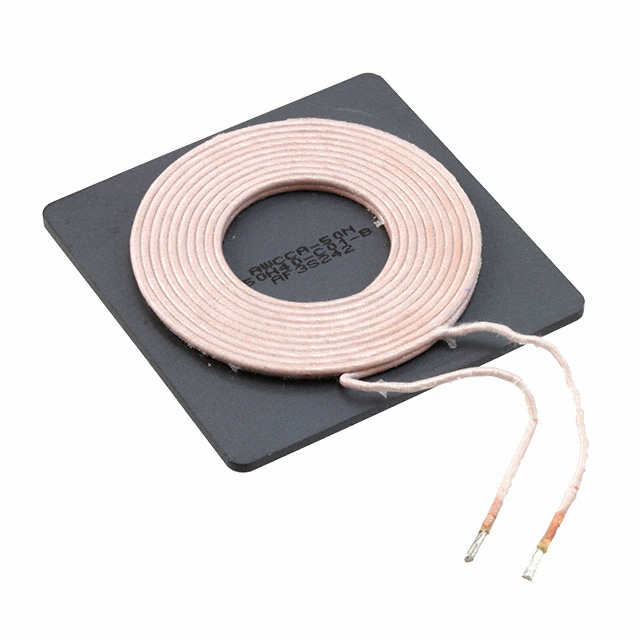

AWCCA-50N50H50-C01-B RX TX 1 COIL 1 LAYER 24UH 5.7A Abracon Datasheet	0 In Stock	10,000 : $59,800.00 Box	AWCCA-50N50	Box	Not For New Designs	±10%	24µH	1.96" L x 1.96" W x 0.19" H (50.0mm x 50.0mm x 5.0mm)	5.7A	Receiver, Transmitter	1 Coil, 1 Layer	-25°C ~ 85°C	72mOhm	163 @ 100kHz	2.8MHz	30A
AWCCA-50N50H40-C02-B RX TX 1 COIL 1 LAYER 6.3UH 11.1A Abracon Datasheet	0 In Stock	10,000 : $47,700.00 Box	AWCCA-50N50	Box	Not For New Designs	±10%	6.3µH	1.96" L x 1.96" W x 0.15" H (50.0mm x 50.0mm x 4.0mm)	11.1A	Receiver, Transmitter	1 Coil, 1 Layer	-25°C ~ 85°C	19mOhm	72 @ 100kHz	5.7MHz	40A
AWCCA-20N20H20-C01-B TX OR RX COIL, 1 COIL 6.3UH Abracon Datasheet	0 In Stock	30,000 : $108,300.00 Box	AWCCA	Box	Not For New Designs	±10%	6.3µH	0.79" Dia x 0.08" H (20.0mm x 2.0mm)	-	Receiver, Transmitter	1 Coil, 1 Layer	-25°C ~ 85°C	150mOhm	34 @ 100kHz	-	-
AWCCA-15N15H06-C01-B TX OR RX COIL, 1 COIL, 14.9UH Abracon Datasheet	0 In Stock	30,000 : $106,800.00 Box	AWCCA	Box	Not For New Designs	±10%	14.9µH	0.59" Dia x 0.02" H (15.0mm x 0.6mm)	-	Receiver, Transmitter	1 Coil, 1 Layer	-25°C ~ 85°C	1Ohm	8.5 @ 100kHz	-	-
AWCCA-50N50H40-C01-B RX TX 1 COIL 1 LAYER 24UH 5.7A Abracon Datasheet	0 In Stock	10,000 : $47,700.00 Box	AWCCA-50N50	Box	Not For New Designs	±10%	24µH	1.96" L x 1.96" W x 0.15" H (50.0mm x 50.0mm x 4.0mm)	5.7A	Receiver, Transmitter	1 Coil, 1 Layer	-25°C ~ 85°C	72mOhm	165 @ 100kHz	2.9MHz	27A
AWCCA-50N50H35-C01-B RX TX 1 COIL 1 LAYER 24UH 5.4A Abracon Datasheet	0 In Stock	10,000 : $44,700.00 Box	AWCCA-50N50	Box	Not For New Designs	±10%	24µH	1.96" L x 1.96" W x 0.13 " H (50.0mm x 50.0mm x 3.5mm)	5.4A	Receiver, Transmitter	1 Coil, 1 Layer	-25°C ~ 85°C	72mOhm	160 @ 100kHz	3MHz	21A
AWCCA-50N50H50-C02-B RX TX 1 COIL 1 LAYER 6.3UH 10.6A Abracon Datasheet	0 In Stock	10,000 : $56,400.00 Box	AWCCA-50N50	Box	Not For New Designs	±10%	6.3µH	1.96" L x 1.96" W x 0.19" H (50.0mm x 50.0mm x 5.0mm)	10.6A	Receiver, Transmitter	1 Coil, 1 Layer	-25°C ~ 85°C	19mOhm	75 @ 100kHz	5.7MHz	40A
AWCCA-50N50H35-C02-B RX TX 1 COIL 1 LAYER 6.3UH 10.6A Abracon Datasheet	0 In Stock	10,000 : $44,700.00 Box	AWCCA-50N50	Box	Not For New Designs	±10%	6.3µH	1.96" L x 1.96" W x 0.13 " H (50.0mm x 50.0mm x 3.5mm)	10.6A	Receiver, Transmitter	1 Coil, 1 Layer	-25°C ~ 85°C	19mOhm	72 @ 100kHz	6.4MHz	36A
