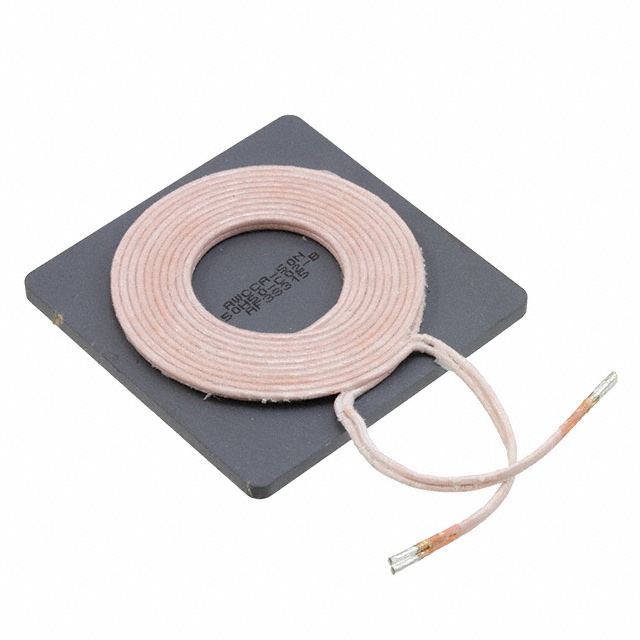

AWCCA-50N50H50-C02-B

AWCCA-50N50H50-C02-B

Part Number	AWCCA-50N50H50-C02-B
Manufacturer	Abracon
Other Part Numbers	535-12507-ND 535-12507
Description	RX TX 1 COIL 1 LAYER 6.3UH 10.6A
Detailed Description	1 Coil, 1 Layer 6.3µH Wireless Charging Coil Receiver, Transmitter 19mOhm

Product Attributes

Category		Inductors, Coils, Chokes Wireless Charging Coils
Manufacturer		Abracon
Series		AWCCA-50N50
Packaging		Box
Part Status		Not For New Designs
Tolerance		±10%
Inductance		6.3µH
Size / Dimension		1.96" L x 1.96" W x 0.19" H (50.0mm x 50.0mm x 5.0mm)
Current Rating (Amps)		10.6A
Function		Receiver, Transmitter
Type		1 Coil, 1 Layer
Operating Temperature		-25°C ~ 85°C
DC Resistance (DCR)		19mOhm
Q @ Freq		75 @ 100kHz
Frequency - Self Resonant		5.7MHz
Current - Saturation (Isat)		40A

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Available To Order

Not recommended for new design, minimums may apply.
