Wire to Board

Mfr Part #	Quantity	Price	Series	Package	Product Status	Features	Color	Mounting Type	Wire Gauge	Pitch	Operating Temperature	Mating Orientation	Positions Per Level	Housing Material	Contact Material - Plating	Clamp Material - Plating	Screw Material - Plating	Torque - Screw	Screw Thread	Wire Termination	Current	Number of Levels	Voltage

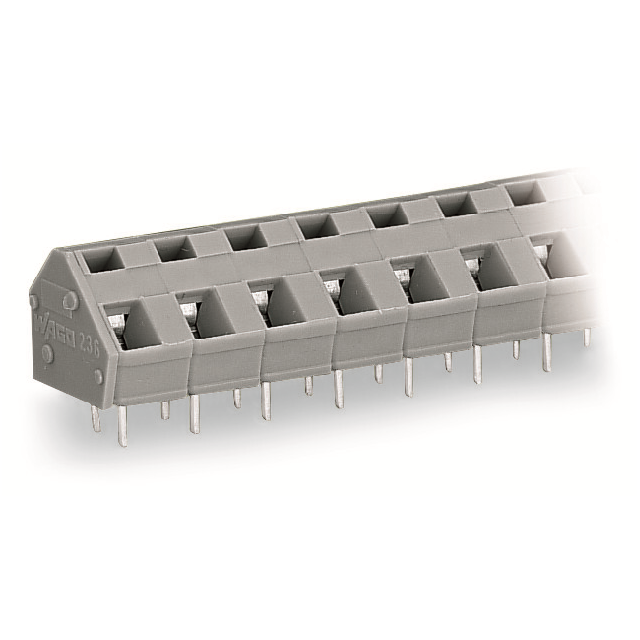

236-502/000-009/999-950 PCB TERMINAL BLOCK; 2.5 MM; PIN WAGO Datasheet	0 In Stock	1 : $4.14 Box	236	Box	Active	-	Gray	Through Hole	12-28 AWG	0.300" (7.62mm)	-60°C ~ 105°C	45° (135°) Angle with Board	2	Polyamide (PA66), Nylon 6/6	Electrolytic Copper - Tin Plated	Steel - Nickel Plated	-	-	-	Screwless - Spring Cage, Tension Clamp	15 A	1	300 V

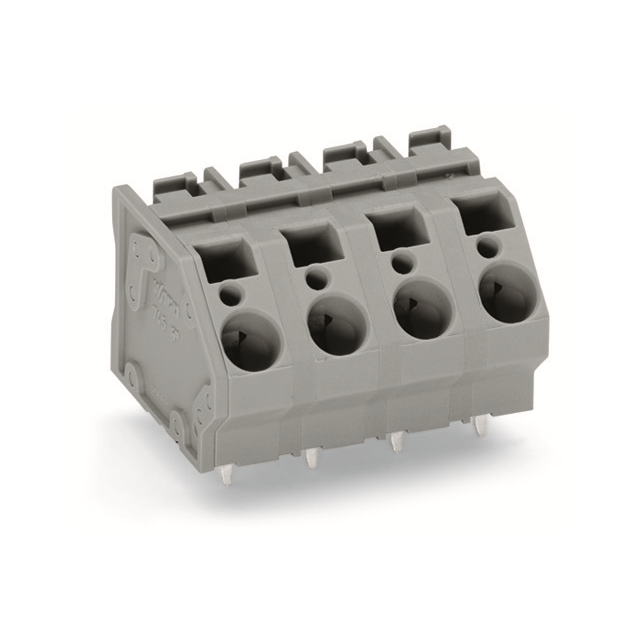

745-1359 PCB TERMINAL BLOCK; 6 MM; PIN SP WAGO Datasheet	0 In Stock	1 : $11.74 Box	745	Box	Active	-	Gray	Through Hole	10-24 AWG	0.394" (10.00mm)	-	45° (135°) Angle with Board	9	-	-	-	-	-	-	Screwless - Spring Cage, Tension Clamp	10 A	1	300 V

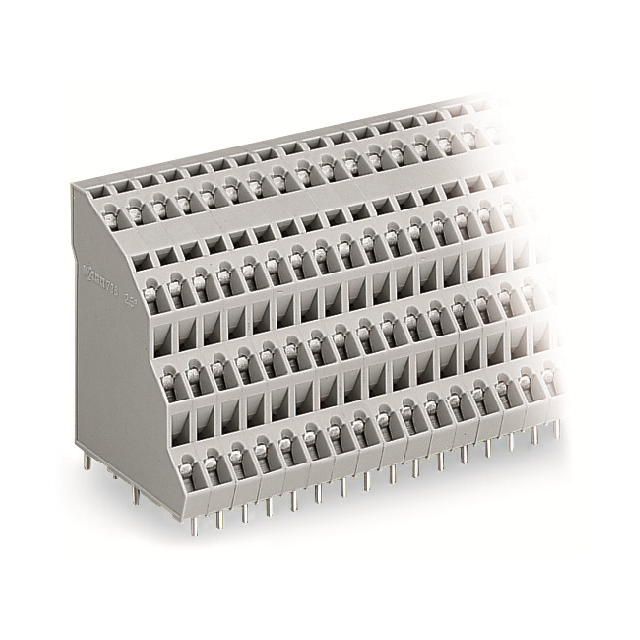

738-216 QUADRUPLE-DECK PCB TERMINAL BLOC WAGO Datasheet	0 In Stock	1 : $25.85 Box	738	Box	Active	-	Gray	Through Hole	12-28 AWG	0.197" (5.00mm)	-60°C ~ 105°C	45° (135°) Angle with Board	16	Polyamide (PA66), Nylon 6/6	Electrolytic Copper - Tin Plated	Steel - Nickel Plated	-	-	-	Screwless - Spring Cage, Tension Clamp	10 A	4	300 V
231-612/017-000 PCB TERMINAL BLOCK; 2.5 MM; PIN WAGO Datasheet	0 In Stock	1 : $10.65 Box	231	Box	Active	Mounting Flange	Gray	Through Hole	14-28 AWG	0.197" (5.00mm)	-60°C ~ 105°C	Horizontal with Board	2	Polyamide (PA66), Nylon 6/6	Electrolytic Copper - Tin Plated	Steel - Nickel Plated	-	-	-	Screw - Rising Cage Clamp	15 A	1	300 V
804-105 PCB TERMINAL BLOCK; PUSH-BUTTON; WAGO Datasheet	0 In Stock	45 : $129.15 Box	804	Box	Active	Push Button Actuated	Gray	Through Hole	12-20 AWG	0.197" (5.00mm)	-60°C ~ 105°C	Horizontal with Board	5	Polyamide (PA66), Nylon 6/6	Electrolytic Copper - Tin Plated	Steel - Nickel Plated	-	-	-	Screwless - Push Button Clamp	10 A	1	300 V
2606-1362 PCB TERMINAL BLOCK; LEVER; 6 MM; WAGO Datasheet	0 In Stock	1 : $21.41 Box	2606	Box	Active	Lever Actuated	Gray	Through Hole	8-24 AWG	0.492" (12.50mm)	-60°C ~ 105°C	Horizontal with Board	12	Polyamide (PA66), Nylon 6/6	Electrolytic Copper - Tin Plated	Steel - Nickel Plated	-	-	-	Screwless - Spring Cage, Tension Clamp	42 A	1	600 V

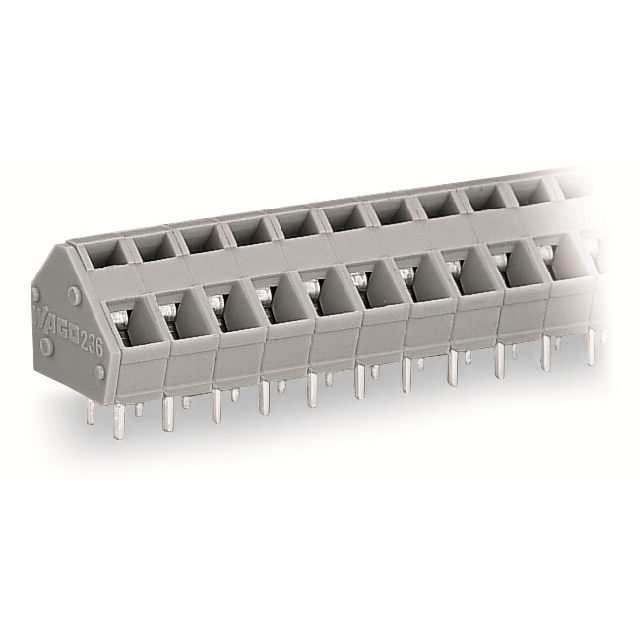

236-405/334-604 THR PCB TERMINAL BLOCK; 2.5 MM; WAGO Datasheet	0 In Stock	1 : $4.59 Box	236	Box	Active	-	Black	Through Hole	12-28 AWG	0.200" (5.08mm)	-60°C ~ 115°C	45° (135°) Angle with Board	5	Polyamide (PA46), Nylon 4/6	Electrolytic Copper - Tin Plated	Steel - Nickel Plated	-	-	-	Screwless - Spring Cage, Tension Clamp	15 A	1	300 V

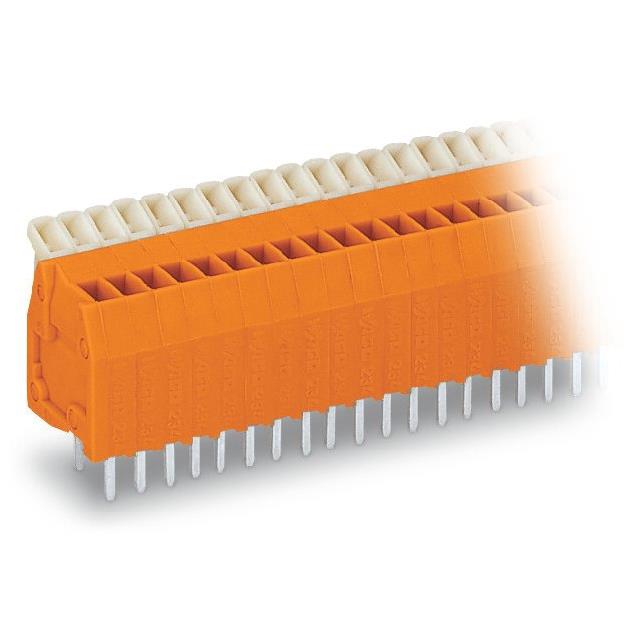

234-509 PCB TERMINAL BLOCK; PUSH-BUTTON; WAGO Datasheet	0 In Stock	1 : $6.83 Box	234	Box	Active	Push Button Actuated	Orange	Through Hole	20-28 AWG	0.100" (2.54mm)	-	Vertical with Board	9	-	-	-	-	-	-	Screwless - Push Button Clamp	4 A	1	150 V

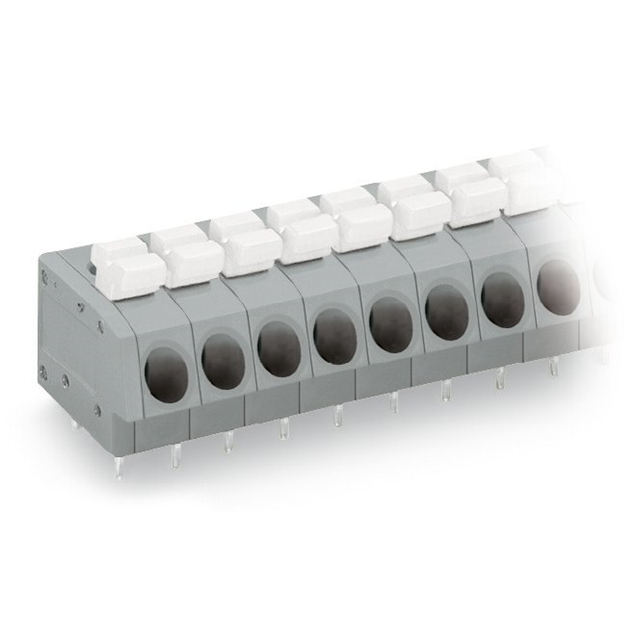

235-406/331-000 PCB TERMINAL BLOCK; PUSH-BUTTON; WAGO Datasheet	0 In Stock	35 : $85.75 Box	235	Box	Active	Push Button Actuated	Gray	Through Hole	14-20 AWG	0.200" (5.08mm)	-60°C ~ 105°C	Horizontal with Board	6	Polyamide (PA66), Nylon 6/6	Electrolytic Copper - Tin Plated	Steel - Nickel Plated	-	-	-	Screwless - Push Button Clamp	10 A	1	300 V

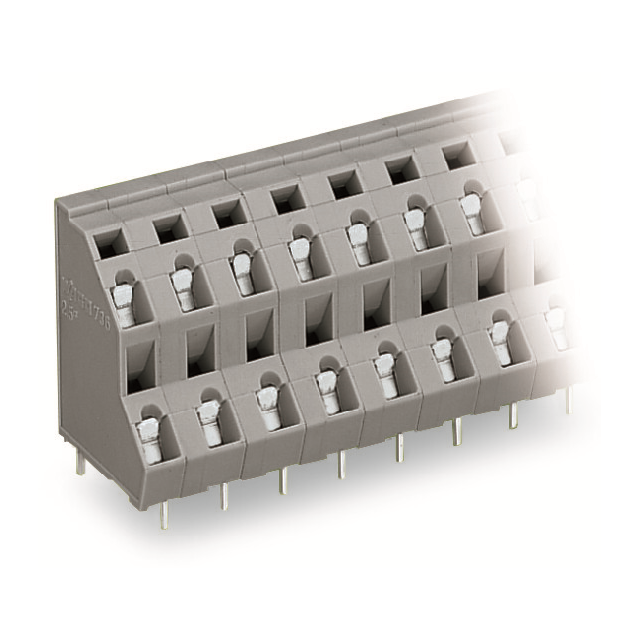

736-556 DOUBLE-DECK PCB TERMINAL BLOCK; WAGO Datasheet	0 In Stock	1 : $8.58 Box	736	Box	Active	-	Gray	Through Hole	12-28 AWG	0.295" (7.50mm)	-60°C ~ 105°C	45° (135°) Angle with Board	6	Polyamide (PA66), Nylon 6/6	Electrolytic Copper - Tin Plated	Steel - Nickel Plated	-	-	-	Screwless - Spring Cage, Tension Clamp	10 A	2	300 V
