736-660

736-660

Part Number	736-660
Manufacturer	WAGO
Other Part Numbers	2946-736-660-ND 2946-736-660 736660 7360660 0736-660 2943-736-660-ND 2943-736-660 0736-0660 0736660

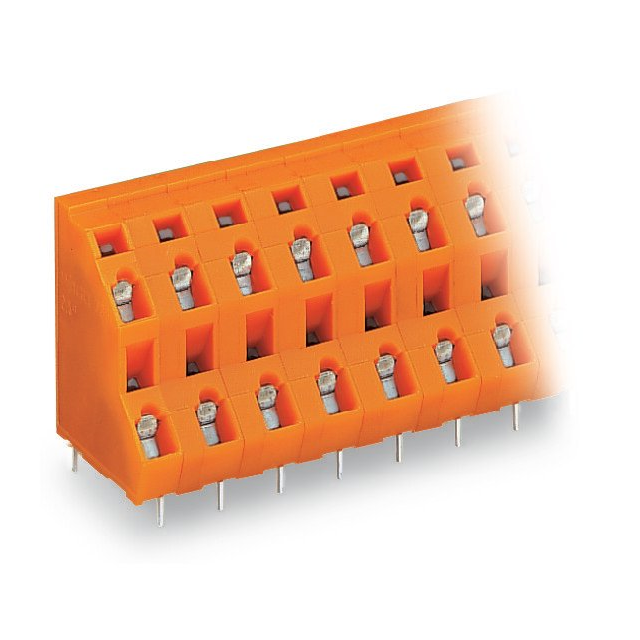

Description	DOUBLE-DECK PCB TERMINAL BLOCK;
Detailed Description	10 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.300" (7.62mm) Through Hole
Manufacturer Standard Lead Time	12 weeks

Product Attributes

Category		Connectors, Interconnects Terminal Blocks Wire to Board
Manufacturer		WAGO
Series		736
Packaging		Box
Part Status		Active
Color		Orange
Mounting Type		Through Hole
Wire Gauge		12-28 AWG
Pitch		0.300" (7.62mm)
Operating Temperature		-60°C ~ 105°C
Mating Orientation		45° (135°) Angle with Board
Positions Per Level		10
Housing Material		Polyamide (PA66), Nylon 6/6
Contact Material - Plating		Electrolytic Copper - Tin Plated
Clamp Material - Plating		Steel - Nickel Plated
Wire Termination		Screwless - Spring Cage, Tension Clamp
Current		10 A
Number of Levels		2
Voltage		300 V

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		Not Applicable
RoHS Status		ROHS3 Compliant
