Transistor, Photovoltaic Output Optoisolators

Product Status

Active

Obsolete

Discontinued

Last Time Buy

Not For New Designs

Output Type

Darlington

Darlington with Base

MOSFET

Photovoltaic

Photovoltaic, Linearized

Transistor

Transistor, Linearized

Transistor with Base

Mounting Type

DIN Rail

Surface Mount

Surface Mount, Butt Joint

Through Hole

Input Type

AC, DC

Grade

Automotive

Number of Channels

Qualification

AEC-Q100

AEC-Q101

AEC-Q102

Mfr Part #	Quantity	Price	Package	Product Status	Package / Case	Output Type	Mounting Type	Operating Temperature	Voltage - Forward (Vf) (Typ)	Input Type	Current - Output / Channel	Voltage - Isolation	Current Transfer Ratio (Min)	Vce Saturation (Max)	Current Transfer Ratio (Max)	Supplier Device Package	Voltage - Output (Max)	Turn On / Turn Off Time (Typ)	Rise / Fall Time (Typ)	Grade	Number of Channels	Current - DC Forward (If) (Max)	Qualification
JANTX4N49A OPTOISO 1KV TRANS W/BASE TO78-6 TT Electronics / Optek Technology Datasheet	3 In Stock	1 : $35.81 100 : $3,248.00 250 : $7,792.50 Bulk	Bulk	Active	TO-78-6 Metal Can	Transistor with Base	Through Hole	-55°C ~ 125°C	1.5V (Max)	DC	50mA	1000VDC	200% @ 1mA	300mV	1000% @ 1mA	TO-78-6	40V	-	20µs, 20µs (Max)	-	1	40 mA	-

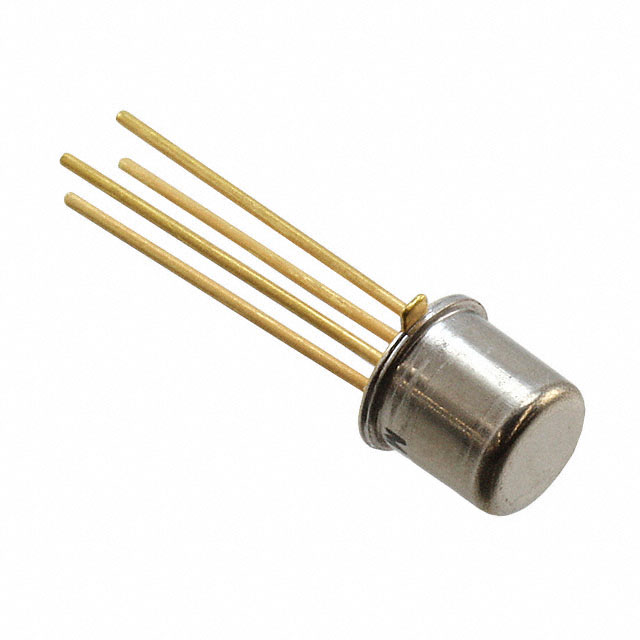

3N262 OPTOISOLATOR 1KV TRANS TO72-4 TT Electronics / Optek Technology Datasheet	99 In Stock	1 : $24.48 100 : $2,204.00 250 : $5,302.50 Bulk	Bulk	Active	TO-206AF, TO-72-4 Metal Can	Transistor	Through Hole	-55°C ~ 125°C	1.5V (Max)	DC	30mA	1000VDC	10% @ 1mA	300mV	50% @ 1mA	TO-72-4	30V	-	20µs, 10µs (Max)	-	1	40 mA	-

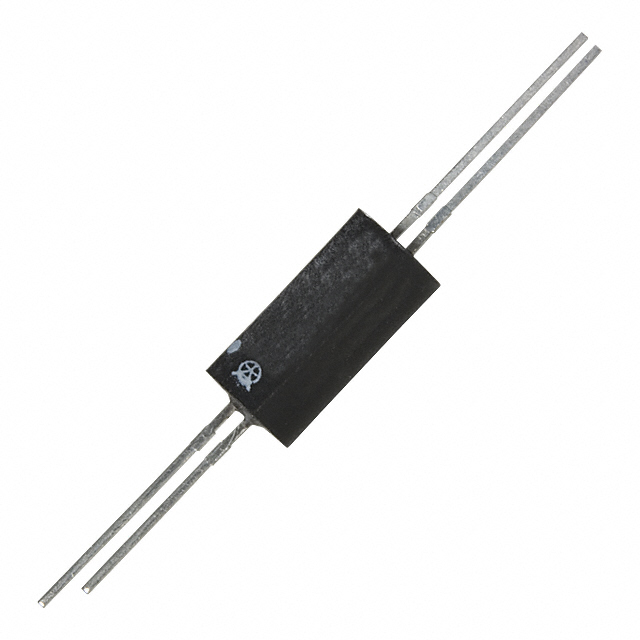

OPI1264C OPTOISOLATOR 15KV TRANS AXIAL TT Electronics / Optek Technology Datasheet	6,692 In Stock	1 : $3.22 100 : $296.00 250 : $710.00 500 : $1,370.00 1,000 : $2,640.00 2,500 : $6,475.00 Bulk	Bulk	Active	Axial - 4 Leads	Transistor	Through Hole	-40°C ~ 85°C	1.6V (Max)	DC	-	15000VDC	100% @ 10mA	400mV	-	Axial	30V	-	-	-	1	40 mA	-
OPI110A OPTOISOLATOR 15KV TRANS AXIAL TT Electronics / Optek Technology Datasheet	448 In Stock	1 : $2.99 100 : $274.00 250 : $655.00 500 : $1,265.00 1,000 : $2,450.00 2,500 : $6,050.00 Bulk	Bulk	Active	Axial, Can - 4 Leads	Transistor	Through Hole	-40°C ~ 85°C	1.6V (Max)	DC	-	15000VDC	25% @ 10mA	400mV	-	Axial	30V	-	-	-	1	40 mA	-

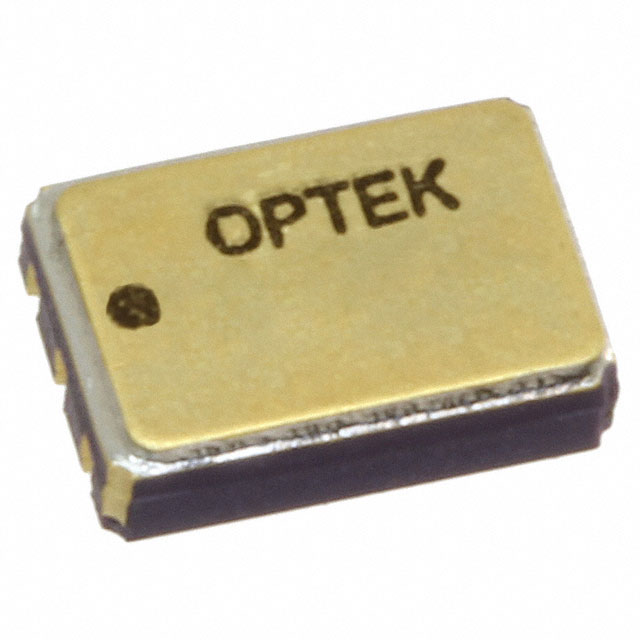

4N49U OPTOISO 1KV TRANS W/BASE 6LCC TT Electronics / Optek Technology Datasheet	65 In Stock	1 : $24.57 100 : $2,268.00 250 : $5,455.00 Bulk	Bulk	Active	6-SMD, No Lead	Transistor with Base	Surface Mount	-55°C ~ 125°C	1.5V	DC	50mA	1000Vrms	200% @ 2mA	300mV	-	6-LCC (6.22x4.32)	35V	-	20µs, 20µs	-	1	40 mA	-
OPI1264A OPTOISOLATOR 15KV TRANS AXIAL TT Electronics / Optek Technology Datasheet	2,891 In Stock	1 : $3.22 100 : $296.00 250 : $710.00 500 : $1,370.00 1,000 : $2,640.00 2,500 : $6,475.00 Bulk	Bulk	Active	Axial - 4 Leads	Transistor	Through Hole	-40°C ~ 85°C	1.6V (Max)	DC	-	15000VDC	25% @ 10mA	400mV	-	Axial	30V	-	-	-	1	40 mA	-
3C92C OPTOISOLATOR 1KV TRANS TO72-4 TT Electronics / Optek Technology Datasheet	271 In Stock	1 : $22.87 100 : $2,060.00 250 : $4,955.00 Bulk	Bulk	Active	TO-206AF, TO-72-4 Metal Can	Transistor	Through Hole	-55°C ~ 125°C	1.2V (Max)	DC	30mA	1000VDC	30% @ 10mA	400mV	200% @ 10mA	TO-72-4	50V	9µs, 6µs (Max)	-	-	1	50 mA	-
4N49UTX OPTOISO 1KV TRANS W/BASE 6LCC TT Electronics / Optek Technology Datasheet	120 In Stock	1 : $39.88 100 : $3,647.00 250 : $8,767.50 Bulk	Bulk	Active	6-SMD, No Lead	Transistor with Base	Surface Mount	-55°C ~ 125°C	1.5V (Max)	DC	-	1000VDC	200% @ 2mA	300mV	-	6-LCC (6.22x4.32)	45V	-	20µs, 20µs	-	1	40 mA	-
OPI1264B OPTOISOLATOR 15KV TRANS AXIAL TT Electronics / Optek Technology Datasheet	5,448 In Stock	1 : $3.22 100 : $296.00 250 : $710.00 500 : $1,370.00 1,000 : $2,630.00 2,500 : $6,475.00 Bulk	Bulk	Active	Axial - 4 Leads	Transistor	Through Hole	-40°C ~ 85°C	1.6V (Max)	DC	-	15000VDC	50% @ 10mA	400mV	125% @ 10mA	Axial	30V	-	-	-	1	40 mA	-
3C91C OPTOISOLATOR 1KV TRANS TO72-4 TT Electronics / Optek Technology Datasheet	228 In Stock	1 : $21.11 100 : $1,904.00 250 : $4,575.00 Bulk	Bulk	Active	TO-206AF, TO-72-4 Metal Can	Transistor	Through Hole	-55°C ~ 125°C	1.2V (Max)	DC	30mA	1000VDC	30% @ 10mA	400mV	200% @ 10mA	TO-72-4	50V	9µs, 6µs (Max)	-	-	1	50 mA	-
