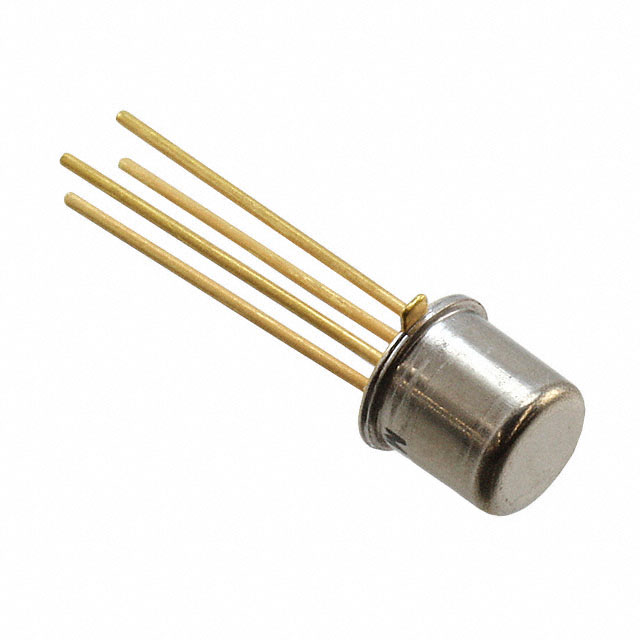

3C91C _ Transistor, Photovoltaic Output Optoisolators_Optoisolators_Isolators

Part Number	3C91C
Manufacturer	TT Electronics / Optek Technology
Other Part Numbers	365-1893-ND 365-1893
Description	OPTOISOLATOR 1KV TRANS TO72-4
Detailed Description	Optoisolator Transistor Output 1000VDC 1 Channel TO-72-4
Manufacturer Standard Lead Time	30 weeks

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		TT Electronics / Optek Technology
Series
Packaging		Bulk
Part Status		Active
Package / Case		TO-206AF, TO-72-4 Metal Can
Output Type		Transistor
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 125°C
Voltage - Forward (Vf) (Typ)		1.2V (Max)
Input Type		DC
Current - Output / Channel		30mA
Voltage - Isolation		1000VDC
Current Transfer Ratio (Min)		30% @ 10mA
Vce Saturation (Max)		400mV
Current Transfer Ratio (Max)		200% @ 10mA
Supplier Device Package		TO-72-4
Voltage - Output (Max)		50V
Turn On / Turn Off Time (Typ)		9µs, 6µs (Max)
Number of Channels		1
Current - DC Forward (If) (Max)		50 mA

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
