Single Zener Diodes

Packaging

Bag

Box

Bulk

Cut Tape (CT)

Strip

Tape & Box (TB)

Tape & Reel (TR)

Tray

Tube

Product Status

Active

Obsolete

Discontinued

Last Time Buy

Not For New Designs

Mounting Type

Chassis, Stud Mount

Chassis Mount

Stud Mount

Surface Mount

Surface Mount, Wettable Flank

Through Hole

Grade

Automotive

Military

Mfr Part #	Quantity	Price	Package	Product Status	Tolerance	Package / Case	Mounting Type	Operating Temperature	Voltage - Zener (Nom) (Vz)	Impedance (Max) (Zzt)	Supplier Device Package	Grade	Power - Max	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Qualification
CLL4746A BK PBFREE DIODE ZENER 18V 1W MELF Central Semiconductor Datasheet	0 In Stock	7,200 : $792.00 Bulk	Bulk	Active	±5%	DO-213AB, MELF	Surface Mount	-65°C ~ 200°C	18 V	20 Ohms	MELF	-	1 W	1.2 V @ 200 mA	5 µA @ 13.7 V	-

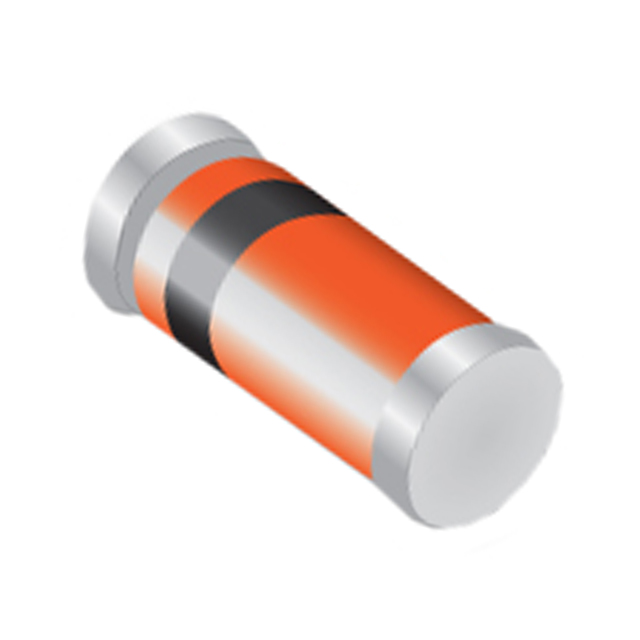

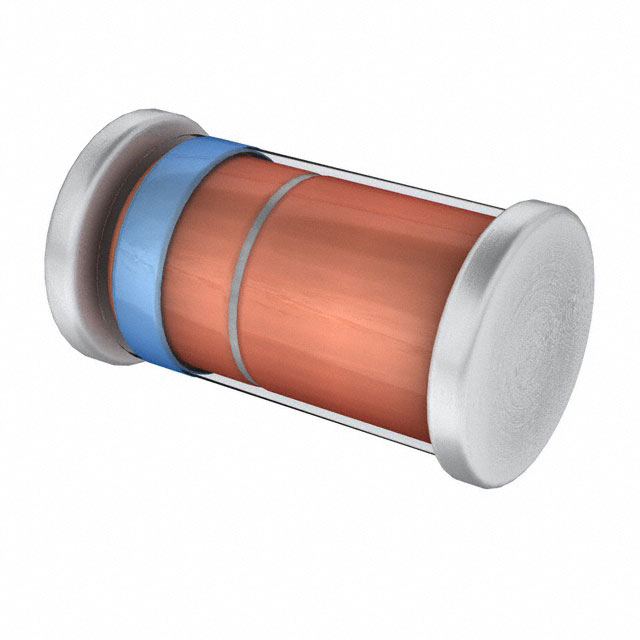

CLL5240B BK PBFREE DIODE ZENER 10V 500MW SOD80 Central Semiconductor Datasheet	0 In Stock	16,000 : $800.00 Bulk	Bulk	Active	±5%	DO-213AC, MINI-MELF, SOD-80	Surface Mount	-65°C ~ 200°C	10 V	17 Ohms	SOD-80	-	500 mW	1.25 V @ 200 mA	3 µA @ 8 V	-

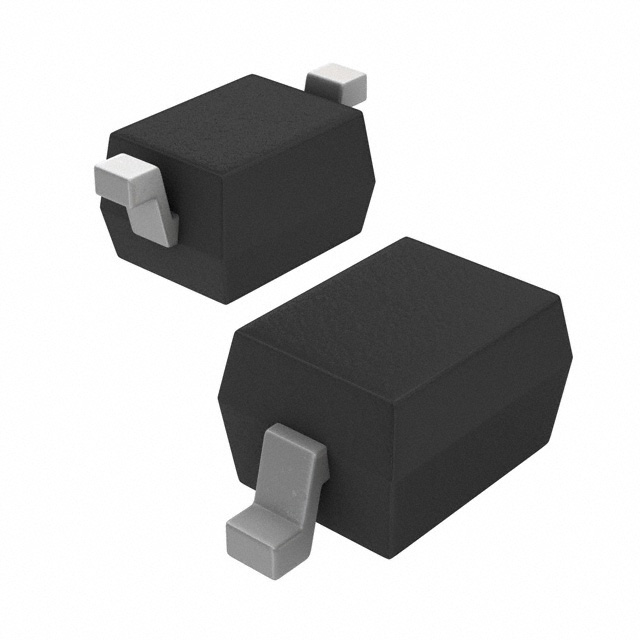

CMDZ5240B BK PBFREE DIODE ZENER 10V 250MW SOD323 Central Semiconductor Datasheet	0 In Stock	15,000 : $900.00 Bulk	Bulk	Active	±5%	SC-76, SOD-323	Surface Mount	-65°C ~ 150°C	10 V	17 Ohms	SOD-323	-	250 mW	900 mV @ 10 mA	3 µA @ 8 V	-
CMDZ5241B BK PBFREE DIODE ZENER 11V 250MW SOD323 Central Semiconductor Datasheet	0 In Stock	15,000 : $900.00 Bulk	Bulk	Active	±5%	SC-76, SOD-323	Surface Mount	-65°C ~ 150°C	11 V	22 Ohms	SOD-323	-	250 mW	900 mV @ 10 mA	2 µA @ 8.4 V	-

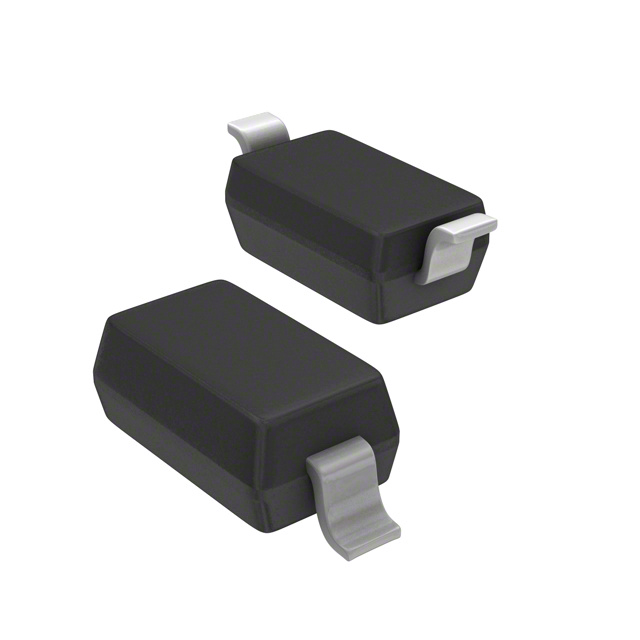

CMHZ5245B BK PBFREE DIODE ZENER 15V 500MW SOD123 Central Semiconductor Datasheet	0 In Stock	10,500 : $840.00 Bulk	Bulk	Active	±5%	SOD-123	Surface Mount	150°C	15 V	16 Ohms	SOD-123	-	500 mW	900 mV @ 10 mA	100 nA @ 11 V	-
CMDZ5250B BK PBFREE DIODE ZENER 20V 250MW SOD323 Central Semiconductor Datasheet	0 In Stock	5,000 : $1,250.00 Bulk	Bulk	Active	±5%	SC-76, SOD-323	Surface Mount	-65°C ~ 150°C	20 V	25 Ohms	SOD-323	-	250 mW	900 mV @ 10 mA	100 nA @ 15 V	-
CMHZ5242B BK PBFREE DIODE ZENER 12V 500MW SOD123 Central Semiconductor Datasheet	0 In Stock	3,500 : $980.00 Bulk	Bulk	Active	±5%	SOD-123	Surface Mount	150°C	12 V	30 Ohms	SOD-123	-	500 mW	900 mV @ 10 mA	1 µA @ 9.1 V	-

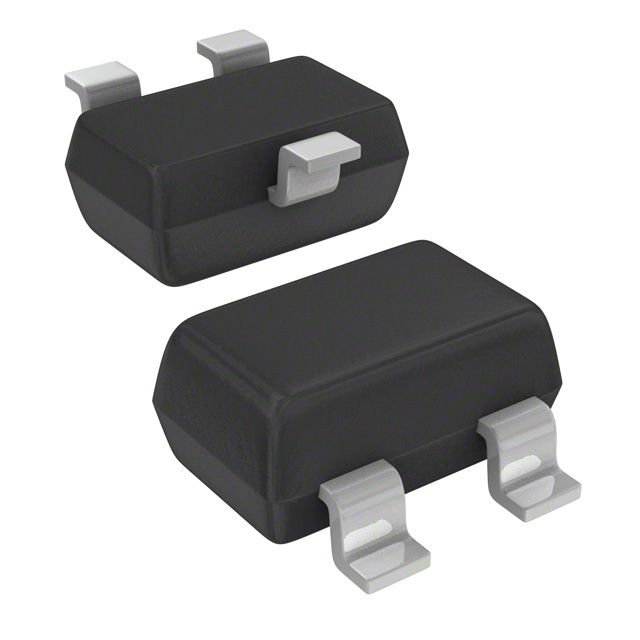

CMPZ5229B BK PBFREE DIODE ZENER 4.3V 350MW SOT23 Central Semiconductor Datasheet	0 In Stock	14,000 : $980.00 Bulk	Bulk	Active	±5%	TO-236-3, SC-59, SOT-23-3	Surface Mount	-65°C ~ 150°C	4.3 V	22 Ohms	SOT-23	-	350 mW	900 mV @ 10 mA	5 µA @ 1 V	-
CMPZ5252B BK PBFREE DIODE ZENER 24V 350MW SOT23 Central Semiconductor Datasheet	0 In Stock	14,000 : $980.00 Bulk	Bulk	Active	±5%	TO-236-3, SC-59, SOT-23-3	Surface Mount	-65°C ~ 150°C	24 V	33 Ohms	SOT-23	-	350 mW	900 mV @ 10 mA	100 nA @ 18 V	-
CMPZ5259B BK PBFREE DIODE ZENER 39V 350MW SOT23 Central Semiconductor Datasheet	0 In Stock	14,000 : $980.00 Bulk	Bulk	Active	±5%	TO-236-3, SC-59, SOT-23-3	Surface Mount	-65°C ~ 150°C	39 V	80 Ohms	SOT-23	-	350 mW	900 mV @ 10 mA	100 nA @ 30 V	-
