CMPZ5259B BK PBFREE

CMPZ5259B BK PBFREE

Part Number	CMPZ5259B BK PBFREE
Manufacturer	Central Semiconductor
Other Part Numbers	1514-CMPZ5259BBKPBFREE-ND 1514-CMPZ5259BBKPBFREE CMPZ5259B BK-ND CMPZ5259BBK CMPZ5259BBK-ND CMPZ5259B BK
Description	DIODE ZENER 39V 350MW SOT23
Detailed Description	Zener Diode 39 V 350 mW ±5% Surface Mount SOT-23
Manufacturer Standard Lead Time	32 weeks

Product Attributes

Category		Discrete Semiconductor Products Diodes Zener Single Zener Diodes
Manufacturer		Central Semiconductor
Series
Packaging		Bulk
Part Status		Active
Tolerance		±5%

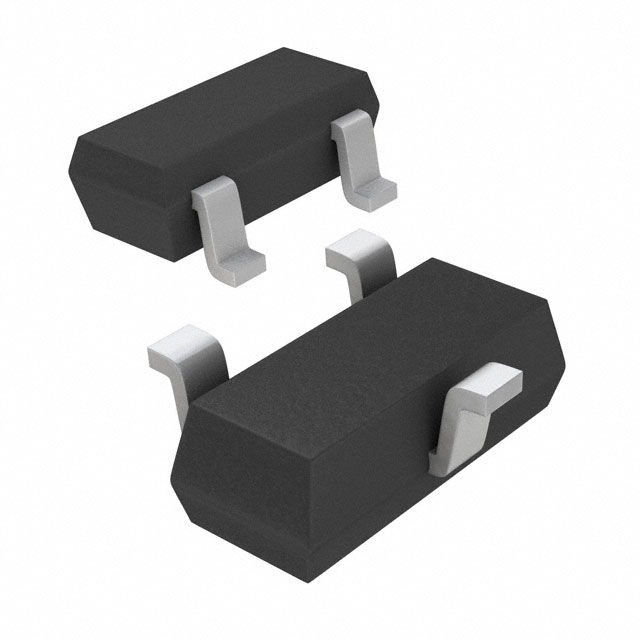

Package / Case		TO-236-3, SC-59, SOT-23-3
Mounting Type		Surface Mount
Operating Temperature		-65°C ~ 150°C
Voltage - Zener (Nom) (Vz)		39 V
Impedance (Max) (Zzt)		80 Ohms
Supplier Device Package		SOT-23
Power - Max		350 mW
Voltage - Forward (Vf) (Max) @ If		900 mV @ 10 mA
Current - Reverse Leakage @ Vr		100 nA @ 30 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		CMPZ5259B BK PBFREE
Datasheets		RoHS Cert

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.10.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
