Pushbutton Switches

Mfr Part #	Quantity	Price	Series	Package	Product Status	Features	Current Rating (Amps)	Mounting Type	Circuit	Type	Switch Function	Operating Temperature	Termination Style	Illumination Type, Color	Illumination Voltage (Nominal)	Actuator Type	Ingress Protection	Panel Cutout Dimensions	Color - Actuator/Cap	Mechanical Life	Electrical Life	Actuator Marking	Voltage Rating - AC	Voltage Rating - DC

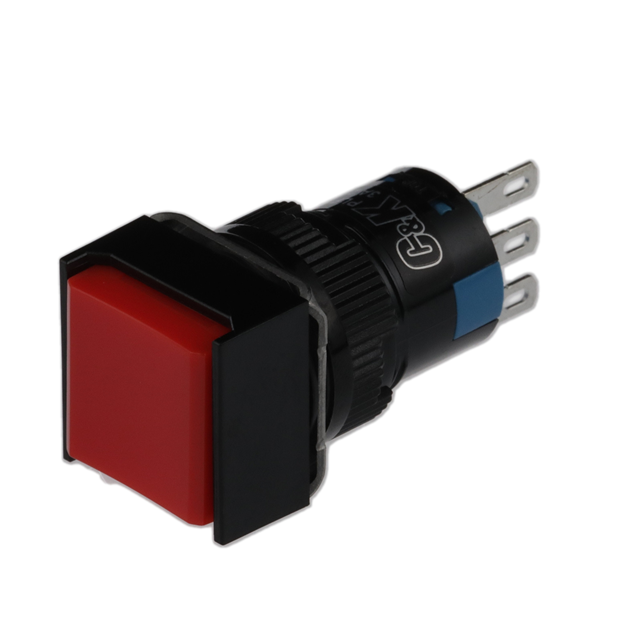

PLP16-C1SQ3-SA4 MOMENTARY, SQUARE, IP40, NON-ILL Littelfuse / C&K Datasheet	277 In Stock	1 : $12.63 10 : $114.10 25 : $271.50 60 : $618.60 120 : $1,194.00 240 : $2,241.60 480 : $4,099.20 960 : $7,248.00 Tray	PLP16	Tray	Active	-	3A (AC), 1A (DC)	Panel Mount, Front	SPDT	Standard	On-Mom	-25°C ~ 55°C	Solder Lug	-	-	Square, Button	IP40	Circular - 16.20mm Dia	Red	-	-	No Marking	250 V	30 V

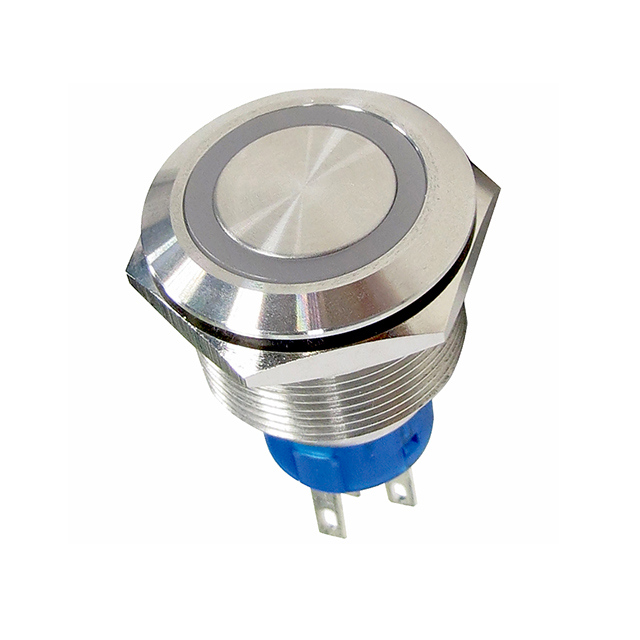

ATP22-SL3-724-B0SE-03Q SWITCH ANTI-VANDAL 22MM SEALED S Littelfuse / C&K Datasheet	120 In Stock	1 : $36.00 20 : $655.40 40 : $1,166.00 100 : $2,800.00 260 : $6,786.00 Box	ATP22	Box	Active	-	3A (AC/DC)	Panel Mount, Front	SPDT	Anti-Vandal, Illuminated	On-On	-20°C ~ 55°C	Solder, Quick Connect - 0.110" (2.8mm)	LED, Blue	24 VDC	Round, Button, Flush	IP67 - Dust Tight, Waterproof	Circular - 22.20mm Dia	Silver	-	-	No Marking	250 V	28 V

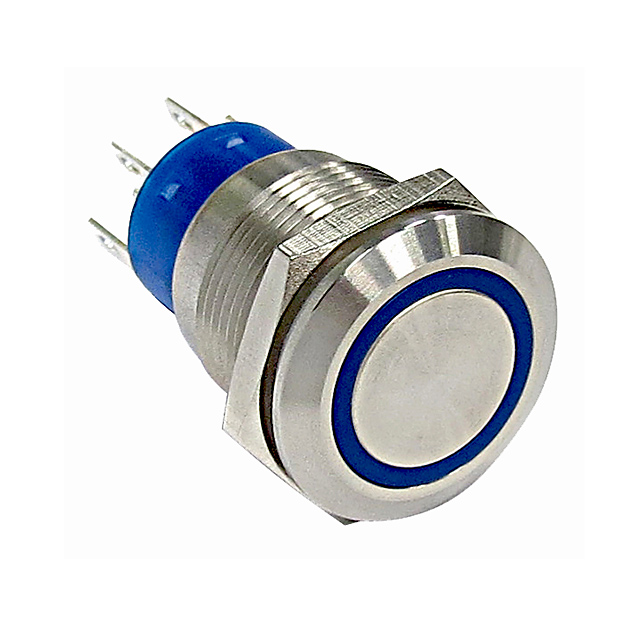

ATP19-SL3-624-B0DA-03Q SWITCH ANTI-VANDAL 19MM SEALED S Littelfuse / C&K Datasheet	357 In Stock	1 : $21.04 10 : $196.00 Tray	ATP19	Tray	Active	-	3A (AC/DC)	Panel Mount, Front	DPDT	Anti-Vandal, Illuminated	On-Mom	-20°C ~ 55°C	Solder, Quick Connect - 0.110" (2.8mm)	LED, Green	24 VDC	Round, Button, Flush	IP67 - Dust Tight, Waterproof	Circular - 19.20mm Dia	Silver	-	-	No Marking	250 V	28 V

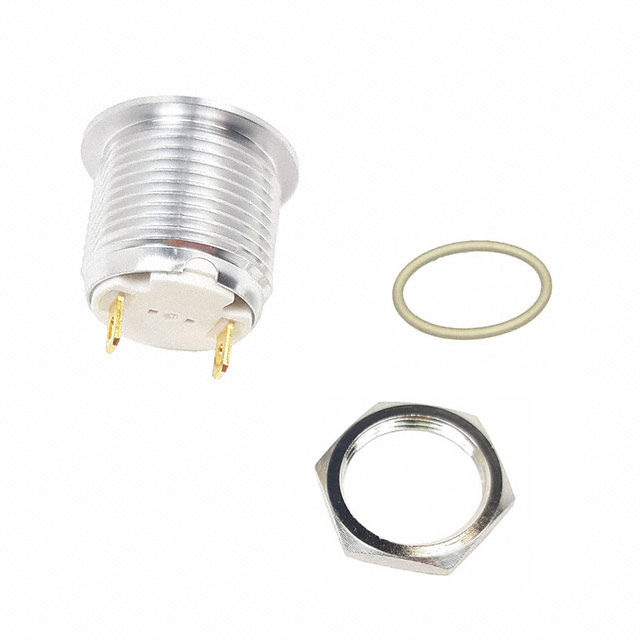

ATP16-DL1-000-B4SA-04G SWITCH ANTIVANDAL 16MM DOME RING Littelfuse / C&K Datasheet	1,850 In Stock	1 : $20.42 10 : $185.50 25 : $442.75 50 : $838.50 100 : $1,615.00 250 : $3,777.50 450 : $5,805.00 Tray	ATP16	Tray	Active	-	2A (DC)	Panel Mount, Front	SPST-NO	Anti-Vandal	Off-Mom	-20°C ~ 70°C	Solder Lug	-	-	Round, Button, Domed	IP67 - Dust Tight, Waterproof	Circular - 16.00mm Dia	Silver	-	-	No Marking	-	36 V

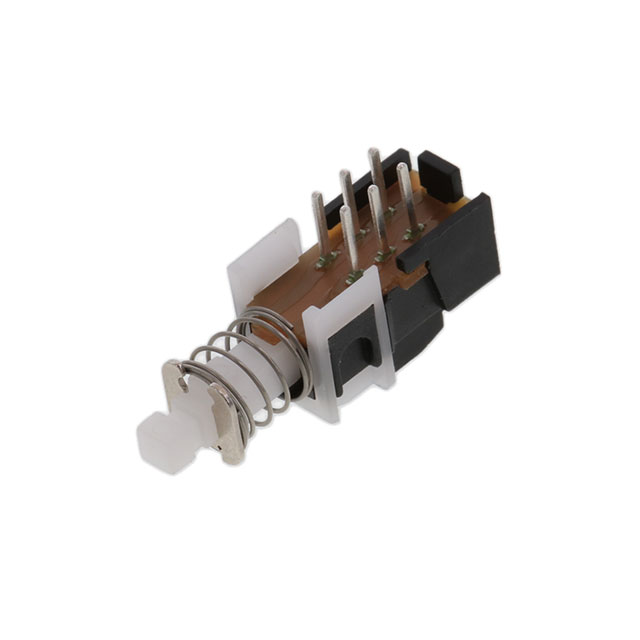

PHB2UOATS1A PUSHBUTTON Littelfuse / C&K Datasheet	1,430 In Stock	1 : $1.12 10 : $10.00 25 : $23.75 50 : $45.00 100 : $86.00 250 : $205.00 500 : $395.00 Bulk	PHB	Bulk	Active	Epoxy Sealed Terminals	1A (DC)	Through Hole, Right Angle	DPDT	Standard	On-Mom	-10°C ~ 60°C	PC Pin	-	-	Plunger for Cap	-	-	White	-	-	No Marking	-	15 V

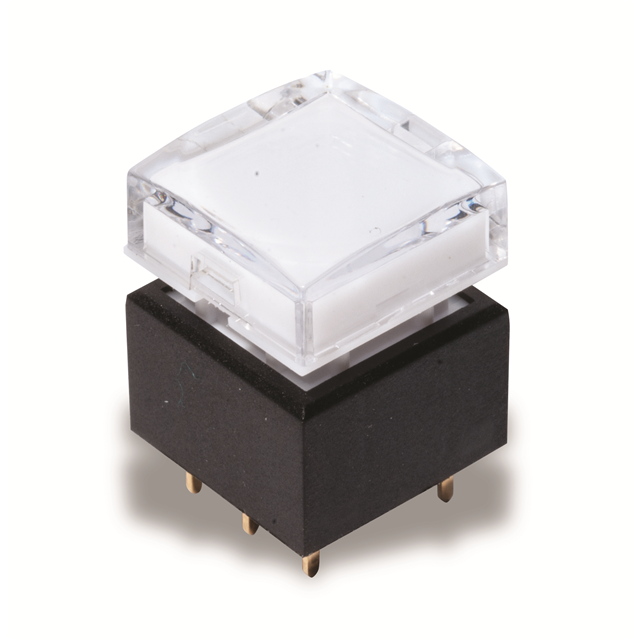

KLS12L063AQ L CONCAVE, SPDT, PCB, MOM, GREEN Littelfuse / C&K Datasheet	8 In Stock	1 : $14.31 Tray	KLS	Tray	Active	-	500mA (DC)	Through Hole	SPDT	Standard, Illuminated	On-Mom	-40°C ~ 85°C	PC Pin	LED, Green/Red	2 VDC	Square, Button	-	-	Clear	-	-	No Marking	-	25 V
KLS12L063EQ L CONCAVE, SPDT, PCB, LOCK, GREE Littelfuse / C&K Datasheet	4 In Stock	1 : $17.34 Tray	KLS	Tray	Active	-	500mA (DC)	Through Hole	SPDT	Standard, Illuminated	On-On	-40°C ~ 85°C	PC Pin	LED, Green/Red	2 VDC	Square, Button	-	-	Clear	-	-	No Marking	-	25 V
8161SHCBE2 SWITCH PUSH SPDT 0.4VA 20V Littelfuse / C&K Datasheet	94 In Stock	1 : $10.74 10 : $96.80 25 : $231.75 40 : $352.80 100 : $846.00 300 : $2,388.00 500 : $3,675.00 1,000 : $7,100.00 Tray	8060	Tray	Active	Epoxy Sealed Terminals	0.4VA (AC/DC)	Panel Mount, Rear	SPDT	Standard	On-On	-30°C ~ 65°C	PC Pin	-	-	Round, Button	-	Circular - 6.35mm Dia	Black	-	-	No Marking	20 V	20 V

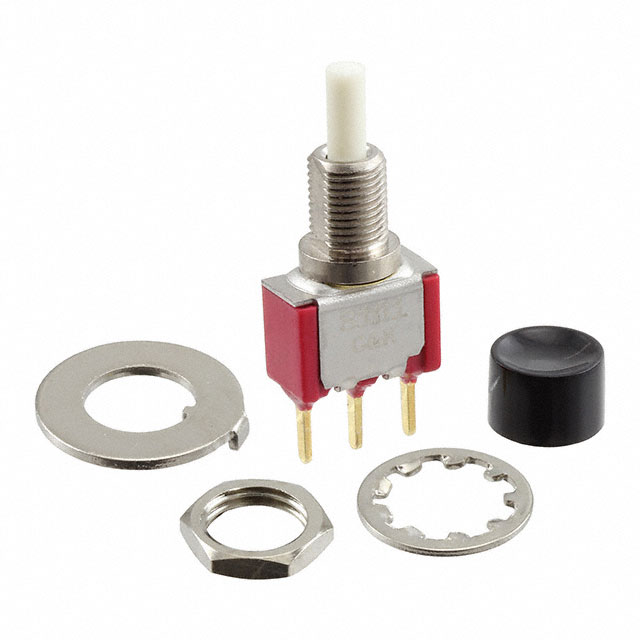

8168SHCGE2 SWITCH PUSHBUTTON SPDT 6A 120V Littelfuse / C&K Datasheet	48 In Stock	1 : $11.53 10 : $104.10 25 : $247.75 40 : $376.40 100 : $908.00 300 : $2,556.00 500 : $3,900.00 1,000 : $6,890.00 Tray	8060	Tray	Active	Epoxy Sealed Terminals	6A (AC/DC)	Panel Mount, Rear	SPDT	Standard	On-Mom	-30°C ~ 65°C	PC Pin	-	-	Round, Button	-	Circular - 6.35mm Dia	Black	-	-	No Marking	120 V	28 V

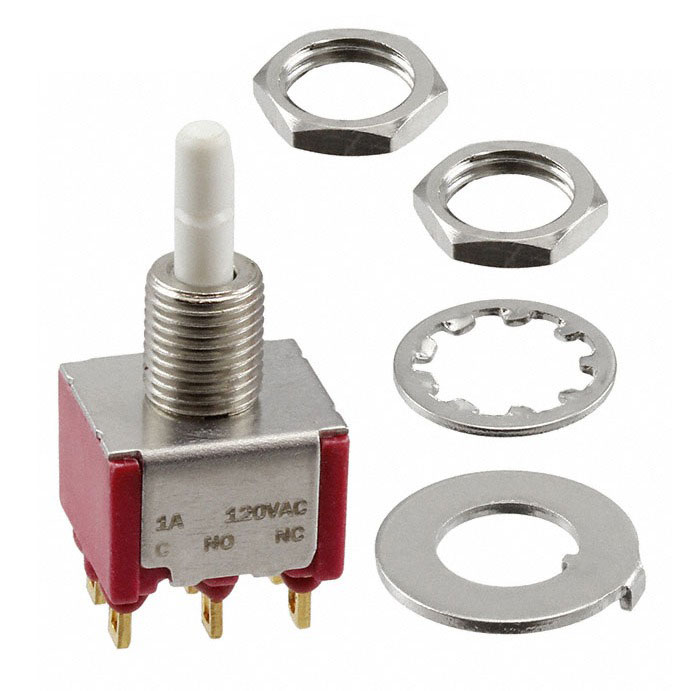

8221MDZGE SWITCH PUSHBUTTON DPDT 1A 120V Littelfuse / C&K Datasheet	37 In Stock	1 : $18.90 10 : $171.70 25 : $409.75 40 : $621.20 100 : $1,495.00 300 : $4,194.00 500 : $5,970.00 Tray	8020	Tray	Active	Tactile Feedback	1A (AC/DC)	Panel Mount, Rear	DPDT	Standard	On-Mom	-30°C ~ 75°C	Solder Lug	-	-	Plunger for Cap	-	Circular - 6.35mm Dia	White	-	-	No Marking	120 V	28 V
