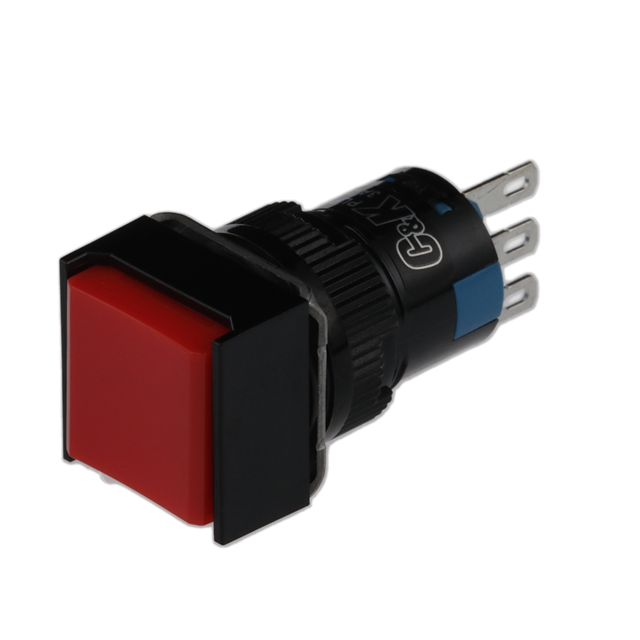

PLP16-C1SQ3-SA4

PLP16-C1SQ3-SA4

Part Number	PLP16-C1SQ3-SA4
Manufacturer	Littelfuse / C&K
Other Part Numbers	108-PLP16-C1SQ3-SA4-ND 108-PLP16-C1SQ3-SA4 PLP160006 PLP1624TA3SA6 PLP16C1SQ3SA4
Description	MOMENTARY, SQUARE, IP40, NON-ILL
Detailed Description	Pushbutton Switch SPDT Standard Panel Mount, Front
Manufacturer Standard Lead Time	16 weeks
Datasheet	Datasheet

Product Attributes

Category		Switches Pushbutton Switches
Manufacturer		Littelfuse / C&K
Series		PLP16
Packaging		Tray
Part Status		Active
Current Rating (Amps)		3A (AC), 1A (DC)
Mounting Type		Panel Mount, Front
Circuit		SPDT
Type		Standard
Switch Function		On-Mom
Operating Temperature		-25°C ~ 55°C
Termination Style		Solder Lug
Actuator Type		Square, Button
Ingress Protection		IP40
Panel Cutout Dimensions		Circular - 16.20mm Dia
Color - Actuator/Cap		Red
Actuator Marking		No Marking
Voltage Rating - AC		250 V
Voltage Rating - DC		30 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		PLP16-C1SQ3-SA4

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9031
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 277

Can ship immediately.
