Mfr Part #	Quantity	Price	Series	Package	Product Status	Display Type	Function	Memory Size	Interface	Type	Voltage - Supply	Sampling Rate (Per Second)	Voltage - Input (Max)	Channels	Input Impedance	Probe Type	Bandwidth	Rise Time (Typ)
SDS2354X-PLUS OSCILLOSCOPE 350 MHZ, 4 CH Siglent Technologies Datasheet	18 Marketplace	1 : $2,999.00 Box	SDS2000X Plus	Box	Active	LCD - Color	Record, Trend	200Mpts	USB	Bench, Digital	100 ~ 240VAC	2G	400V	4	1M - 17pF	Passive (4)	350 MHz	3.5 ns

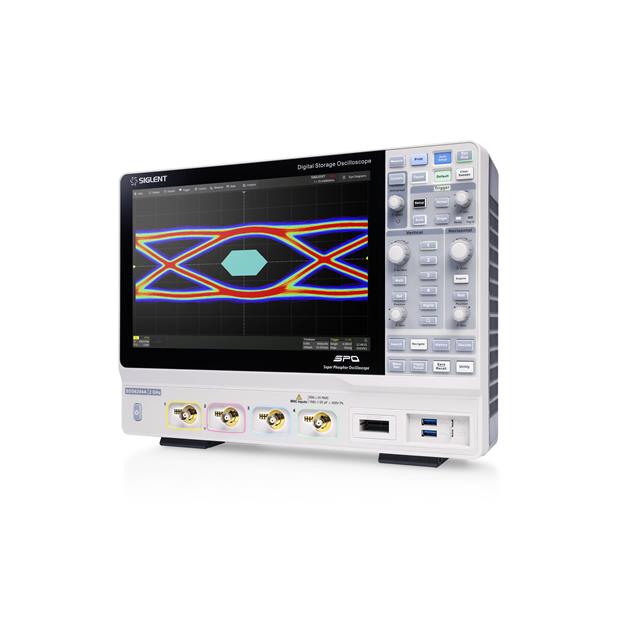

SDS6104A OSCILLOSCOPE 1 GHZ; 4 CHANNELS; Siglent Technologies Datasheet	2 Marketplace	1 : $8,990.00 Box	SDS6000A	Box	Active	LCD - Color (Touch)	Record, Playback, Trend	16kpts	Ethernet, USB	Bench, Digital	100 ~ 240VAC	5G	400V	4 Analog	1M - 20pF	Passive (1)	1 GHz	350 ps

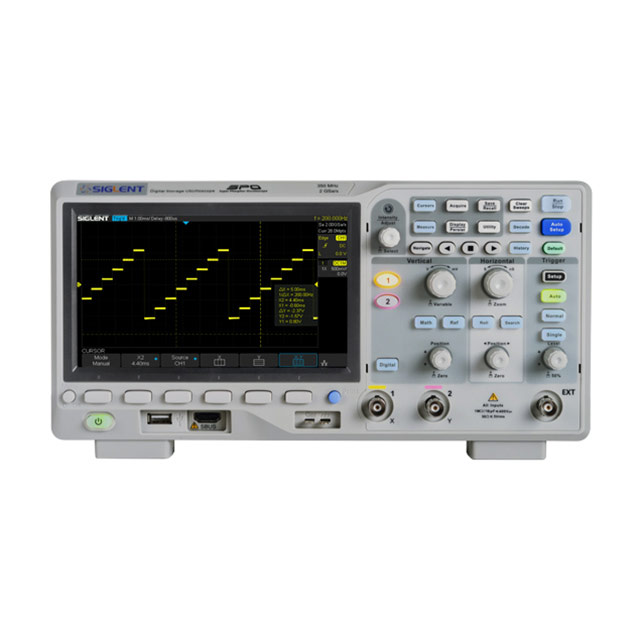

SDS2202X-E OSCILLOSCOPE 2 CH 200 MHZ 7"TFT Siglent Technologies Datasheet	6 Marketplace	1 : $619.00 Box	SDS2000X-E	Box	Active	LCD - Color	-	28Mpts	Ethernet, USB	Bench, Digital	-	2G	CAT II 600V	2	-	Passive (2)	200 MHz	-

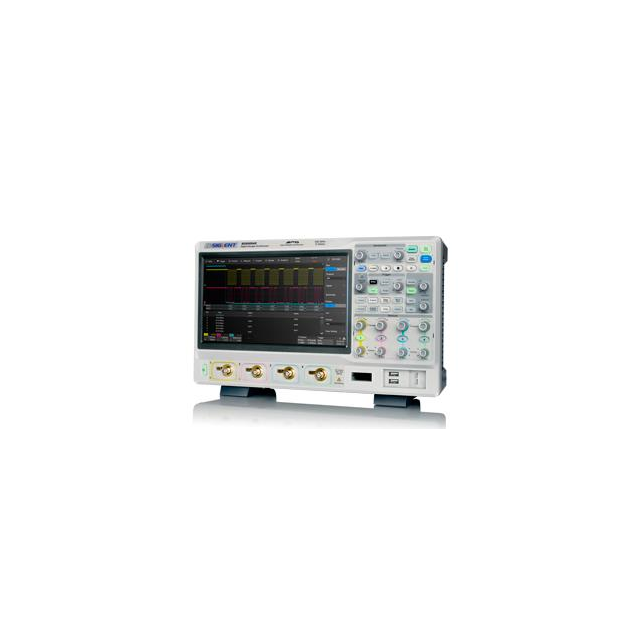

SDS5054X OSCILLOSCOPE 4 CH 500 MHZ 10"TFT Siglent Technologies Datasheet	10 Marketplace	1 : $5,890.00 Box	SDS5000X	Box	Active	LCD - Color	-	250Mpts	Ethernet, GPIB, USB	Bench, Digital	-	5G	-	4	-	-	500 MHz	-
SDS5052X OSCILLOSCOPE 4 CH 500 MHZ 10"TFT Siglent Technologies Datasheet	2 Marketplace	1 : $5,289.00 Box	SDS5000X	Box	Active	LCD - Color	-	250Mpts	Ethernet, USB	Bench, Digital	-	5G	-	2	-	Passive (2)	500 MHz	-
SDS6054A OSCILLOSCOPE 500 MHZ; 4 CHANNELS Siglent Technologies Datasheet	1 Marketplace	1 : $7,990.00 Box	SDS6000A	Box	Active	LCD - Color (Touch)	Record, Playback, Trend	16kpts	Ethernet, USB	Bench, Digital	100 ~ 240VAC	5G	400V	4 Analog	1M - 20pF	Passive (1)	500 MHz	550 ps
SDS-5000X-16LA MSO/DIGITAL ACTIVATION LICENSE ( Siglent Technologies Datasheet	3 Marketplace	1 : $435.00 Electronic Delivery		Electronic Delivery	Active	-	-	-	-	Oscilloscope	-	-	-	-	-	-	-	-
HC-1 CASE- HARD SHELL FOR SCOPES, SSA Siglent Technologies Datasheet	3 Marketplace	1 : $165.00 Box		Box	Active	-	-	-	-	Specialized	-	-	-	-	-	-	-	-
EMI-SSA3000X EMI ACTIVATION LICENSE (SSA3000X Siglent Technologies Datasheet	1 Marketplace	1 : $565.00 Electronic Delivery		Electronic Delivery	Active	-	-	-	-	Spectrum Analyzer	-	-	-	-	-	-	-	-
SSA3000XR-WDMA DIGITAL MODULATION ANALYSIS ACTI Siglent Technologies Datasheet	3 Marketplace	1 : $975.00 Electronic Delivery		Electronic Delivery	Active	-	-	-	-	Spectrum Analyzer	-	-	-	-	-	-	-	-
