LCD, OLED Character and Numeric

Mfr Part #	Quantity	Price	Series	Package	Product Status	Display Type	Display Mode	Backlight	Interface	Operating Temperature	Voltage - Supply	Viewing Area	Character Size	Display Format	Character Format	Dot Size	Controller Type	Outline L x W x H	Text Color	Background Color	Number of Characters
WEH001602AGPP3N00100 16x2 COB OLED Character Display Winstar Display Datasheet	3 Marketplace	1 : $17.96 Tray		Tray	Active	OLED	Passive	LED	Parallel, 4-Bit	-40°C ~ 80°C	3V ~ 3.5V	66.00mm L x 16.00mm W	5.55mm H x 2.95mm W	16 x 2	5 x 8 Dots	0.55mm W x 0.65mm H	WS0010-TX	80.00mm x 36.00mm x 10.00mm	Green	-	32.0

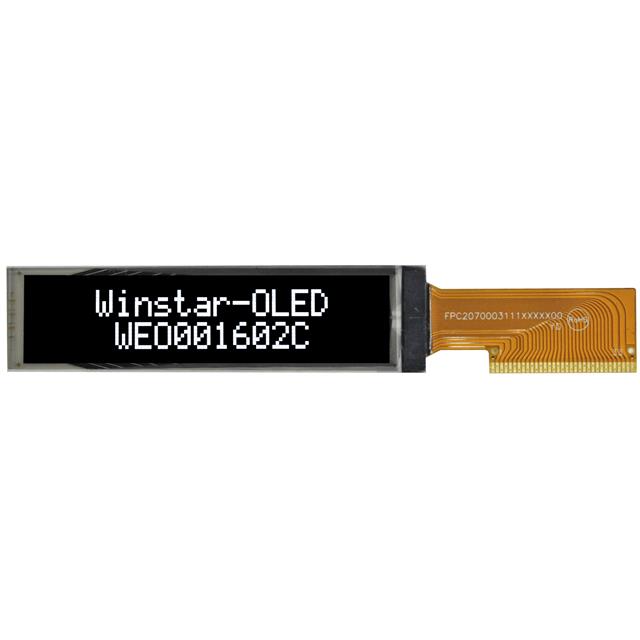

WEO001602CWPP5N00000 16x2 OLED Display, Character OLE Winstar Display Datasheet	4 Marketplace	1 : $12.88 Tray		Tray	Active	OLED	-	Without Backlight	I2C, SPI	-40°C ~ 80°C	2.4V ~ 3.3V	58.22mm L x 13.52mm W	5.57mm H x 2.97mm W	16 x 2	5 x 8 Dots	0.57mm W x 0.67mm H	SSD1311	68.50mm x 17.50mm x 2.17mm	-	-	32
WEO002004CLPP3N00000 SSD1331 OLED Display 20 Characte Winstar Display Datasheet	2 Marketplace	1 : $19.17 Tray		Tray	Active	OLED	Passive	Without Backlight	I2C	-40°C ~ 80°C	2.8V ~ 3.3V	72.42mm L x 22.82mm W	4.77mm H x 2.97mm W	20 x 2	5 x 8 Dots	0.57mm W x 0.57mm H	SSD1311	84.50mm x 27.50mm x 2.17mm	Yellow	-	40.0
WEO001602CWPP3N00F00 16x2 OLED Display, Character OLE Winstar Display Datasheet	10 Marketplace	1 : $12.94 Tray		Tray	Active	OLED	-	Without Backlight	I2C, SPI	-40°C ~ 80°C	2.4V ~ 3.3V	58.22mm L x 13.52mm W	5.57mm H x 2.97mm W	16 x 2	5 x 8 Dots	0.57mm W x 0.67mm H	SSD1311	68.50mm x 17.50mm x 2.17mm	-	-	32
WEH001602ARPP5N00100 16x2 COB OLED Character Display Winstar Display Datasheet	3 Marketplace	1 : $19.72 Tray		Tray	Active	OLED	Passive	LED	Parallel, 4-Bit	-40°C ~ 80°C	4.8V ~ 5.3V	66.00mm L x 16.00mm W	5.55mm H x 2.95mm W	16 x 2	5 x 8 Dots	0.55mm W x 0.65mm H	WS0010-TX	80.00mm x 36.00mm x 10.00mm	Red	-	32

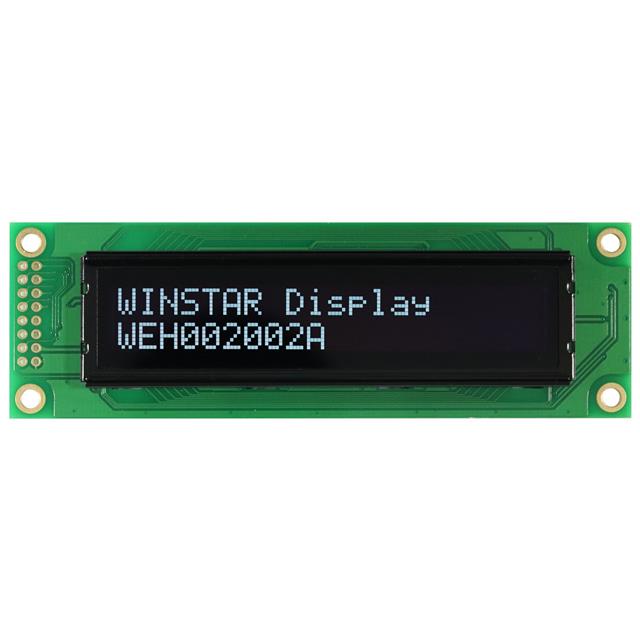

WEH002002AWPP5N00007 Character OLED Display, OLED 20x Winstar Display Datasheet	2 Marketplace	1 : $32.60 Tray		Tray	Active	OLED	Passive	Without Backlight	-	-40°C ~ 80°C	4.8V ~ 5.3V	85.00mm L x 18.60mm W	5.55mm H x 3.20mm W	20 x 2	5 x 8 Dots	0.60mm W x 0.65mm H	-	116.00mm x 37.00mm x 9.80mm	White	-	40

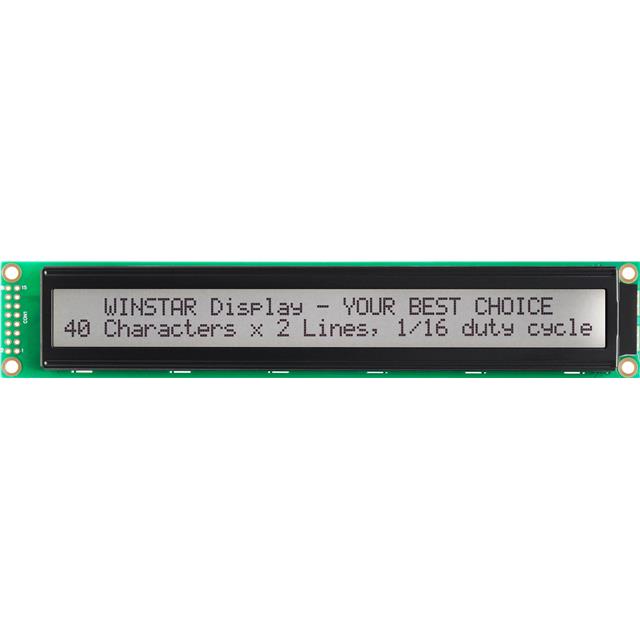

WH4002A2-YYH-JW Character Display LCD 40x2, 40x2 Winstar Display Datasheet	9 Marketplace	1 : $21.32 Tray		Tray	Active	STN - Super-Twisted Nematic	Transflective	LED - Yellow/Green	4/8-Bit, I2C, Parallel, SPI	-20°C ~ 70°C	4V ~ 4.3V	154.40mm L x 16.50mm W	5.55mm H x 3.20mm W	40 x 2	5 x 8 Dots	0.60mm W x 0.65mm H	-	182.00mm x 33.50mm x 13.60mm	Yellow/Green	-	80.0
WF0840ASWAMLNN0 Wide Temperature, High Brightnes Winstar Display Datasheet	2 Marketplace	1 : $269.88 Tray		Tray	Active	TFT - Color	Transmissive	LED - White	LVDS	-	-	170.80mm W x 128.10mm H	-	-	-	-	ST5084AA, ST5821AH	-	-	Black	-
WEO012864DWPP3N00F00 0.96 inch Thin OLED Display, OLE Winstar Display Datasheet	4 Marketplace	1 : $6.72 Tray		Tray	Active	OLED - Passive Matrix	Passive	Without Backlight	I2C, SPI	-	-	23.94mm W x 12.06mm H	-	-	-	0.15mm W x 0.15mm H	SSD1306BZ	-	-	-	-
WO256128A-TFH COG 256x128, ST75256, Winstar Display Datasheet	5 Marketplace	1 : $14.20 Tray		Tray	Active	FSTN - Film Super-Twisted Nematic	Transflective	LED - White	-	-	-	70.70mm W x 38.80mm H	-	-	-	0.24mm W x 0.24mm H	ST75256	-	-	-	-
