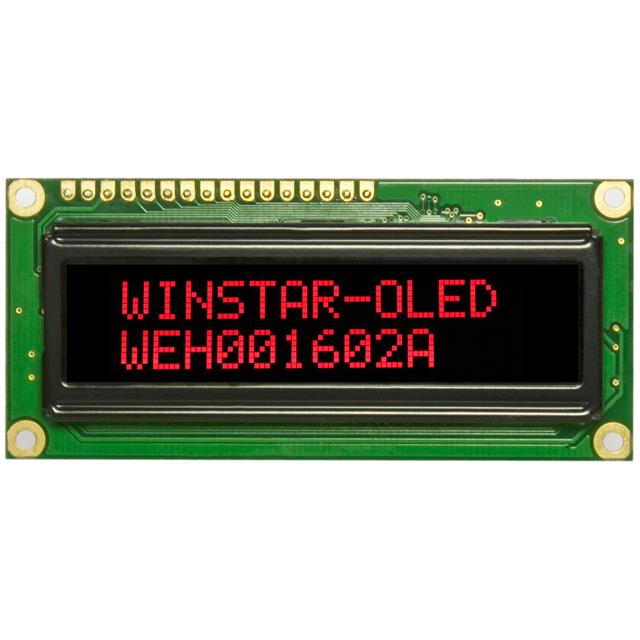

WEH001602ARPP5N00100 _ LCD, OLED Character and Numeric_Optoelectronics

Part Number	WEH001602ARPP5N00100
Manufacturer	Winstar Display
Other Part Numbers	4863-WEH001602ARPP5N00100-ND 4863-WEH001602ARPP5N00100
Description	16x2 COB OLED Character Display
Detailed Description	Character Display Module Passive 5 x 8 Dots OLED LED Parallel, 4-Bit 80.00mm x 36.00mm x 10.00mm
Datasheet	Datasheet

Category		Optoelectronics LCD, OLED Character and Numeric
Manufacturer		Winstar Display
Series
Packaging		Tray
Part Status		Active
Display Type		OLED
Display Mode		Passive
Backlight		LED
Interface		Parallel, 4-Bit
Operating Temperature		-40°C ~ 80°C
Voltage - Supply		4.8V ~ 5.3V
Viewing Area		66.00mm L x 16.00mm W
Character Size		5.55mm H x 2.95mm W
Display Format		16 x 2
Character Format		5 x 8 Dots
Dot Size		0.55mm W x 0.65mm H
Controller Type		WS0010-TX
Outline L x W x H		80.00mm x 36.00mm x 10.00mm
Text Color		Red
Number of Characters		32

RESOURCE TYPE		LINK
Datasheets		WEH001602ARPP5N00100
