IC Sockets

Mfr Part #	Quantity	Price	Series	Package	Product Status	Features	Mounting Type	Type	Operating Temperature	Number of Positions or Pins (Grid)	Termination	Material Flammability Rating	Housing Material	Pitch - Mating	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Material - Mating	Pitch - Post	Contact Finish - Post	Contact Finish Thickness - Post	Contact Material - Post	Termination Post Length	Contact Resistance	Current Rating (Amps)

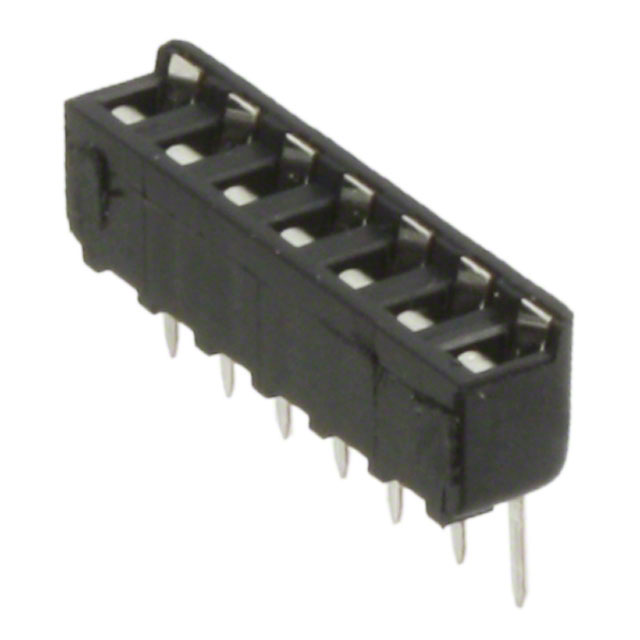

382441-1 CONN SOCKET SIP 7POS TIN TE Connectivity AMP Connectors Datasheet	0 In Stock	Obsolete	Diplomate DL	Tray	Obsolete	Closed Frame	Through Hole	SIP	-55°C ~ 105°C	7 (1 x 7)	Solder	UL94 V-0	Thermoplastic, Glass Filled	0.100" (2.54mm)	Tin	-	Phosphor Bronze	0.100" (2.54mm)	Tin	-	Phosphor Bronze	0.130" (3.30mm)	-	-

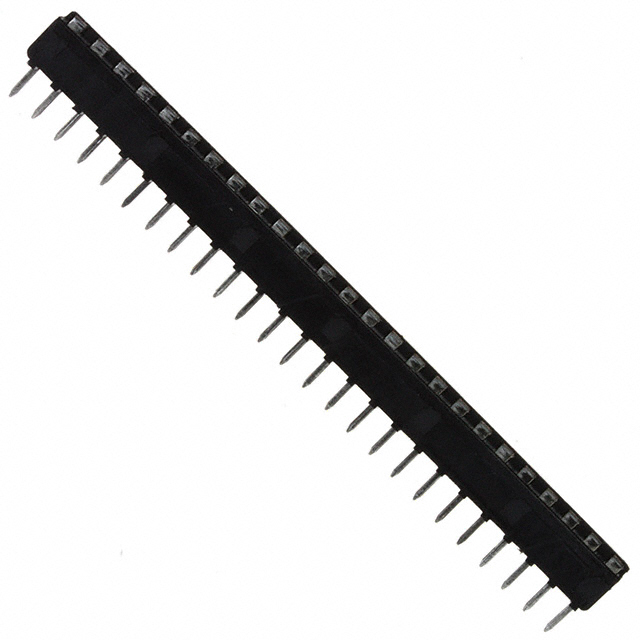

643657-1 CONN SOCKET SIP 25POS TIN TE Connectivity AMP Connectors Datasheet	0 In Stock	Obsolete	Diplomate DL	Tray	Obsolete	Closed Frame	Through Hole	SIP	-55°C ~ 105°C	25 (1 x 25)	Solder	UL94 V-0	Thermoplastic, Glass Filled	0.100" (2.54mm)	Tin	-	Beryllium Copper	0.100" (2.54mm)	Tin	-	Beryllium Copper	0.130" (3.30mm)	-	-

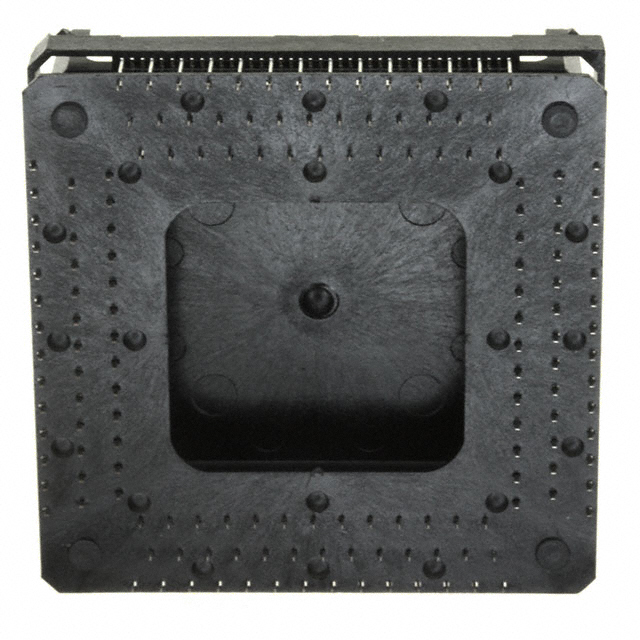

822114-4 CONN SOCKET PQFP 160POS TIN-LEAD TE Connectivity AMP Connectors Datasheet	0 In Stock	Obsolete		Tube	Obsolete	Closed Frame	Through Hole	QFP	-	160 (4 x 40)	Solder	UL94 V-0	Liquid Crystal Polymer (LCP)	0.050" (1.27mm)	Tin-Lead	200.0µin (5.08µm)	Phosphor Bronze	0.050" (1.27mm)	Tin-Lead	200.0µin (5.08µm)	Phosphor Bronze	0.135" (3.43mm)	-	-

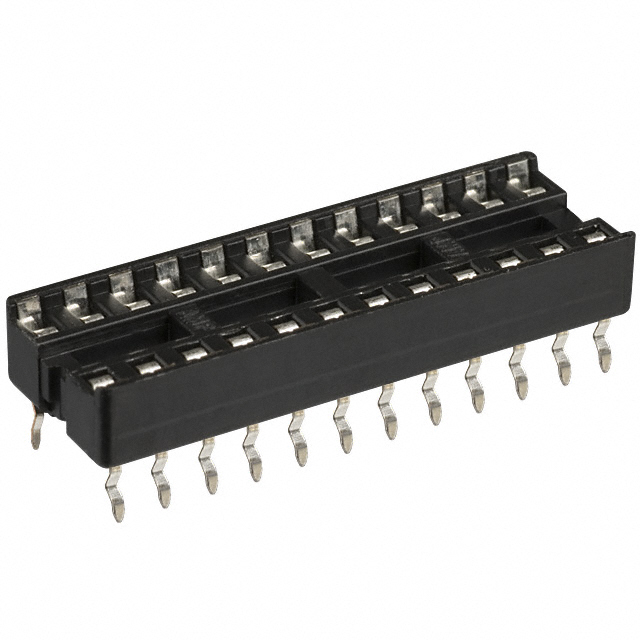

2-641933-1 CONN IC DIP SOCKET 24POS TIN TE Connectivity AMP Connectors Datasheet	0 In Stock	Obsolete	Diplomate DL	Tube	Obsolete	Open Frame	Through Hole	DIP, 0.3" (7.62mm) Row Spacing	-55°C ~ 105°C	24 (2 x 12)	Solder	UL94 V-0	Thermoplastic	0.100" (2.54mm)	Tin	-	Beryllium Copper	0.100" (2.54mm)	Tin	-	Beryllium Copper	0.128" (3.24mm)	30mOhm	-

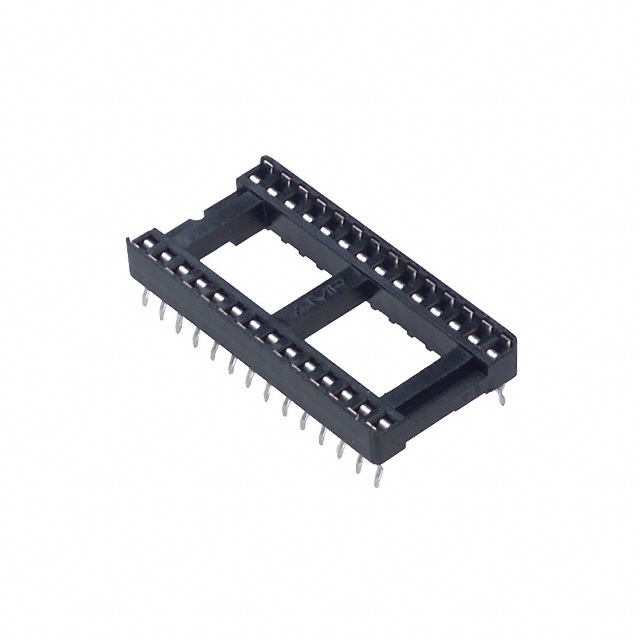

2-641615-3 CONN IC DIP SOCKET 28POS TIN TE Connectivity AMP Connectors Datasheet	0 In Stock	Obsolete	Diplomate DL	Tube	Obsolete	Open Frame	Through Hole	DIP, 0.6" (15.24mm) Row Spacing	-55°C ~ 105°C	28 (2 x 14)	Solder	UL94 V-0	Thermoplastic, Glass Filled	0.100" (2.54mm)	Tin	-	Phosphor Bronze	0.100" (2.54mm)	Tin	-	Phosphor Bronze	0.120" (3.05mm)	30mOhm	-

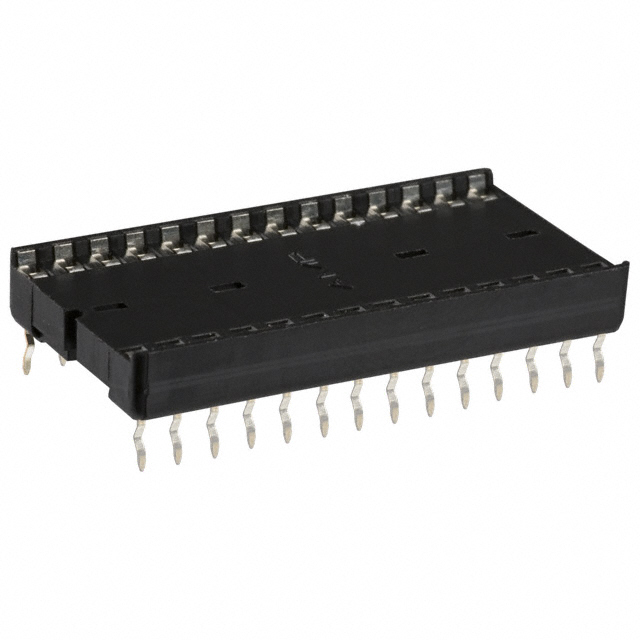

2-641267-1 CONN IC DIP SOCKET 28POS TIN TE Connectivity AMP Connectors Datasheet	0 In Stock	Obsolete	Diplomate DL	Tube	Obsolete	Closed Frame	Through Hole	DIP, 0.6" (15.24mm) Row Spacing	-55°C ~ 105°C	28 (2 x 14)	Solder	-	Thermoplastic, Glass Filled	0.100" (2.54mm)	Tin	-	Beryllium Copper	0.100" (2.54mm)	Tin	-	Beryllium Copper	-	-	-

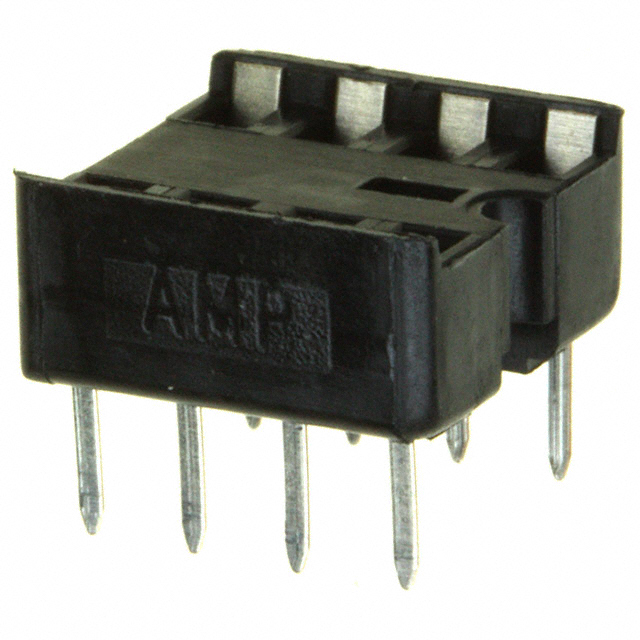

2-640463-2 CONN IC DIP SOCKET 8POS GOLD TE Connectivity AMP Connectors Datasheet	0 In Stock	Obsolete	Diplomate DL	Tube	Obsolete	Closed Frame	Through Hole	DIP, 0.3" (7.62mm) Row Spacing	-55°C ~ 125°C	8 (2 x 4)	Solder	UL94 V-0	Thermoplastic, Glass Filled	0.100" (2.54mm)	Gold	30.0µin (0.76µm)	Beryllium Copper	0.100" (2.54mm)	Gold	30.0µin (0.76µm)	Beryllium Copper	0.128" (3.24mm)	30mOhm	-
643662-1 CONN SOCKET SIP 30POS TIN TE Connectivity AMP Connectors Datasheet	0 In Stock	Obsolete	Diplomate DL	Tray	Obsolete	Closed Frame	Through Hole	SIP	-55°C ~ 105°C	30 (1 x 30)	Solder	UL94 V-0	Thermoplastic, Glass Filled	0.100" (2.54mm)	Tin	-	Beryllium Copper	0.100" (2.54mm)	Tin	-	Beryllium Copper	0.130" (3.30mm)	-	-

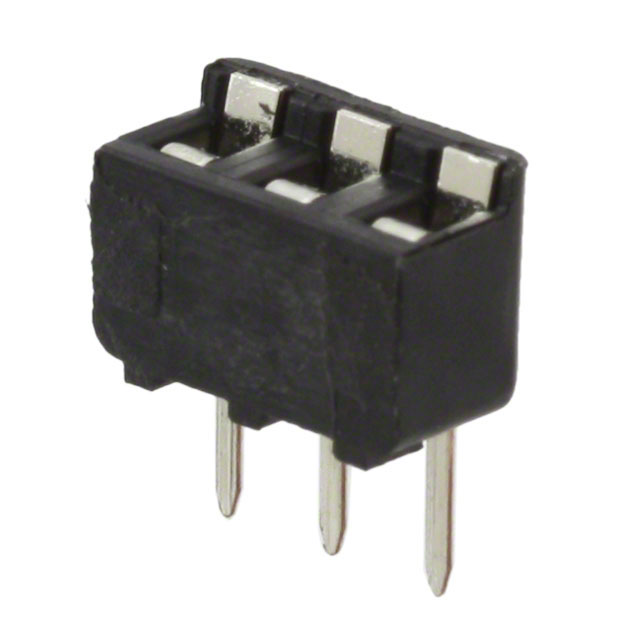

382437-1 CONN SOCKET SIP 3POS TIN TE Connectivity AMP Connectors Datasheet	0 In Stock	Obsolete	Diplomate DL	Tray	Obsolete	-	Through Hole	SIP	-55°C ~ 105°C	3 (1 x 3)	Solder	UL94 V-0	Thermoplastic, Glass Filled	0.100" (2.54mm)	Tin	-	Phosphor Bronze	0.100" (2.54mm)	Tin	-	Phosphor Bronze	0.130" (3.30mm)	-	-

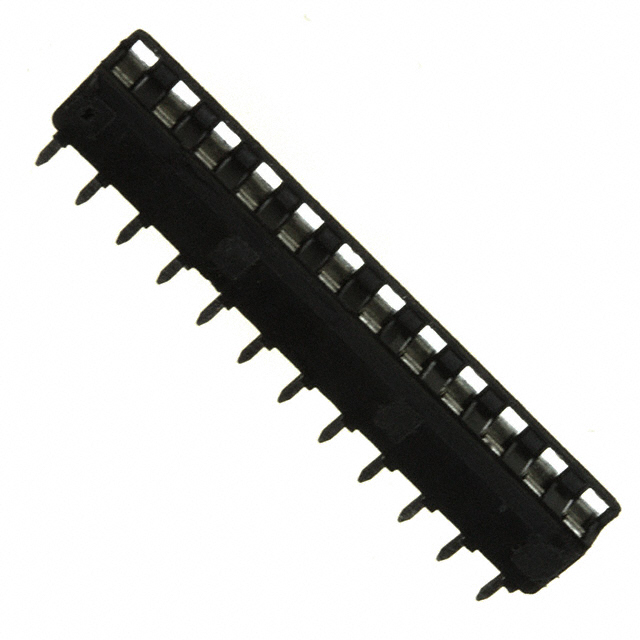

643644-1 CONN SOCKET SIP 12POS TIN TE Connectivity AMP Connectors Datasheet	0 In Stock	Obsolete	Diplomate DL	Tray	Obsolete	Closed Frame	Through Hole	SIP	-55°C ~ 105°C	12 (1 x 12)	Solder	UL94 V-0	Thermoplastic, Glass Filled	0.100" (2.54mm)	Tin	-	Beryllium Copper	0.100" (2.54mm)	Tin	-	Beryllium Copper	0.130" (3.30mm)	-	-
