IC Sockets

Mfr Part #	Quantity	Price	Series	Package	Product Status	Features	Mounting Type	Type	Operating Temperature	Number of Positions or Pins (Grid)	Termination	Material Flammability Rating	Housing Material	Pitch - Mating	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Material - Mating	Pitch - Post	Contact Finish - Post	Contact Finish Thickness - Post	Contact Material - Post	Termination Post Length	Contact Resistance	Current Rating (Amps)
524-AG11D CONN IC DIP SOCKET 24POS GOLD TE Connectivity AMP Connectors Datasheet	1,464 Marketplace	25 : $77.00 150 : $445.50 500 : $1,425.00 1,000 : $2,670.00 Tube	500	Tube	Obsolete	Closed Frame	Through Hole	DIP, 0.6" (15.24mm) Row Spacing	-55°C ~ 125°C	24 (2 x 12)	Solder	UL94 V-0	Polyester	0.100" (2.54mm)	Gold	25.0µin (0.63µm)	Beryllium Copper	0.100" (2.54mm)	-	-	Brass	0.126" (3.20mm)	10mOhm	3 A
524-AG11D-ESL CONN IC DIP SOCKET 24POS GOLD TE Connectivity AMP Connectors Datasheet	259 Marketplace	25 : $78.00 150 : $451.50 Tube	500	Tube	Obsolete	Closed Frame	Through Hole	DIP, 0.6" (15.24mm) Row Spacing	-55°C ~ 125°C	24 (2 x 12)	Solder	-	-	0.100" (2.54mm)	Gold	5.00µin (0.127µm)	Beryllium Copper	0.100" (2.54mm)	-	-	Brass	-	-	-

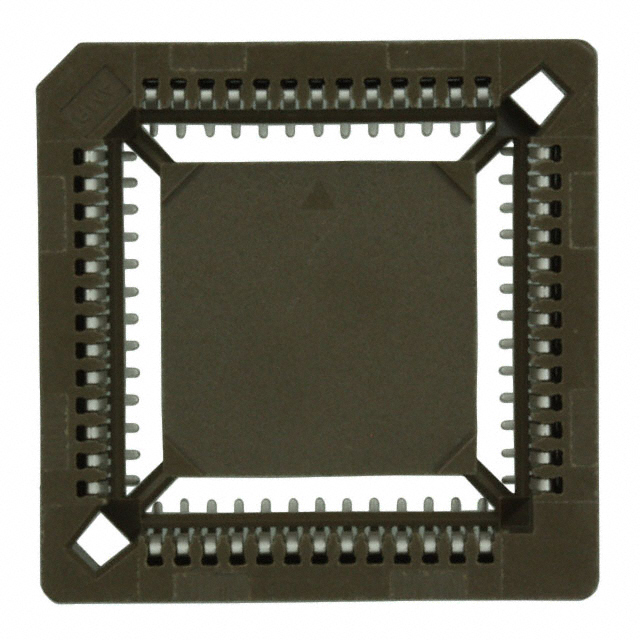

3-822516-4 CONN SOCKET PLCC 52POS TIN TE Connectivity AMP Connectors Datasheet	0 In Stock	4,200 : $7,308.00 Tape & Reel (TR)		Tape & Reel (TR)	Obsolete	Closed Frame	Surface Mount	PLCC	-	52 (4 x 13)	Solder	-	Thermoplastic	0.050" (1.27mm)	Tin	100.0µin (2.54µm)	Phosphor Bronze	0.050" (1.27mm)	Tin	100.0µin (2.54µm)	Phosphor Bronze	-	-	-

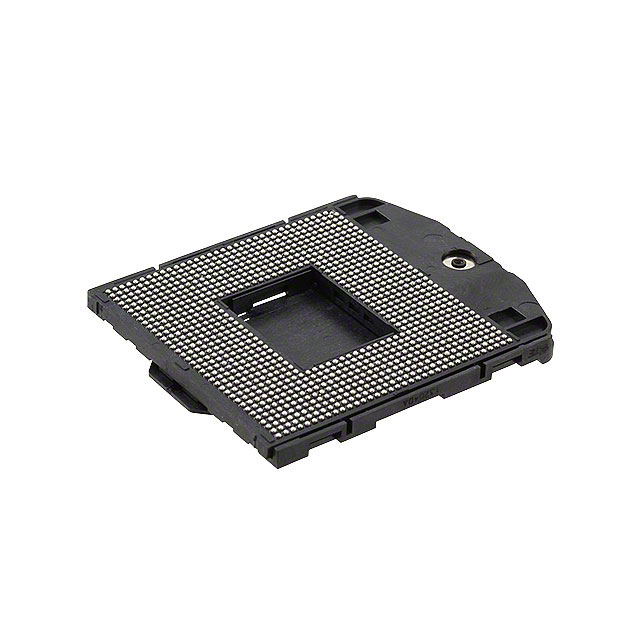

2134146-2 CONN SOCKET PGA 989POS GOLD TE Connectivity AMP Connectors Datasheet	0 In Stock	12,800 : $41,088.00 Tape & Reel (TR)		Tape & Reel (TR)	Obsolete	Open Frame	Surface Mount	PGA	-	989 (35 x 36)	Solder	-	Thermoplastic	0.157" (4.00mm)	Gold	Flash	Copper Alloy	0.157" (4.00mm)	Tin-Lead	Flash	Copper Alloy	-	-	-

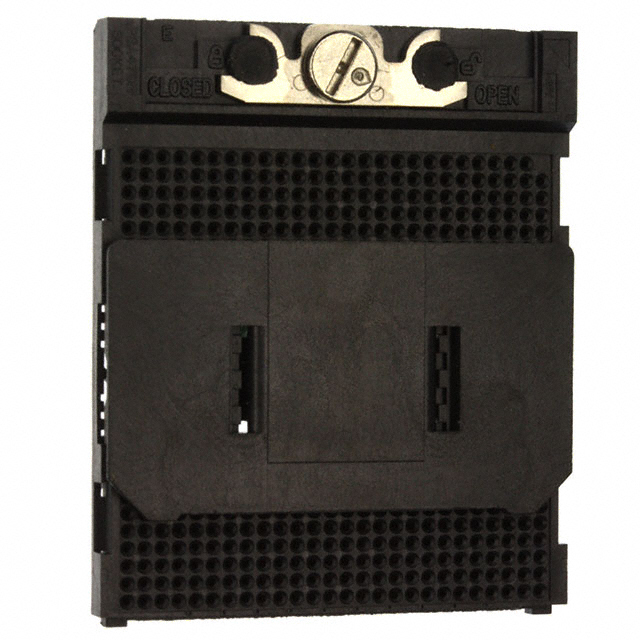

1674770-6 CONN SOCKET PGA ZIF 479POS GOLD TE Connectivity AMP Connectors Datasheet	0 In Stock	600 : $2,772.00 Tape & Reel (TR)		Tape & Reel (TR)	Obsolete	Open Frame	Surface Mount	PGA, ZIF (ZIP)	-	479 (26 x 26)	Solder	-	Thermoplastic	0.050" (1.27mm)	Gold	30.0µin (0.76µm)	Copper Alloy	0.050" (1.27mm)	Gold	30.0µin (0.76µm)	Copper Alloy	-	-	-
2444090-3 CONN SOCKET SIP 16POS GOLD TE Connectivity AMP Connectors Datasheet	0 In Stock	18,000 : $6,120.00 Bulk		Bulk	Active	-	Through Hole	SIP	-	16	Solder	-	Thermoplastic	0.100" (2.54mm)	Gold	Flash	Copper Alloy	0.100" (2.54mm)	Tin	78.7µin (2.00µm)	Copper Alloy	-	-	-
2444090-5 CONN SOCKET SIP 20POS GOLD TE Connectivity AMP Connectors Datasheet	0 In Stock	10,800 : $5,184.00 Bulk		Bulk	Active	-	Through Hole	SIP	-	20	Solder	UL94 V-0	Thermoplastic	0.100" (2.54mm)	Gold	Flash	Copper Alloy	0.100" (2.54mm)	Tin	78.7µin (2.00µm)	Copper Alloy	0.109" (2.76mm)	10mOhm	-
2-641296-4 CONN IC DIP SOCKET 6POS GOLD TE Connectivity AMP Connectors Datasheet	0 In Stock	Obsolete	Diplomate DL	Tube	Obsolete	Closed Frame	Through Hole	DIP, 0.3" (7.62mm) Row Spacing	-55°C ~ 125°C	6 (2 x 3)	Solder	UL94 V-0	Thermoplastic, Glass Filled	0.100" (2.54mm)	Gold	15.0µin (0.38µm)	Phosphor Bronze	0.100" (2.54mm)	Gold	15.0µin (0.38µm)	Phosphor Bronze	0.128" (3.24mm)	30mOhm	-
2-641606-4 CONN IC DIP SOCKET 40POS GOLD TE Connectivity AMP Connectors Datasheet	0 In Stock	Obsolete	Diplomate DL	Tube	Obsolete	Open Frame	Through Hole	DIP, 0.6" (15.24mm) Row Spacing	-55°C ~ 125°C	40 (2 x 20)	Solder	UL94 V-0	Thermoplastic, Glass Filled	0.100" (2.54mm)	Gold	15.0µin (0.38µm)	Phosphor Bronze	0.100" (2.54mm)	Gold	15.0µin (0.38µm)	Phosphor Bronze	0.128" (3.24mm)	30mOhm	-
382444-2 CONN SOCKET SIP 8POS TIN-LEAD TE Connectivity AMP Connectors Datasheet	0 In Stock	Obsolete		Tube	Obsolete	Closed Frame	Through Hole	SIP	-55°C ~ 105°C	8 (1 x 8)	Solder	-	Fluoropolymer (FP)	0.100" (2.54mm)	Tin-Lead	150.0µin (3.81µm)	Beryllium Copper	0.100" (2.54mm)	Tin-Lead	150.0µin (3.81µm)	Beryllium Copper	-	-	-
