Part Number |
2134146-2
|
---|---|
Manufacturer | TE Connectivity AMP Connectors |
Other Part Numbers |
A119753TR-ND
A119753CT
A119753TR
-2134146-2-SI
2266-2134146-2
|

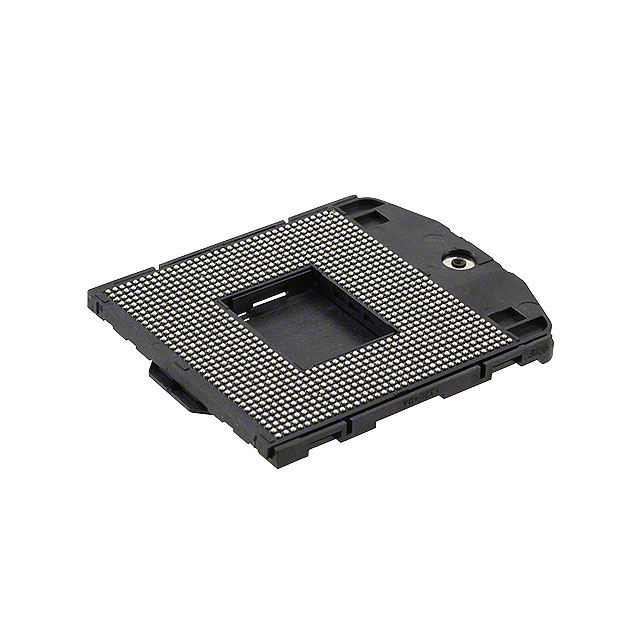

Description | CONN SOCKET PGA 989POS GOLD |
Detailed Description | 989 (35 x 36) Pos PGA Socket Gold Surface Mount |
Category | ||
---|---|---|
Manufacturer | TE Connectivity AMP Connectors | |
Series | ||
Packaging |
Tape & Reel (TR)
|
|
Part Status | Obsolete | |
Features | Open Frame | |
Mounting Type | Surface Mount | |
Type | PGA | |
Number of Positions or Pins (Grid) | 989 (35 x 36) | |
Termination | Solder | |
Housing Material | Thermoplastic | |
Pitch - Mating | 0.157" (4.00mm) | |
Contact Finish - Mating | Gold | |
Contact Finish Thickness - Mating | Flash | |
Contact Material - Mating | Copper Alloy | |
Pitch - Post | 0.157" (4.00mm) | |
Contact Finish - Post | Tin-Lead | |
Contact Finish Thickness - Post | Flash | |
Contact Material - Post | Copper Alloy |
RESOURCE TYPE | LINK |
---|
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8536.69.4040 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | Vendor Undefined | |
RoHS Status | ROHS3 Compliant |
