Fixed Inductors

Product Status

Active

Obsolete

Discontinued

Last Time Buy

Not For New Designs

Mounting Type

Bolt Mount

Brackets

Chassis Mount

Free Hanging (In-Line)

Surface Mount

Through Hole

User Defined

Shielding

Shielded

Unshielded

Ratings

AEC-Q200

Mfr Part #	Quantity	Price	Series	Package	Product Status	Tolerance	Features	Package / Case	Size / Dimension	Mounting Type	Shielding	Type	Operating Temperature	DC Resistance (DCR)	Q @ Freq	Frequency - Self Resonant	Ratings	Current - Saturation (Isat)	Material - Core	Inductance Frequency - Test	Supplier Device Package	Height - Seated (Max)	Inductance	Current Rating (Amps)
AS20-8R2K-RC 8.2uH +/-10% Axial Shielded Ind. Allied Components International Datasheet	12 Marketplace	1 : $1.25 5 : $6.00 10 : $11.00 15 : $14.70 Bag	AS20	Bag	Active	±10%	-	Axial	0.100" Dia x 0.250" L (2.54mm x 6.35mm)	Through Hole	Shielded	-	-55°C ~ 125°C	1.96Ohm Max	45 @ 7.9MHz	59MHz	-	-	-	7.9 MHz	Axial	-	8.2 µH	302 mA

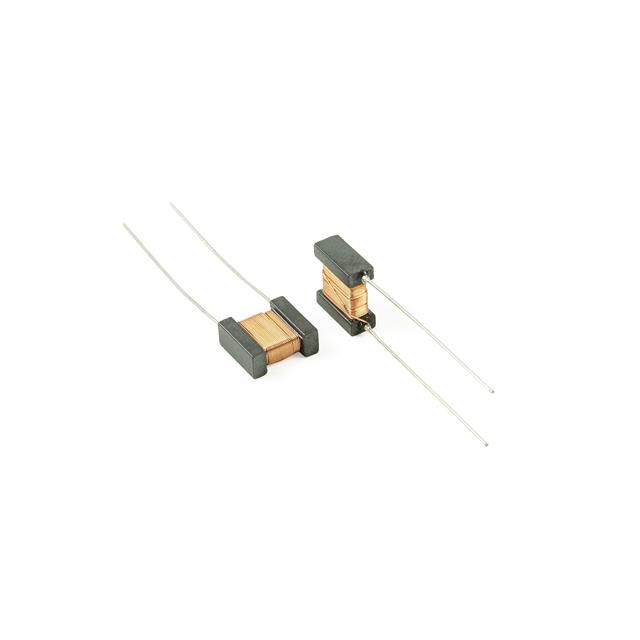

RFC20-191J-RC 192uH +/-5% Radial Flat Coil Allied Components International Datasheet	5 Marketplace	1 : $1.50 5 : $6.25 10 : $11.50 15 : $16.50 Case		Case	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

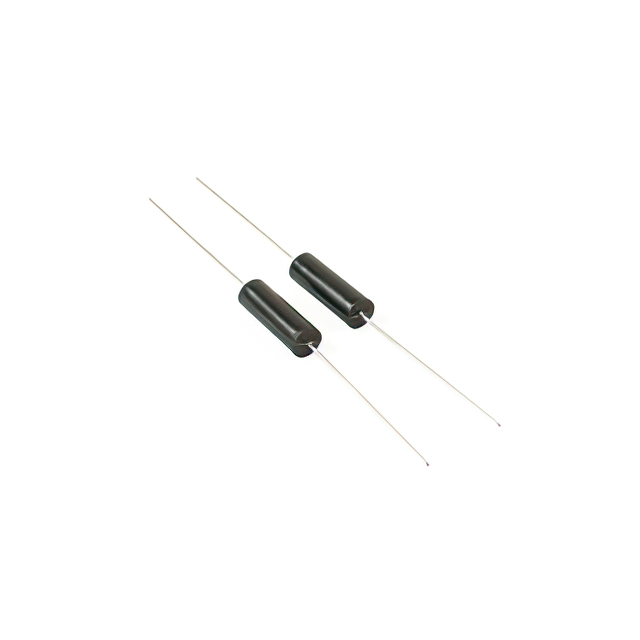

AHC50-101M-RC 100uH, 20%, Axial Hash Choke Allied Components International Datasheet	6 Marketplace	1 : $2.75 5 : $12.50 10 : $22.50 15 : $29.70 Bulk		Bulk	Active	±20%	-	Axial	0.394" Dia x 1.380" L (10.00mm x 35.05mm)	Through Hole	Unshielded	Drum Core, Wirewound	-55°C ~ 105°C	216mOhm Max	-	-	-	-	Ferrite	1 kHz	Axial	-	100 µH	2 A

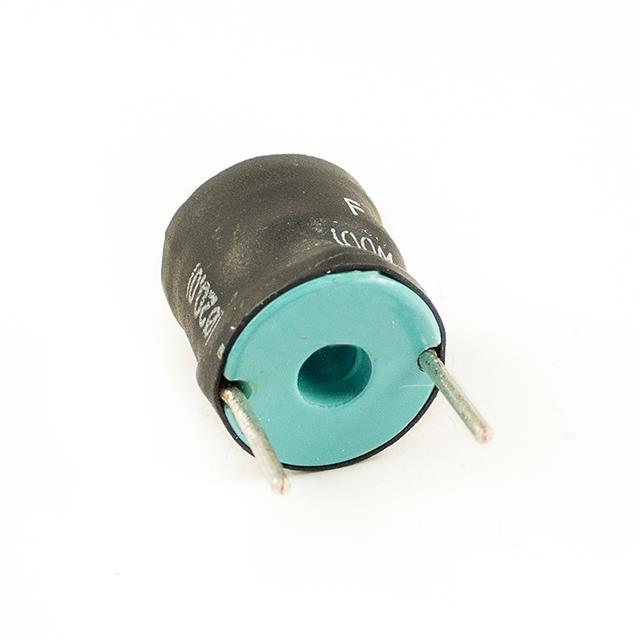

RDC20-150K-RC 15 UH 20% RADIAL DRUM CORE Allied Components International Datasheet	12 Marketplace	1 : $6.50 5 : $31.25 10 : $57.50 Box	RDC20	Box	Active	±10%	-	Radial	0.825" Dia (20.96mm)	Through Hole	Unshielded	Drum Core, Wirewound	-40°C ~ 85°C	13mOhm Max	-	-	-	25A	-	1 kHz	Radial	0.840" (21.34mm)	15 µH	9 A
RDC20-100M-RC 10UH 20% RADIAL DRUM CORE Allied Components International Datasheet	5 Marketplace	1 : $6.50 5 : $31.25 10 : $57.50 Box	RDC20	Box	Active	±20%	-	Radial	0.825" Dia (20.96mm)	Through Hole	Unshielded	Drum Core, Wirewound	-40°C ~ 85°C	9mOhm Max	-	-	-	30A	-	1 kHz	Radial	0.840" (21.34mm)	10 µH	11.4 A

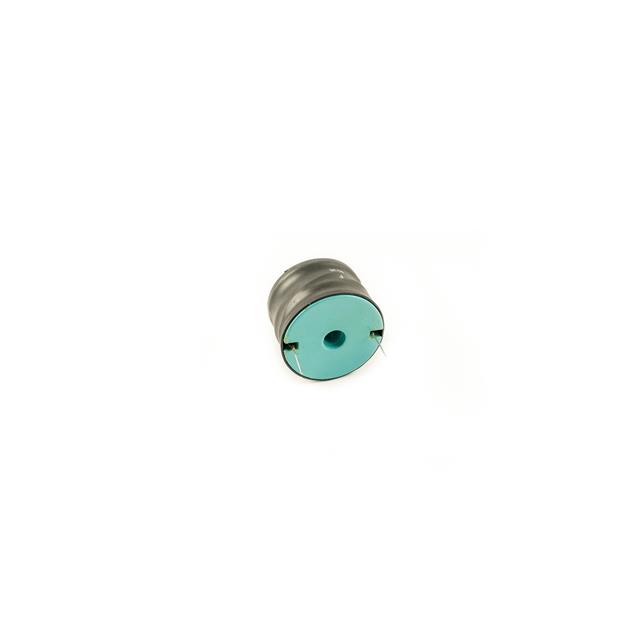

RDC30-121K-RC 120UH 10% Radial Drum Core Allied Components International Datasheet	10 Marketplace	1 : $7.55 5 : $36.25 10 : $69.80 Box	RDC30	Box	Active	±10%	-	Radial, Vertical Cylinder	1.100" Dia (27.94mm)	Through Hole	Unshielded	Drum Core, Wirewound	-55°C ~ 125°C	46mOhm Max	-	-	-	12.1A	-	1 kHz	Radial	0.840" (21.34mm)	120 µH	7.2 A

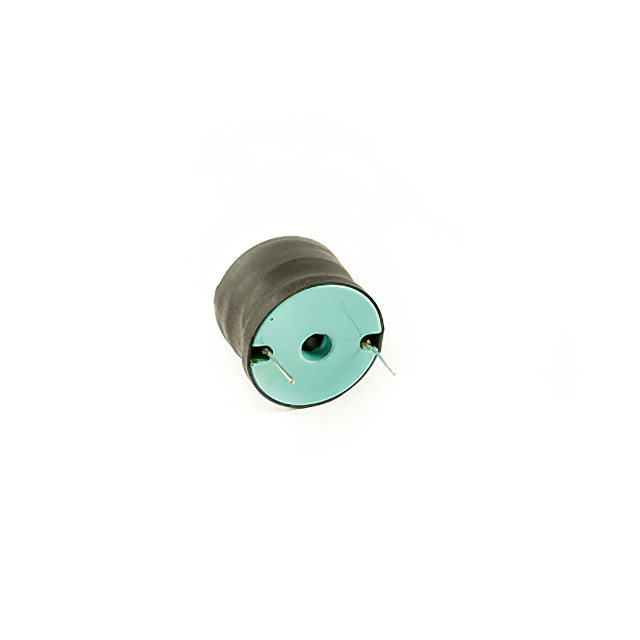

RDC40-822K-RC 8200UH 10% Radial Drum Core Allied Components International Datasheet	2 Marketplace	1 : $8.50 5 : $41.25 10 : $79.80 Box	RDC40	Box	Active	±10%	-	Radial, Vertical Cylinder	1.500" Dia (38.10mm)	Through Hole	Unshielded	Drum Core, Wirewound	-55°C ~ 125°C	1.95Ohm Max	-	-	-	2A	-	-	Radial	1.030" (26.16mm)	8.2 mH	1.6 A

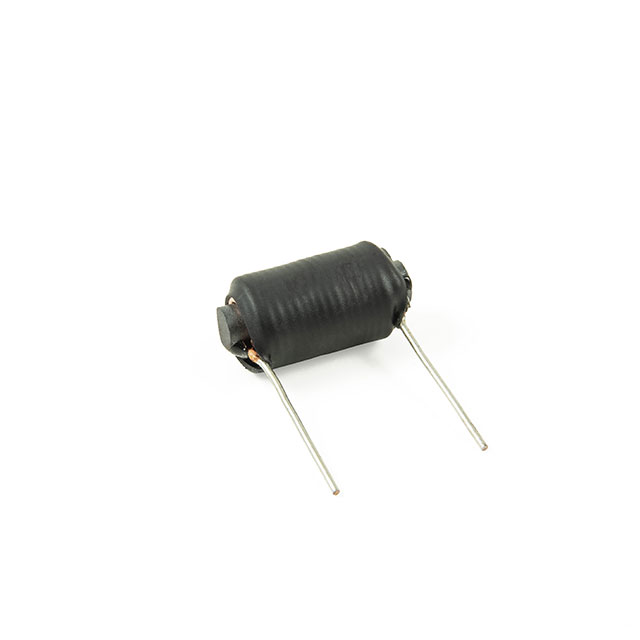

RHC50-3-270K-RC 27UH 10% 3AMP RADIAL HI. CURR. Allied Components International Datasheet	5 Marketplace	1 : $4.50 5 : $21.75 10 : $42.50 15 : $62.25 Box		Box	Active	±10%	-	Radial, Horizontal Cylinder	0.811" Dia x 0.875" L (20.60mm x 22.23mm)	Through Hole	Unshielded	-	-55°C ~ 105°C	35mOhm Max	-	8MHz	-	15A	-	1 kHz	Radial, Horizontal Cylinder	-	27 µH	3 A
APC30-683K-RC 68000UH 10% AXIAL POWER CHOKE Allied Components International Datasheet	15 Marketplace	1 : $2.75 5 : $12.50 10 : $22.50 15 : $29.70 Bag	APC30	Bag	Active	±10%	-	Axial	0.470" Dia x 0.920" L (11.94mm x 23.37mm)	Through Hole	-	-	-55°C ~ 125°C	46.9Ohm Max	-	-	-	108mA	-	22 kHz	Axial	-	68 mH	83 mA

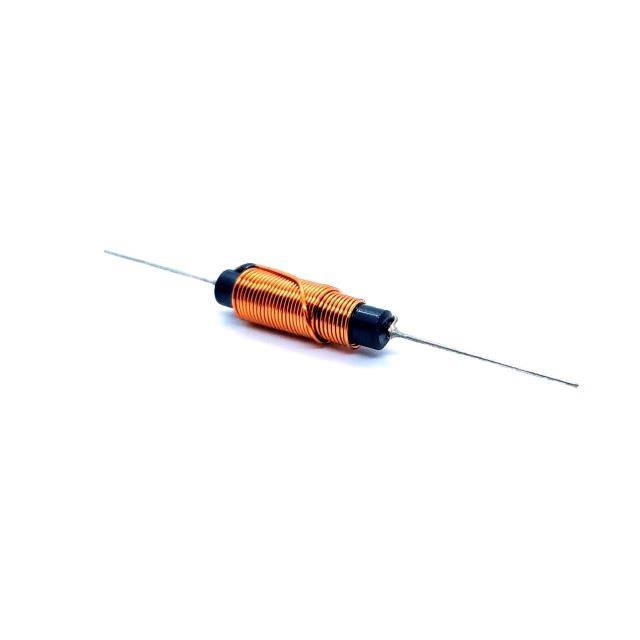

APC30-560K-RC 56UH 10% AXIAL POWER CHOKE Allied Components International Datasheet	20 Marketplace	1 : $2.75 5 : $12.50 10 : $22.50 15 : $29.70 Bag	APC30	Bag	Active	±10%	-	Axial	0.470" Dia x 0.920" L (11.94mm x 23.37mm)	Through Hole	-	-	-55°C ~ 125°C	37mOhm Max	-	-	-	3.66A	-	20 kHz	Axial	-	56 µH	3.2 A
