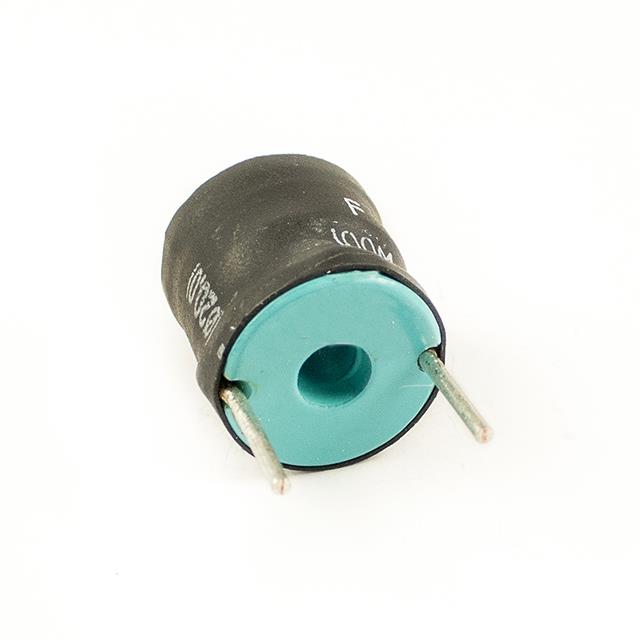

RDC20-150K-RC

Part Number
RDC20-150K-RC
Manufacturer Allied Components International
Other Part Numbers
3475-RDC20-150K-RC-ND
3475-RDC20-150K-RC
Description 15 UH 20% RADIAL DRUM CORE
Detailed Description 15 µH Unshielded Drum Core, Wirewound Inductor 9 A 13mOhm Max Radial
Datasheet Datasheet

Product Attributes

Category
Manufacturer Allied Components International
Series
RDC20
Packaging
Box
Part Status Active
Tolerance ±10%
Package / Case Radial
Size / Dimension 0.825" Dia (20.96mm)
Mounting Type Through Hole
Shielding Unshielded
Type Drum Core, Wirewound
Operating Temperature -40°C ~ 85°C
DC Resistance (DCR) 13mOhm Max
Current - Saturation (Isat) 25A
Inductance Frequency - Test 1 kHz
Supplier Device Package Radial
Height - Seated (Max) 0.840" (21.34mm)
Inductance 15 µH
Current Rating (Amps) 9 A

Documents & Media

RESOURCE TYPE LINK
Datasheets RDC20-150K-RC

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.4000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH info available upon request
RoHS Status RoHS Compliant

Available To Order

PACKAGING QUANTITY UNIT PRICE EXT PRICE
{{ p.name }} {{ numberFormat(p.buyQty) }} {{ priceFormat(p.unitPrice) }} {{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

{{ package.name }}

QUANTITY UNIT PRICE EXT PRICE
{{ numberFormat(price.break_quantity) }} {{ priceFormat(price.unit_price) }} {{ priceFormat(price.break_quantity * price.unit_price) }}
Detailed pricing is currently unavailable.
Detailed packaging information is temporarily unavailable.
