Fixed Inductors

Product Status

Active

Obsolete

Discontinued

Last Time Buy

Not For New Designs

Mounting Type

Bolt Mount

Brackets

Chassis Mount

Free Hanging (In-Line)

Surface Mount

Through Hole

User Defined

Shielding

Shielded

Unshielded

Ratings

AEC-Q200

Mfr Part #	Quantity	Price	Series	Package	Product Status	Tolerance	Features	Package / Case	Size / Dimension	Mounting Type	Shielding	Type	Operating Temperature	DC Resistance (DCR)	Q @ Freq	Frequency - Self Resonant	Ratings	Current - Saturation (Isat)	Material - Core	Inductance Frequency - Test	Supplier Device Package	Height - Seated (Max)	Inductance	Current Rating (Amps)

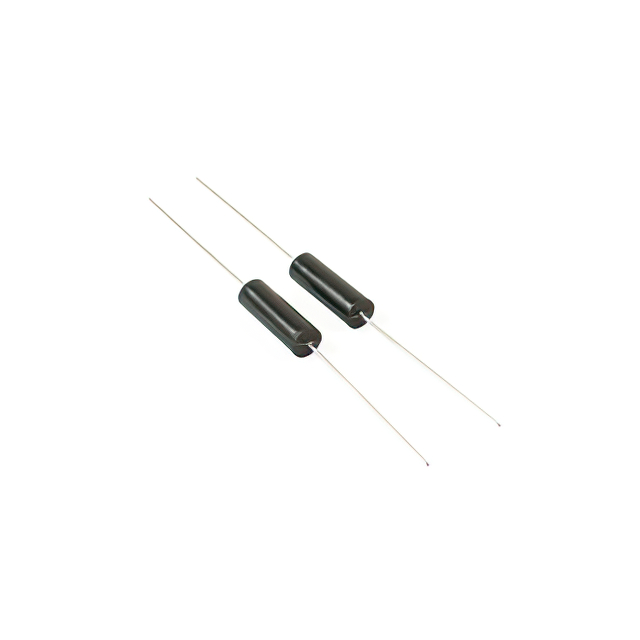

AS40-120J-RC 12UH 5% AXIAL SHIELDED IND. Allied Components International Datasheet	3 Marketplace	1 : $2.75 5 : $12.50 10 : $22.50 15 : $29.70 Bag	AS40	Bag	Active	±5%	-	Axial	0.162" Dia x 0.410" L (4.11mm x 10.41mm)	Through Hole	Shielded	-	-55°C ~ 125°C	2Ohm Max	55 @ 2.5MHz	44MHz	-	-	-	2.5 MHz	Axial	-	12 µH	200 mA
APC30-332K-RC 3300UH 10% AXIAL POWER CHOKE Allied Components International Datasheet	9 Marketplace	1 : $2.75 5 : $12.50 10 : $22.50 15 : $29.70 Bag	APC30	Bag	Active	±10%	-	Axial	0.470" Dia x 0.920" L (11.94mm x 23.37mm)	Through Hole	-	-	-55°C ~ 125°C	2.63Ohm Max	-	-	-	470mA	-	17 kHz	Axial	-	3.3 mH	400 mA
APC30-222K-RC 2200UH 10% AXIAL POWER CHOKE Allied Components International Datasheet	10 Marketplace	1 : $2.75 5 : $12.50 10 : $22.50 15 : $29.70 Bag	APC30	Bag	Active	±10%	-	Axial	0.470" Dia x 0.920" L (11.94mm x 23.37mm)	Through Hole	-	-	-55°C ~ 125°C	2Ohm Max	-	-	-	580mA	-	9 kHz	Axial	-	2.2 mH	500 mA

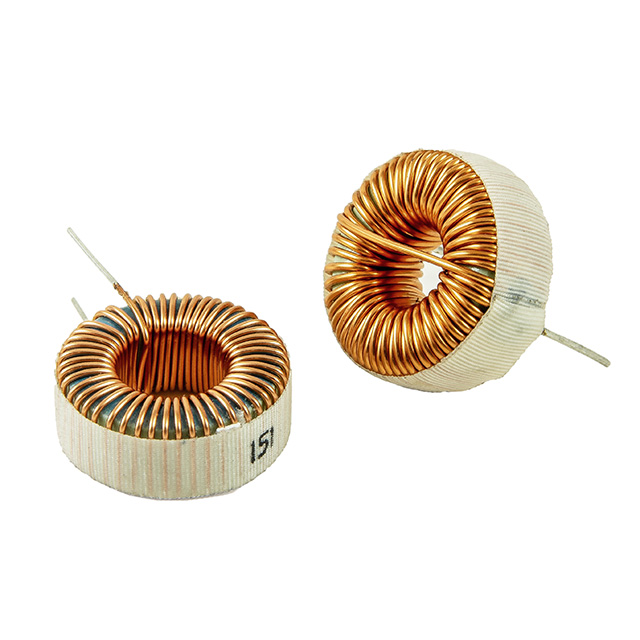

HTC100-181M-RC 180UH 20% Hrz Mnt Toroidal Chok Allied Components International Datasheet	5 Marketplace	1 : $2.50 5 : $11.25 10 : $21.50 15 : $31.50 Box	TC100	Box	Active	±20%	-	Radial, Horizontal (Open)	0.560" Dia (14.22mm)	Through Hole	Unshielded	Toroidal	-55°C ~ 105°C	490mOhm Max	-	-	-	1.3A	-	1 kHz	Radial	-	180 µH	1.5 A

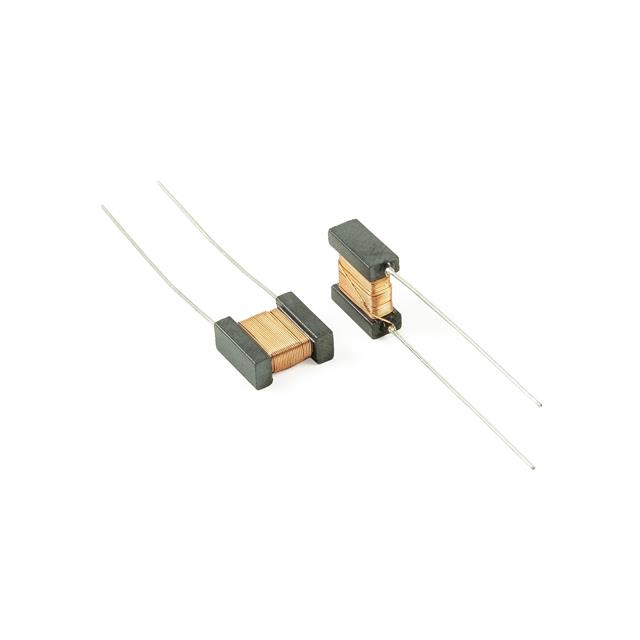

RFC20-5R0K-RC 5.0UH 10% RADIAL FLAT COIL Allied Components International Datasheet	24 Marketplace	1 : $1.50 5 : $6.25 10 : $11.50 15 : $16.50 Box		Box	Active	±10%	-	Radial	0.400" L x 0.125" W (10.16mm x 3.18mm)	Through Hole	Unshielded	Wirewound	-20°C ~ 100°C	80mOhm Max	40 @ 7.9MHz	-	-	-	-	7.9 MHz	Radial	0.400" (10.16mm)	5 µH	2.9 A
RDC60-182K-RC 1800UH 10% RADIAL DRUM CORE Allied Components International Datasheet	6 Marketplace	1 : $18.75 5 : $91.25 10 : $177.50 15 : $262.50 Box	RDC60	Box	Active	±10%	-	Radial, Vertical Cylinder	2.000" Dia (50.80mm)	Through Hole	Unshielded	Drum Core, Wirewound	-55°C ~ 125°C	241mOhm Max	-	-	-	6.3A	-	1 kHz	Radial	1.500" (38.10mm)	1.8 µH	7.2 A
HTC220LL-8R2M-RC 8.2UH 30% HRZMNT TOROIDAL CHOKE Allied Components International Datasheet	10 Marketplace	1 : $3.75 5 : $17.50 10 : $32.50 15 : $44.70 Tray		Tray	Active	±20%	-	Radial, Horizontal (Open)	1.100" Dia (27.94mm)	Through Hole	Unshielded	Toroidal	-55°C ~ 125°C	5mOhm Max	-	-	-	-	-	1 kHz	Radial	0.550" (13.97mm)	8.2 µH	15.1 A
RDC50-681K-RC 680uH +/-10% Radial Drum Core Allied Components International Datasheet	4 Marketplace	1 : $9.90 5 : $47.50 10 : $89.80 Box	RDC50	Box	Active	±10%	-	Radial, Vertical Cylinder	1.500" Dia (38.10mm)	Through Hole	Unshielded	Drum Core	-55°C ~ 125°C	115mOhm Max	-	-	-	7.4A	-	1 kHz	Radial	1.450" (36.83mm)	680 µH	9 A
RDC50-123K-RC 12000uH +/-10% Radial Drum Core Allied Components International Datasheet	5 Marketplace	1 : $9.90 5 : $47.50 10 : $89.80 Box	RDC50	Box	Active	±10%	-	Radial, Vertical Cylinder	1.500" Dia (38.10mm)	Through Hole	Unshielded	Drum Core	-55°C ~ 125°C	1.92Ohm Max	-	-	-	1.7A	-	1 kHz	Radial	1.450" (36.83mm)	12 mH	2 A
RDC40-150K-RC 15uH +/- 10% Radial Drum Core Allied Components International Datasheet	5 Marketplace	1 : $8.50 5 : $41.25 10 : $79.80 15 : $116.25 Box	RDC40	Box	Active	±10%	-	Radial, Vertical Cylinder	1.500" Dia (38.10mm)	Through Hole	Unshielded	Drum Core	-55°C ~ 125°C	6mOhm Max	-	-	-	49A	-	-	Radial	1.030" (26.16mm)	15 µH	27 A
