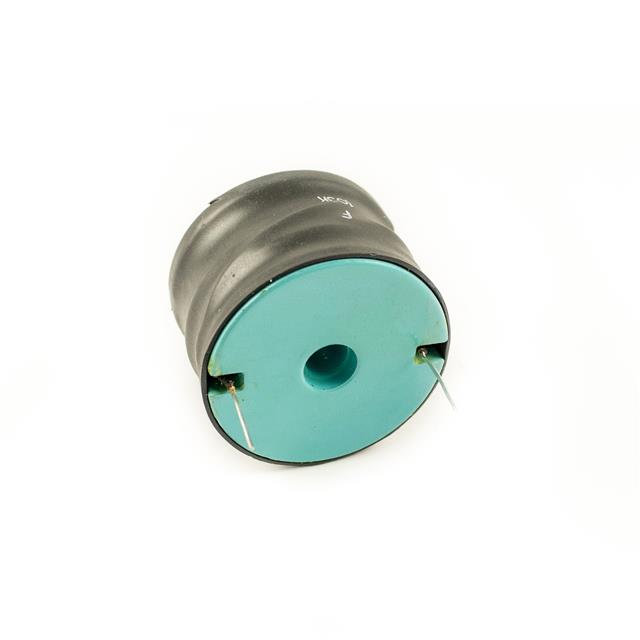

RDC40-150K-RC

RDC40-150K-RC

Part Number	RDC40-150K-RC
Manufacturer	Allied Components International
Other Part Numbers	3475-RDC40-150K-RC-ND 3475-RDC40-150K-RC
Description	15uH +/- 10% Radial Drum Core
Detailed Description	15 µH Unshielded Drum Core Inductor 27 A 6mOhm Max Radial, Vertical Cylinder
Datasheet	Datasheet

Product Attributes

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Allied Components International
Series		RDC40
Packaging		Box
Part Status		Active
Tolerance		±10%
Package / Case		Radial, Vertical Cylinder
Size / Dimension		1.500" Dia (38.10mm)
Mounting Type		Through Hole
Shielding		Unshielded
Type		Drum Core
Operating Temperature		-55°C ~ 125°C
DC Resistance (DCR)		6mOhm Max
Current - Saturation (Isat)		49A
Supplier Device Package		Radial
Height - Seated (Max)		1.030" (26.16mm)
Inductance		15 µH
Current Rating (Amps)		27 A

Documents & Media

RESOURCE TYPE		LINK
Datasheets		RDC40-150K-RC

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH info available upon request
RoHS Status		RoHS Compliant
