Diode Arrays_Rectifiers_Diodes_All Tested Limited_Integrated Circuits (ICs)_Semiconductors_Circuit Protection_Connectors_Cable Assemblies

Diode Arrays

Packaging

Bag

Box

Bulk

Cut Tape (CT)

Strip

Tape & Reel (TR)

Tray

Tube

Product Status

Active

Obsolete

Discontinued

Last Time Buy

Not For New Designs

Speed

Fast Recovery =< 500ns, > 200mA (Io)

No Recovery Time > 500mA (Io)

Small Signal =< 200mA (Io), Any Speed

Standard Recovery >500ns, > 200mA (Io)

Grade

Automotive

Military

Mfr Part #	Quantity	Price	Series	Package	Product Status	Package / Case	Mounting Type	Speed	Reverse Recovery Time (trr)	Technology	Diode Configuration	Current - Average Rectified (Io) (per Diode)	Supplier Device Package	Operating Temperature - Junction	Grade	Voltage - DC Reverse (Vr) (Max)	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Qualification

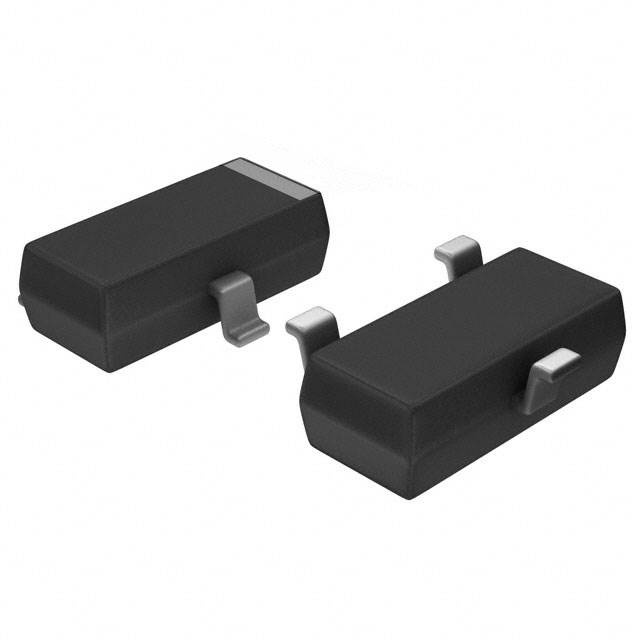

BAT 54-04 B5003 DIODE ARR SCHOTT 30V 200MA SOT23 IR (Infineon Technologies) Datasheet	0 In Stock	Obsolete		Tape & Reel (TR) Cut Tape (CT)	Obsolete	TO-236-3, SC-59, SOT-23-3	Surface Mount	Small Signal =< 200mA (Io), Any Speed	5 ns	Schottky	1 Pair Series Connection	200mA (DC)	PG-SOT23	150°C (Max)	-	30 V	800 mV @ 100 mA	2 µA @ 25 V	-
BAS 40-06 B5003 DIODE ARR SCHOTT 40V 120MA SOT23 IR (Infineon Technologies) Datasheet	0 In Stock	30,000 : $1,500.00 75,000 : $3,000.00 150,000 : $6,000.00 Tape & Reel (TR)		Tape & Reel (TR) Cut Tape (CT)	Obsolete	TO-236-3, SC-59, SOT-23-3	Surface Mount	Small Signal =< 200mA (Io), Any Speed	100 ps	Schottky	1 Pair Common Anode	120mA (DC)	PG-SOT23	150°C (Max)	-	40 V	1 V @ 40 mA	1 µA @ 30 V	-
BAT 64-06 B5003 DIODE ARR SCHOTT 40V 120MA SOT23 IR (Infineon Technologies) Datasheet	0 In Stock	Obsolete		Tape & Reel (TR)	Obsolete	TO-236-3, SC-59, SOT-23-3	Surface Mount	Small Signal =< 200mA (Io), Any Speed	5 ns	Schottky	1 Pair Common Anode	120mA	PG-SOT23	150°C (Max)	-	40 V	750 mV @ 100 mA	2 µA @ 30 V	-

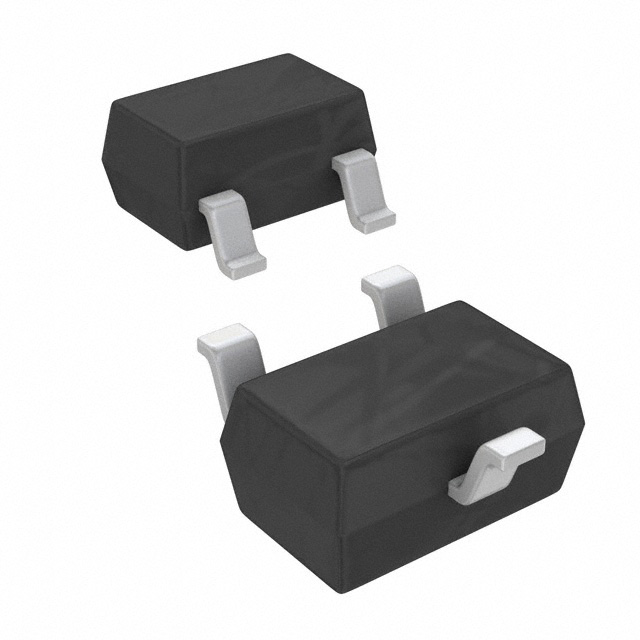

BAT6405WE6327HTSA1 DIODE ARR SCHOT 40V 250MA SOT323 IR (Infineon Technologies) Datasheet	0 In Stock	Obsolete	BAT64	Tape & Reel (TR)	Obsolete	SC-70, SOT-323	Surface Mount	Fast Recovery =< 500ns, > 200mA (Io)	5 ns	Schottky	1 Pair Common Cathode	250mA	PG-SOT323	150°C (Max)	Automotive	40 V	750 mV @ 100 mA	2 µA @ 30 V	AEC-Q101
BAV 99W H6433 DIODE ARRAY GP 80V 200MA SOT323 IR (Infineon Technologies) Datasheet	0 In Stock	Obsolete		Tape & Reel (TR)	Obsolete	SC-70, SOT-323	Surface Mount	Small Signal =< 200mA (Io), Any Speed	4 ns	Standard	1 Pair Series Connection	200mA (DC)	PG-SOT323	150°C (Max)	-	80 V	1.25 V @ 150 mA	150 nA @ 70 V	-
BAV199E6359HTMA1 DIODE ARRAY GP 80V 200MA SOT23 IR (Infineon Technologies) Datasheet	0 In Stock	Obsolete		Tape & Reel (TR)	Obsolete	TO-236-3, SC-59, SOT-23-3	Surface Mount	Small Signal =< 200mA (Io), Any Speed	1.5 µs	Standard	1 Pair Series Connection	200mA (DC)	PG-SOT23	150°C (Max)	Automotive	80 V	1.25 V @ 150 mA	5 nA @ 75 V	AEC-Q101

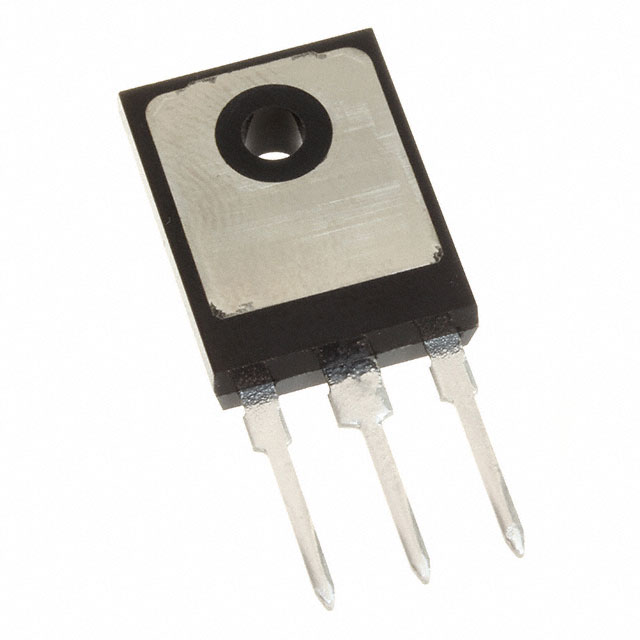

IDW40G65C5BXKSA1 DIODE ARR SIC 650V 20A TO247-3 IR (Infineon Technologies) Datasheet	0 In Stock	Discontinued	CoolSiC™+	Tube	Discontinued	TO-247-3	Through Hole	Fast Recovery =< 500ns, > 200mA (Io)	-	SiC (Silicon Carbide) Schottky	1 Pair Common Cathode	20A (DC)	PG-TO247-3	-55°C ~ 175°C	-	650 V	1.7 V @ 20 A	210 µA @ 650 V	-
IDW24G65C5BXKSA1 DIODE ARR SIC 650V 12A TO247-3 IR (Infineon Technologies) Datasheet	0 In Stock	Discontinued	CoolSiC™+	Tube	Discontinued	TO-247-3	Through Hole	Fast Recovery =< 500ns, > 200mA (Io)	-	SiC (Silicon Carbide) Schottky	1 Pair Common Cathode	12A (DC)	PG-TO247-3	-55°C ~ 175°C	-	650 V	1.7 V @ 12 A	190 µA @ 650 V	-

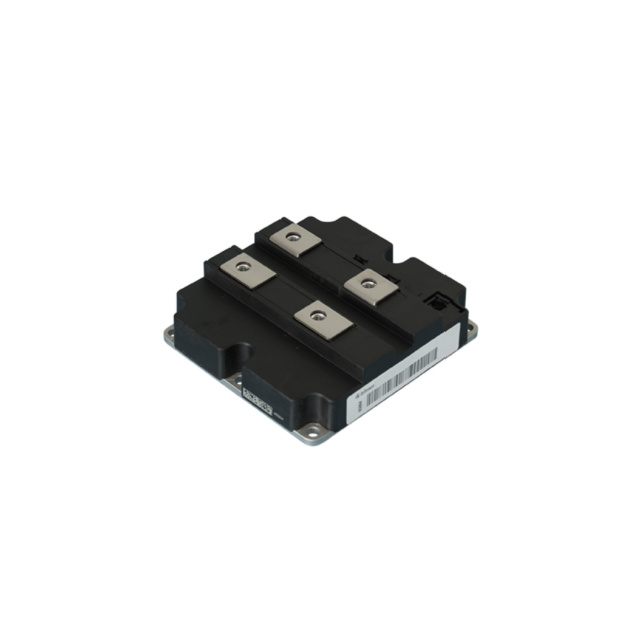

DD1200S33KL2CB5NOSA1 DIODE MODULE GP 3300V 1200A IR (Infineon Technologies) Datasheet	0 In Stock	Obsolete		Tray	Obsolete	Block, 4 Lead	Chassis Mount	Standard Recovery >500ns, > 200mA (Io)	-	Standard	2 Independent	1200A (DC)	Module	-40°C ~ 125°C	-	3300 V	3.5 V @ 1200 A	-	-

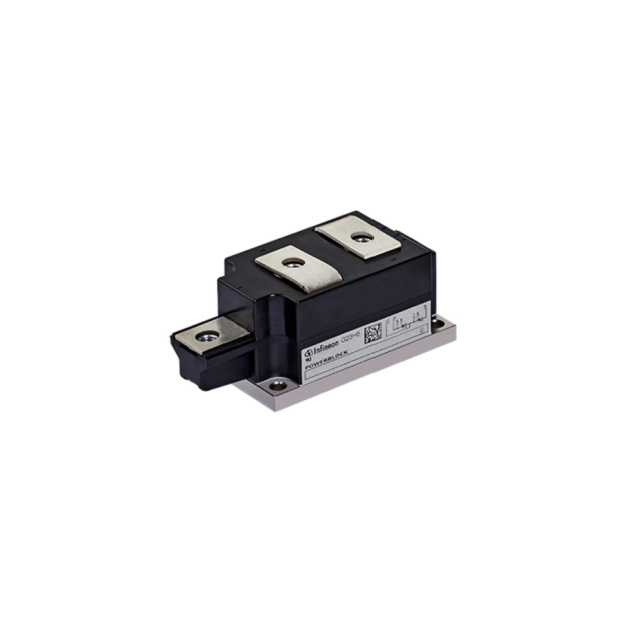

DD350N12KHPSA1 DIODE MODULE GP 1.2KV 350A IR (Infineon Technologies) Datasheet	0 In Stock	Obsolete		Bulk	Obsolete	Module	Chassis Mount	Standard Recovery >500ns, > 200mA (Io)	-	Standard	1 Pair Series Connection	350A	Module	-40°C ~ 150°C	-	1200 V	1.28 V @ 1000 A	30 mA @ 1200 V	-
