Common Mode Chokes

Product Status

Active

Obsolete

Discontinued

Last Time Buy

Not For New Designs

Features

A2B

ESD

Industrial

PFC

TVS Diode ESD Protection

Filter Type

Power, Signal Line

Power Line

Signal Line

Mounting Type

Chassis Mount

DIN Rail

Surface Mount

Surface Mount, Wettable Flank

Through Hole

Wire Lead

Number of Lines

Ratings

AEC-Q200

Grade

Automotive

Qualification

AEC-Q200

Mfr Part #	Quantity	Price	Series	Package	Product Status	Features	Package / Case	Filter Type	Size / Dimension	Mounting Type	Number of Lines	Operating Temperature	Approval Agency	Ratings	Height (Max)	Voltage Rating - AC	Voltage Rating - DC	Current Rating (Max)	DC Resistance (DCR) (Max)	Grade	Inductance @ Frequency	Impedance @ Frequency	Qualification

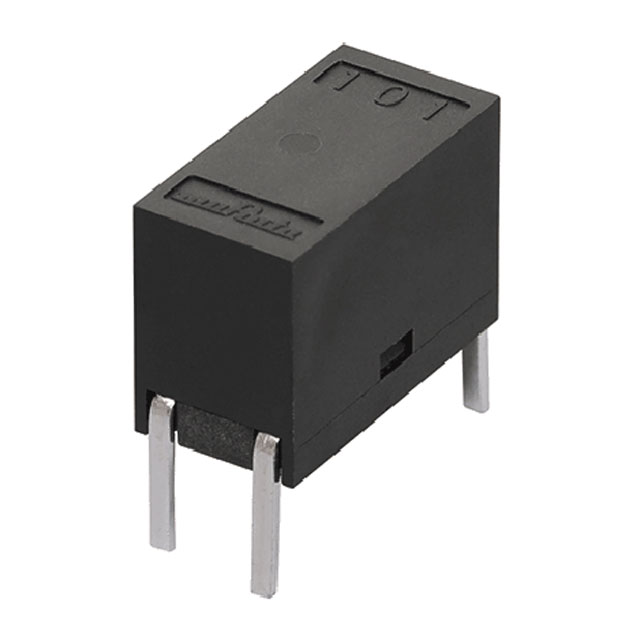

PLT10HN101150P0B CMC 15A 2LN 100 OHM TH TOKO / Murata Datasheet	3,268 In Stock	1 : $5.85 10 : $47.40 25 : $105.25 50 : $199.00 100 : $369.00 300 : $1,089.00 500 : $1,755.00 1,000 : $3,280.00 2,500 : $7,775.00 Bulk	PLT10H	Bulk	Active	-	Vertical, 4 PC Pad	Power Line	0.508" L x 0.260" W (12.90mm x 6.60mm)	Through Hole	2	-55°C ~ 125°C	-	-	0.366" (9.30mm)	-	300V	15A	2.3mOhm	-	-	100 Ohms @ 10 MHz	-
PLT10HN450180P0B CMC 18A 2LN 45 OHM TH TOKO / Murata Datasheet	200 In Stock	1 : $6.56 10 : $53.10 25 : $118.00 50 : $223.00 100 : $413.00 300 : $1,221.00 500 : $1,970.00 1,000 : $3,670.00 2,500 : $8,725.00 Bulk	PLT10HN	Bulk	Active	-	Vertical, 4 PC Pin	Power Line	0.508" L x 0.260" W (12.90mm x 6.60mm)	Through Hole	2	-55°C ~ 125°C	-	-	0.366" (9.30mm)	-	300V	18A	1.8mOhm	-	-	45 Ohms @ 100 MHz	-
PLT09HN2003R0P1B CMC 3A 2LN TH TOKO / Murata Datasheet	13 In Stock	1 : $4.90 10 : $42.00 25 : $102.50 50 : $200.00 100 : $300.00 300 : $870.00 500 : $1,400.00 1,000 : $2,660.00 Bulk	PLT09	Bulk	Active	-	Horizontal, 4 PC Pin	Power Line	0.551" L x 0.512" W (14.00mm x 13.00mm)	Through Hole	2	-40°C ~ 85°C	-	-	0.315" (8.00mm)	-	50V	3A	30mOhm	-	-	-	-
PLT10HN401100P0B CMC 10A 2LN 400 OHM TH TOKO / Murata Datasheet	103 In Stock	1 : $6.56 10 : $53.10 25 : $118.00 50 : $223.00 100 : $413.00 300 : $1,221.00 500 : $1,970.00 1,000 : $3,670.00 2,500 : $8,725.00 Bulk	PLT10H	Bulk	Active	-	Vertical, 4 PC Pad	Power Line	0.508" L x 0.260" W (12.90mm x 6.60mm)	Through Hole	2	-55°C ~ 125°C	-	-	0.366" (9.30mm)	-	100V	10A	4.1mOhm	-	-	400 Ohms @ 10 MHz	-

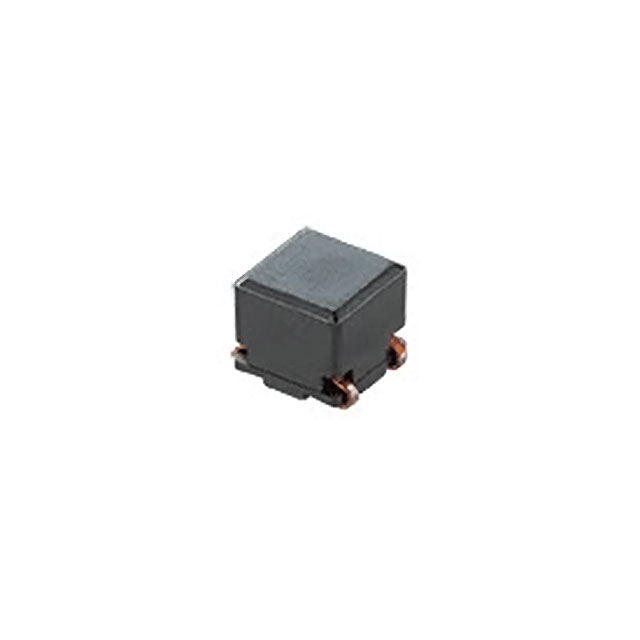

PLT5BPH2014R4SNL CMC 2.4A 2LN 200OHM SMD AEC-Q200 TOKO / Murata Datasheet	2 In Stock	1 : $2.52 10 : $18.50 25 : $45.25 50 : $88.50 100 : $160.00 Cut Tape (CT)	PLT5BPH	Tape & Reel (TR) Cut Tape (CT)	Active	-	Vertical, 4 PC Pad	-	0.197" L x 0.197" W (5.00mm x 5.00mm)	Surface Mount	2	-55°C ~ 150°C	-	AEC-Q200	0.197" (5.00mm)	-	80V	2.4A	9.1mOhm	-	-	200 Ohms @ 10 MHz	-
PLT5BPH1015R6SNL CMC 2.9A 2LN 100OHM SMD AEC-Q200 TOKO / Murata Datasheet	373 In Stock	300 : $468.00 600 : $810.00 1,500 : $1,890.00 3,000 : $3,600.00 7,500 : $8,700.00 Tape & Reel (TR)	PLT5BPH	Tape & Reel (TR) Cut Tape (CT)	Active	-	Vertical, 4 PC Pad	-	0.197" L x 0.197" W (5.00mm x 5.00mm)	Surface Mount	2	-55°C ~ 150°C	-	AEC-Q200	0.197" (5.00mm)	-	80V	2.9A	5mOhm (Typ)	-	-	100 Ohms @ 10 MHz	-

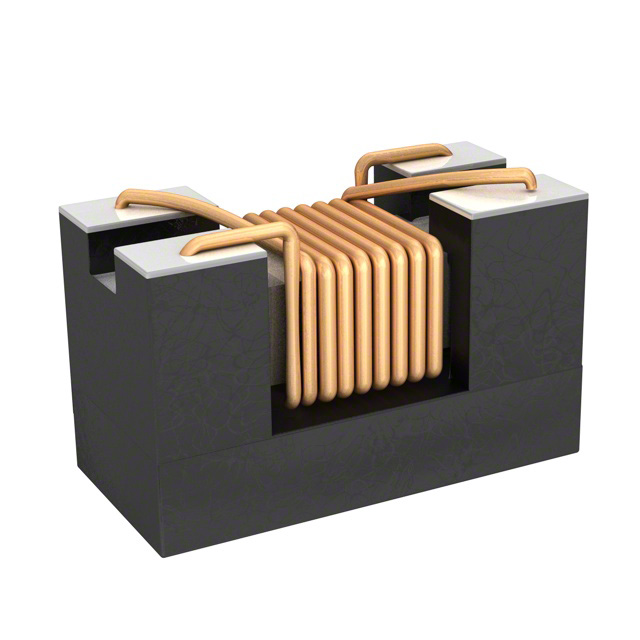

DLW32SH101XF2L CMC 100UH 115MA 2LN SMD AEC-Q200 TOKO / Murata Datasheet	5,504 In Stock	1,500 : $1,590.00 3,000 : $3,060.00 7,500 : $7,425.00 10,500 : $9,870.00 Tape & Reel (TR)	DLW32	Tape & Reel (TR) Cut Tape (CT)	Active	-	Horizontal, 4 PC Pad	-	0.126" L x 0.098" W (3.20mm x 2.50mm)	Surface Mount	2	-40°C ~ 125°C	-	AEC-Q200	0.098" (2.50mm)	-	50V	115mA	2.1Ohm	-	100 µH @ 100 kHz	-	-

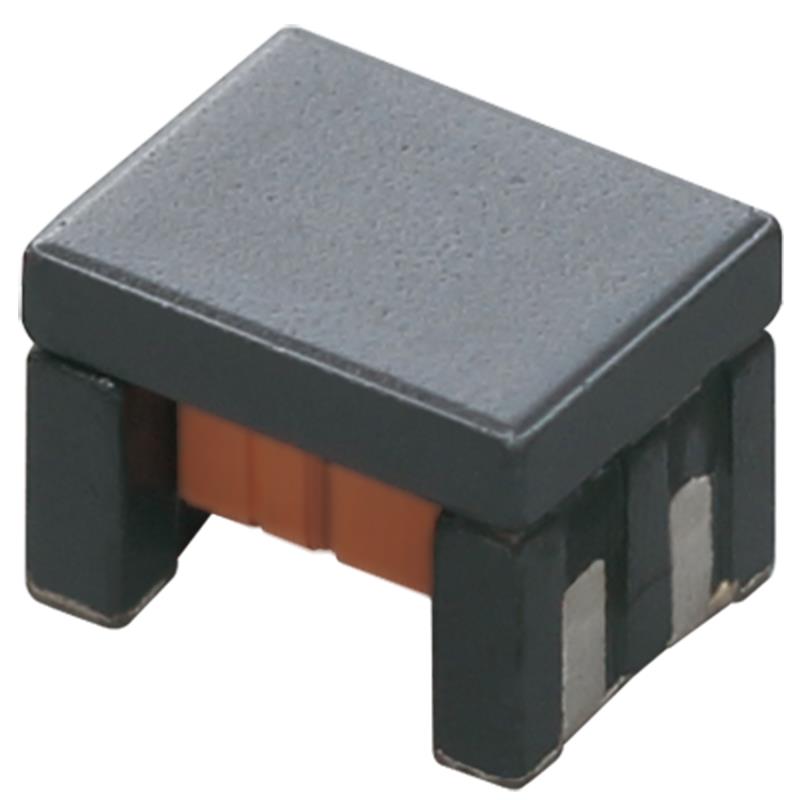

DLW31SN900SQ2L CMC 370MA 2LN 90 OHM SMD TOKO / Murata Datasheet	75,680 In Stock	2,000 : $1,000.00 4,000 : $1,960.00 6,000 : $2,820.00 10,000 : $4,500.00 Tape & Reel (TR)	DLW31	Tape & Reel (TR) Cut Tape (CT)	Active	-	Horizontal, 4 PC Pad	Signal Line	0.126" L x 0.063" W (3.20mm x 1.60mm)	Surface Mount	2	-40°C ~ 85°C	-	-	0.083" (2.10mm)	-	50V	370mA	300mOhm	-	-	90 Ohms @ 100 MHz	-
DLW32MH101XT2L CMC 100UH 100MA 2LN SMD AEC-Q200 TOKO / Murata Datasheet	3,988 In Stock	1,500 : $2,250.00 3,000 : $4,350.00 Tape & Reel (TR)	DLW32	Tape & Reel (TR) Cut Tape (CT)	Active	-	Horizontal, 4 PC Pad	-	0.126" L x 0.098" W (3.20mm x 2.50mm)	Surface Mount	2	-40°C ~ 125°C	-	AEC-Q200	0.098" (2.50mm)	-	50V	100mA	3.12Ohm	-	100 µH @ 100 kHz	-	-
PLT5BPH5013R1SNL CMC 1.8A 2LN 500OHM SMD AEC-Q200 TOKO / Murata Datasheet	50,689 In Stock	300 : $468.00 600 : $810.00 1,500 : $1,890.00 3,000 : $3,600.00 7,500 : $8,700.00 Tape & Reel (TR)	PLT5BPH	Tape & Reel (TR) Cut Tape (CT)	Active	-	Vertical, 4 PC Pad	-	0.197" L x 0.197" W (5.00mm x 5.00mm)	Surface Mount	2	-55°C ~ 150°C	-	-	0.197" (5.00mm)	-	80V	1.8A	22.1mOhm	-	-	500 Ohms @ 10 MHz	-
