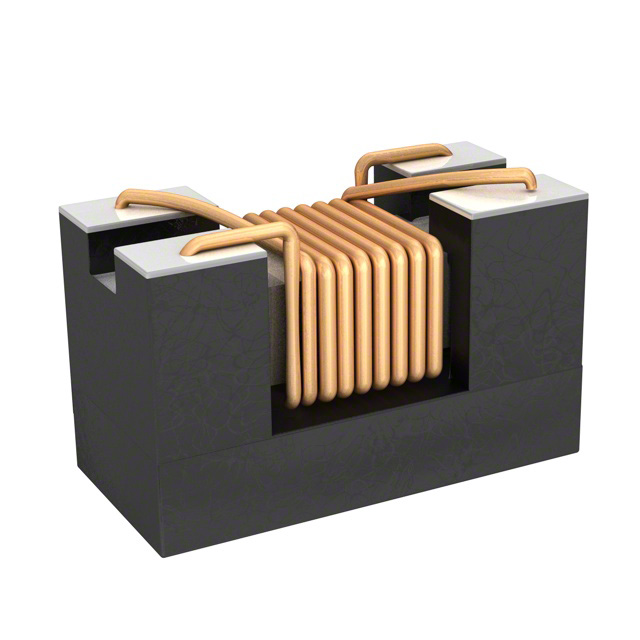

DLW31SN900SQ2L

DLW31SN900SQ2L

Part Number	DLW31SN900SQ2L
Manufacturer	TOKO / Murata
Other Part Numbers	490-1067-2-ND 490-1067-1-ND 490-1067-6-ND 490-1067-2 490-1067-1 490-1067-6 PLW3216S900SQ2T1
Description	CMC 370MA 2LN 90 OHM SMD
Detailed Description	2 Line Common Mode Choke Surface Mount 90 Ohms @ 100 MHz 370mA DCR 300mOhm
Manufacturer Standard Lead Time	17 weeks
Datasheet	Datasheet

Product Attributes

Category		Filters Common Mode Chokes
Manufacturer		TOKO / Murata
Series		DLW31
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		Horizontal, 4 PC Pad
Filter Type		Signal Line
Size / Dimension		0.126" L x 0.063" W (3.20mm x 1.60mm)
Mounting Type		Surface Mount
Number of Lines		2
Operating Temperature		-40°C ~ 85°C
Height (Max)		0.083" (2.10mm)
Voltage Rating - DC		50V
Current Rating (Max)		370mA
DC Resistance (DCR) (Max)		300mOhm
Impedance @ Frequency		90 Ohms @ 100 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		DLW31SN900SQ2L
Datasheets		DLx Series Datasheet
Datasheets		DLW31S Series End
Datasheets		DLW31S Series Pin Out
Datasheets		DLW31S Series Side
Datasheets		DL(W,M,P) Part Numbering

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8548.00.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 75680

Can ship immediately.
