Arrays, Signal Transformers

Mfr Part #	Quantity	Price	Series	Package	Product Status	Tolerance	Package / Case	Size / Dimension	Mounting Type	Shielding	Operating Temperature	Height	Ratings	Number of Coils	Inductance - Connected In Series	Inductance - Connected In Parallel	Current Rating - Parallel	Current Rating - Series	Current Saturation - Parallel	Current Saturation - Series	DC Resistance (DCR) - Parallel	DC Resistance (DCR) - Series

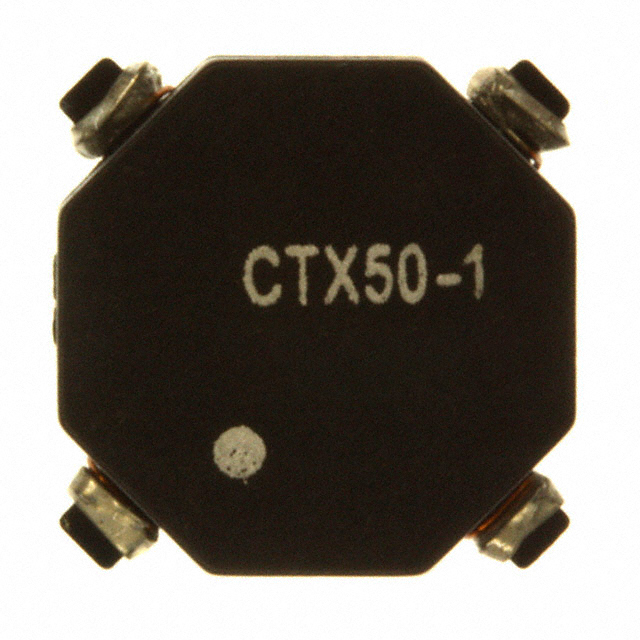

CTX50-1-R INDUCT ARRAY 2 COIL 50.63UH SMD PowerStor (Eaton) Datasheet	1,135 In Stock	1,100 : $3,905.00 Tape & Reel (TR)	OCTA-PAC®	Tape & Reel (TR) Cut Tape (CT)	Active	±20%	Nonstandard	0.450" L x 0.450" W (11.43mm x 11.43mm)	Surface Mount	Unshielded	-40°C ~ 85°C	0.165" (4.19mm)	-	2	202.5 µH	50.63 µH	640 mA	320 mA	-	-	365mOhm Max	1.461Ohm Max
SDQ25-330-R INDUCT ARRAY 2 COIL 33.8UH SMD PowerStor (Eaton) Datasheet	2,298 In Stock	2,900 : $7,134.00 Tape & Reel (TR)	SDQ	Tape & Reel (TR) Cut Tape (CT)	Active	±20%	Nonstandard	0.205" L x 0.205" W (5.20mm x 5.20mm)	Surface Mount	Shielded	-40°C ~ 125°C	0.098" (2.50mm)	-	2	135.2 µH	33.8 µH	812 mA	406 mA	692 mA	346 mA	379.5mOhm	1.52Ohm
PM3602-300-RC INDUCT ARRAY 2 COIL 300UH SMD J.W. Miller / Bourns Datasheet	6,430 In Stock	400 : $420.00 800 : $768.00 1,200 : $1,116.00 2,800 : $2,492.00 10,000 : $8,200.00 Tape & Reel (TR)	PM3600	Tape & Reel (TR) Cut Tape (CT)	Active	±20%	Nonstandard	0.452" L x 0.354" W (11.48mm x 8.99mm)	Surface Mount	Unshielded	-55°C ~ 125°C	0.225" (5.72mm)	-	2	1.2 mH	300 µH	320 mA	160 mA	-	-	1.31Ohm Max	5.24Ohm Max
CL-1-2 INDUCT ARRAY 2 COIL 18MH CHA MNT Signal Transformer Datasheet	0 In Stock	1 : $27.95 10 : $265.60 Box	CL	Box	Active	-	Nonstandard	2.874" L x 1.752" W (73.00mm x 44.50mm)	Chassis Mount	Unshielded	-	2.311" (58.70mm)	-	2	72 mH	18 mH	2 A	1 A	-	-	350mOhm	1.4Ohm
P0177NLT INDUCT ARRAY 2 COIL 10.4UH SMD Pulse Larsen Antenna Datasheet	390 In Stock	500 : $1,560.00 1,000 : $2,910.00 2,500 : $6,900.00 Tape & Reel (TR)	Polecat	Tape & Reel (TR) Cut Tape (CT)	Active	±10%	Nonstandard	0.500" L x 0.500" W (12.70mm x 12.70mm)	Surface Mount	Unshielded	-40°C ~ 130°C	0.215" (5.46mm)	-	2	41.7 µH	10.4 µH	3.8 A	1.89 A	-	-	29.8mOhm Max	120mOhm Max
PF0552.472NLT INDUCT ARRAY 2 COIL 5.3UH SMD Pulse Larsen Antenna Datasheet	1,984 In Stock	500 : $575.00 1,000 : $1,080.00 2,500 : $2,625.00 5,000 : $5,050.00 Tape & Reel (TR)	PF0552NL	Tape & Reel (TR) Cut Tape (CT)	Active	±20%	Nonstandard	0.492" L x 0.492" W (12.50mm x 12.50mm)	Surface Mount	Shielded	-40°C ~ 125°C	0.236" (6.00mm)	-	2	21 µH	5.3 µH	8.5 A	4.3 A	9.8 A	4.9 A	9.2mOhm Max	37mOhm Max
PF0552.333NLT INDUCT ARRAY 2 COIL 34UH SMD Pulse Larsen Antenna Datasheet	1,065 In Stock	500 : $575.00 1,000 : $1,080.00 2,500 : $2,625.00 5,000 : $5,050.00 Tape & Reel (TR)	PF0552NL	Tape & Reel (TR) Cut Tape (CT)	Active	±20%	Nonstandard	0.492" L x 0.492" W (12.50mm x 12.50mm)	Surface Mount	Shielded	-40°C ~ 125°C	0.236" (6.00mm)	-	2	135 µH	34 µH	3.7 A	1.9 A	3.9 A	2 A	54mOhm Max	220mOhm Max
PF0553.472NLT INDUCT ARRAY 2 COIL 4.8UH SMD Pulse Larsen Antenna Datasheet	790 In Stock	400 : $512.00 800 : $936.00 1,200 : $1,356.00 2,800 : $3,052.00 Tape & Reel (TR)	PF0553NL	Tape & Reel (TR) Cut Tape (CT)	Active	±20%	Nonstandard	0.492" L x 0.492" W (12.50mm x 12.50mm)	Surface Mount	Shielded	-40°C ~ 125°C	0.315" (8.00mm)	-	2	19 µH	4.8 µH	8.1 A	4.1 A	16 A	8.2 A	9.2mOhm Max	37mOhm Max
SRF1260-8R2Y INDUCT ARRAY 2 COIL 8.2UH SMD J.W. Miller / Bourns Datasheet	1,079 In Stock	400 : $312.00 800 : $560.00 1,200 : $804.00 2,800 : $1,820.00 10,000 : $6,100.00 Tape & Reel (TR)	SRF1260	Tape & Reel (TR) Cut Tape (CT)	Active	±30%	Nonstandard	0.492" L x 0.492" W (12.50mm x 12.50mm)	Surface Mount	Shielded	-40°C ~ 125°C	0.244" (6.20mm)	-	2	32.8 µH	8.2 µH	5.54 A	2.77 A	7.89 A	3.93 A	19.4mOhm Max	73.7mOhm Max
PM3602-150-RC INDUCT ARRAY 2 COIL 150UH SMD J.W. Miller / Bourns Datasheet	529 In Stock	400 : $420.00 800 : $768.00 1,200 : $1,116.00 2,800 : $2,492.00 10,000 : $8,200.00 Tape & Reel (TR)	PM3600	Tape & Reel (TR) Cut Tape (CT)	Active	±20%	Nonstandard	0.452" L x 0.354" W (11.48mm x 8.99mm)	Surface Mount	Unshielded	-55°C ~ 125°C	0.225" (5.72mm)	-	2	600 µH	150 µH	470 mA	240 mA	-	-	600mOhm Max	2.4Ohm Max
