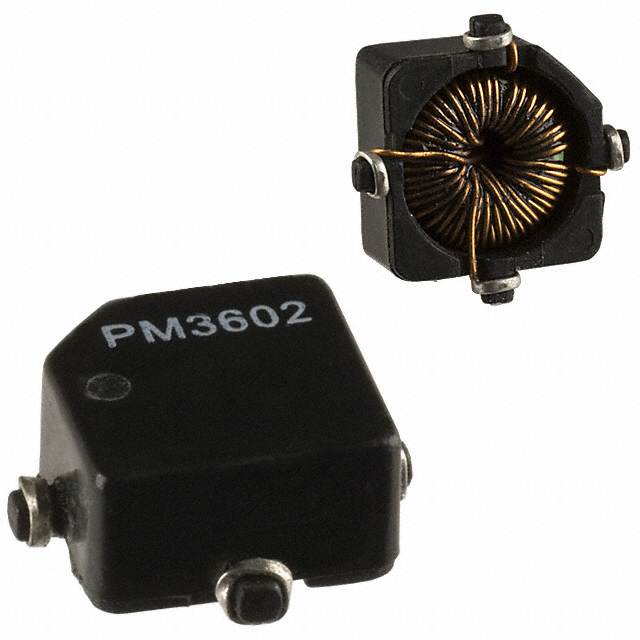

PM3602-150-RC

PM3602-150-RC

Part Number	PM3602-150-RC
Manufacturer	J.W. Miller / Bourns
Other Part Numbers	118-PM3602-150-RCTR-ND 118-PM3602-150-RCCT-ND 118-PM3602-150-RCDKR-ND Q2656215 PM3602150RC PC3602-150-RC 118-PM3602-150-RCCT M10144CT M10144DKR M10144TR-ND M10144CT-ND PM3602-150-RCINACTIVE 118-PM3602-150-RCDKR M10144DKR-ND 118-PM3602-150-RCTR M10144TR PM3602-150-RC-ND
Description	INDUCT ARRAY 2 COIL 150UH SMD
Detailed Description	Unshielded 2 Coil Inductor Array 600 µH Inductance - Connected in Series 150 µH Inductance - Connected in Parallel 600mOhm Max DC Resistance (DCR) - Parallel 470 mA Nonstandard
Manufacturer Standard Lead Time	18 weeks
Datasheet	Datasheet

Product Attributes

Category		Inductors, Coils, Chokes Arrays, Signal Transformers
Manufacturer		J.W. Miller / Bourns
Series		PM3600
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±20%
Package / Case		Nonstandard
Size / Dimension		0.452" L x 0.354" W (11.48mm x 8.99mm)
Mounting Type		Surface Mount
Shielding		Unshielded
Operating Temperature		-55°C ~ 125°C
Height		0.225" (5.72mm)
Number of Coils		2
Inductance - Connected In Series		600 µH
Inductance - Connected In Parallel		150 µH
Current Rating - Parallel		470 mA
Current Rating - Series		240 mA
DC Resistance (DCR) - Parallel		600mOhm Max
DC Resistance (DCR) - Series		2.4Ohm Max

Documents & Media

RESOURCE TYPE		LINK
Datasheets		PM3602-150-RC
Datasheets		PM3602 Series Material Declaration
Datasheets		Bourns REACH
Datasheets		RoHS PM3700-RC, PM3602-RC, PM3604-RC Series
Datasheets		Magnetic products Oct/2013
Datasheets		PM3602, PM3604 Parallel Mode

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8504.50.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 529

Can ship immediately.
