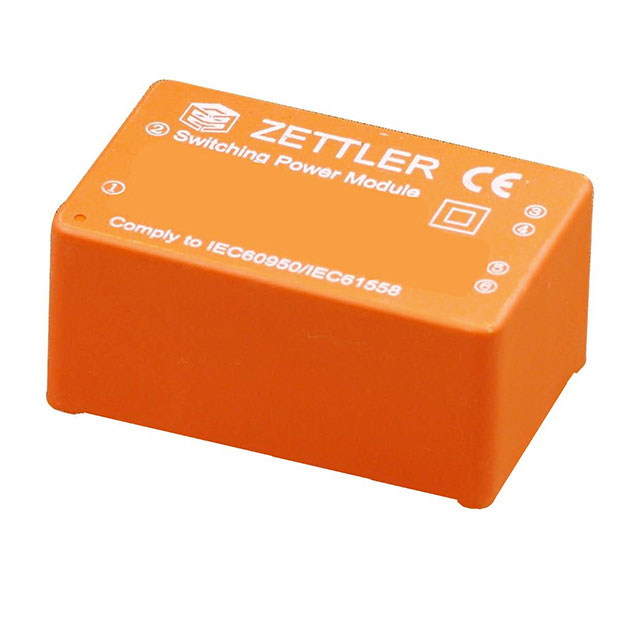

ZPL15S1500WS

ZPL15S1500WS

Part Number	ZPL15S1500WS
Manufacturer	Zettler Magnetics
Other Part Numbers	3388-ZPL15S1500WS-ND 3388-ZPL15S1500WS
Description	15W AC-DC PWR SUPPLY WIDE INPUT
Detailed Description	Enclosed AC DC Converters 1 Output 15V 1A 90 ~ 305 VAC, 120 ~ 430 VDC Input
Manufacturer Standard Lead Time	17 weeks
Datasheet	Datasheet

Product Attributes

Category		Power Supplies - Board Mount AC DC Converters
Manufacturer		Zettler Magnetics
Series		ZPL15 (15W)
Packaging		Tray
Part Status		Active
Package / Case		4-DIP Module
Size / Dimension		2.06" L x 1.07" W x 1.02" H (52.4mm x 27.2mm x 26.0mm)
Mounting Type		Through Hole
Voltage - Input		90 ~ 305 VAC, 120 ~ 430 VDC
Type		Enclosed
Operating Temperature		-40°C ~ 70°C (With Derating)
Applications		ITE (Commercial)
Approval Agency		CB, TUV, UL
Efficiency		82%
Current - Output (Max)		1A
Voltage - Output 1		15V
Power (Watts)		15 W
Number of Outputs		1
Standard Number		62368-1

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ZPL15S1500WS

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.40.9510
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 1080

Can ship immediately.
