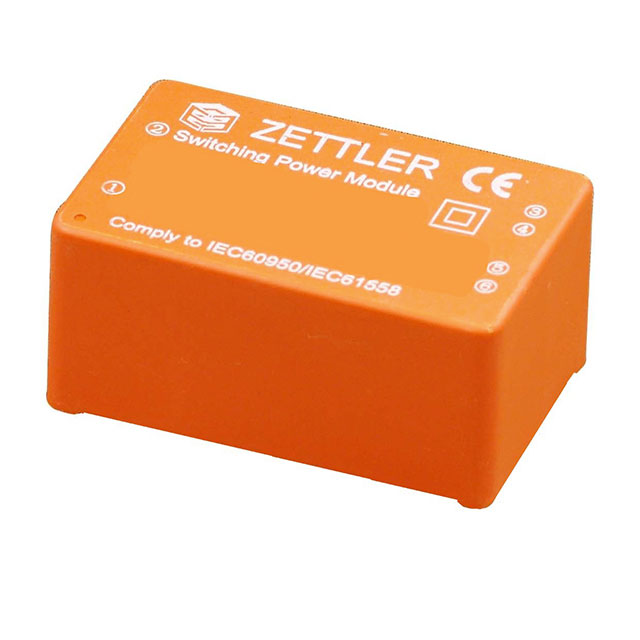

ZP05S1200WB _ AC DC Converters_Power Supplies

Part Number	ZP05S1200WB
Manufacturer	Zettler Magnetics
Other Part Numbers	3388-ZP05S1200WB-ND 3388-ZP05S1200WB
Description	5W AC-DC PWR SUPPLY UL/TUV/CE
Detailed Description	Enclosed AC DC Converters 1 Output 12V 420mA 90 ~ 264 VAC, 100 ~ 370 VDC Input
Manufacturer Standard Lead Time	18 weeks
Datasheet	Datasheet

Category		Power Supplies - Board Mount AC DC Converters
Manufacturer		Zettler Magnetics
Series		ZP05SXX00WB (5W)
Packaging		Tube
Part Status		Active
Features		Universal Input
Package / Case		4-DIP Module
Size / Dimension		1.26" L x 1.07" W x 0.76" H (32.1mm x 27.1mm x 19.3mm)
Mounting Type		Through Hole
Voltage - Input		90 ~ 264 VAC, 100 ~ 370 VDC
Type		Enclosed
Operating Temperature		-25°C ~ 50°C
Applications		Household Appliances, ITE (Commercial)
Approval Agency		CE
Efficiency		70%
Current - Output (Max)		420mA
Load Regulation		±3%
Line Regulation		±2%
Voltage - Output 1		12V
Power (Watts)		5.04 W
Number of Outputs		1
Standard Number		62368-1

RESOURCE TYPE		LINK
Datasheets		ZP05S1200WB

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.40.9510
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
