ZLDO500T8TA

ZLDO500T8TA

Part Number	ZLDO500T8TA
Manufacturer	Zetex Semiconductors (Diodes Inc.)
Other Part Numbers	ZLDO500T8TR-ND ZLDO500T8CT-ND ZLDO500T8CT ZLDO500T8DKRINACTIVE ZLDO500T8TR-NDR ZLDO500T8TR ZLDO500T8DKR ZLDO500T8DKR-ND ZLDO500T8CT-NDR ZLDO500T8 Q842401
Description	IC REG LINEAR 5V 300MA SM8
Detailed Description	Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SM8
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Manufacturer		Zetex Semiconductors (Diodes Inc.)
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

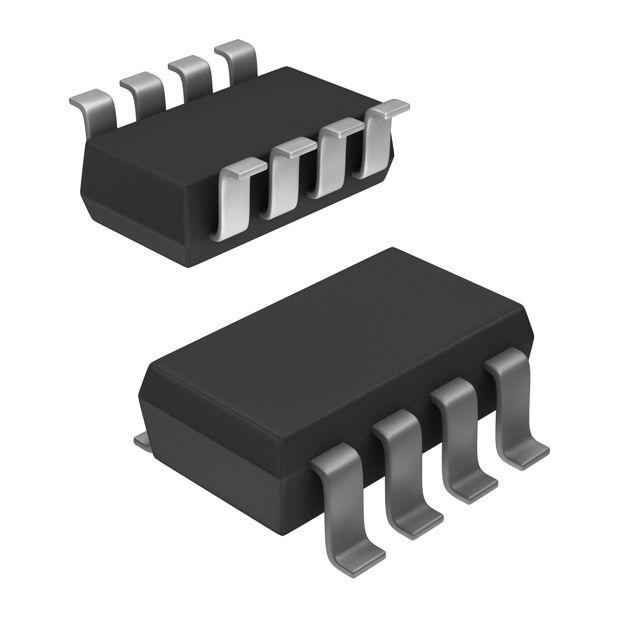

Package / Case		SOT-223-8
Output Type		Fixed
Mounting Type		Surface Mount
Current - Output		300mA
Operating Temperature		-40°C ~ 85°C
Output Configuration		Positive
Current - Quiescent (Iq)		1 mA
Voltage - Input (Max)		20V
Number of Regulators		1
Supplier Device Package		SM8
Voltage - Output (Min/Fixed)		5V
Control Features		Low Battery Detection
Voltage Dropout (Max)		0.2V @ 300mA
Protection Features		Over Temperature

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ZLDO500T8TA
Datasheets		Diodes Environmental Compliance Cert

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 1963

Can ship immediately.
