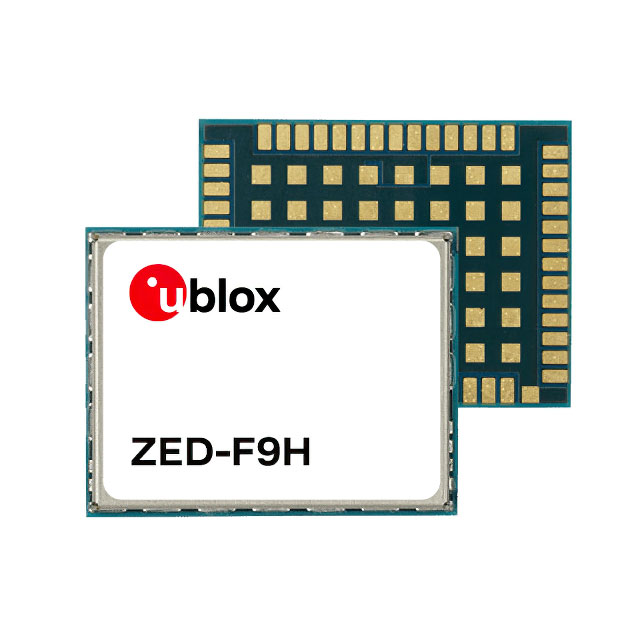

ZED-F9H-01B

ZED-F9H-01B

Part Number	ZED-F9H-01B
Manufacturer	u-blox
Other Part Numbers	672-ZED-F9H-01B-ND 672-ZED-F9H-01B ZED-F9H-01B-00
Description	MODULE
Detailed Description	ZED-F9H RF Receiver BeiDou, Galileo, GLONASS, GNSS, GPS 1.207GHz, 1.2276GHz, 1.246GHz, 1.561GHz, 1.575GHz, 1.602GHz -167dBm 921.6kbps 54-LGA (22x17)
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Product Attributes

Category		RF and Wireless RF Receivers
Manufacturer		u-blox
Series		ZED-F9H
Packaging		Bulk
Part Status		Active
Package / Case		54-SMD Module
Sensitivity		-167dBm
Mounting Type		Surface Mount
Frequency		1.207GHz, 1.2276GHz, 1.246GHz, 1.561GHz, 1.575GHz, 1.602GHz
Modulation or Protocol		BeiDou, Galileo, GLONASS, GNSS, GPS
Data Interface		I2C, SPI, UART, USB
Operating Temperature		-40°C ~ 85°C
Voltage - Supply		2.7V ~ 3.6V
Applications		GPS
Current - Receiving		130mA
Data Rate (Max)		921.6kbps
Supplier Device Package		54-LGA (22x17)

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ZED-F9H-01B
Datasheets		General Terms and Conditions of Sales of u-blox AG
Datasheets		UBX-23004336 3/21/23

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		7A994
HTSUS		8526.91.0020
Moisture Sensitivity Level (MSL)		4 (72 Hours)
REACH Status		REACH Unaffected

In Stock: 187

Can ship immediately.
