Part Number |
Z8F3221AN020EC00TR
|
---|---|
Manufacturer | Zilog / Littelfuse |
Other Part Numbers |
Z8F3221AN020EC00T-ND
Z8F3221AN020EC00T
|
Description | IC MCU 8BIT 32KB FLASH 44QFP |
Detailed Description | eZ8 Encore!® XP® Microcontroller IC 8-Bit 20MHz 32KB (32K x 8) FLASH 44-LQFP (10x10) |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Zilog / Littelfuse | |
Series |
Encore!® XP®
|
|
Packaging |
Tape & Reel (TR)
|
|
Part Status | Obsolete | |

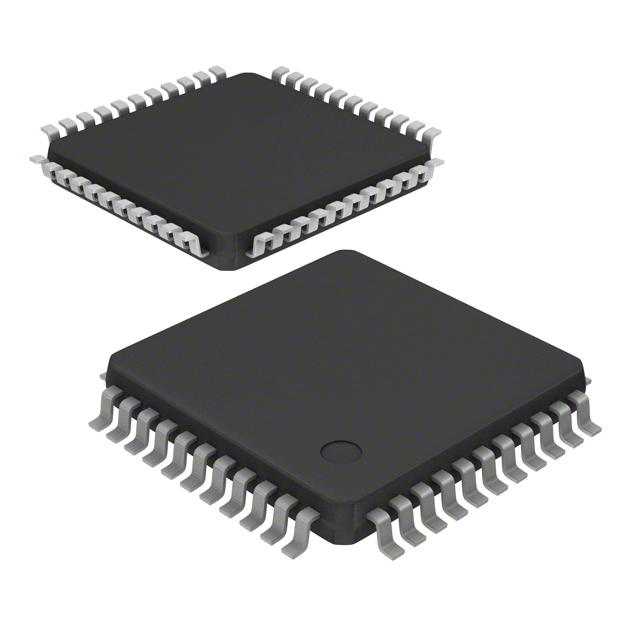

Package / Case | 44-LQFP | |
Mounting Type | Surface Mount | |
Speed | 20MHz | |
Program Memory Size | 32KB (32K x 8) | |
RAM Size | 2K x 8 | |
Operating Temperature | -40°C ~ 105°C (TA) | |
Oscillator Type | Internal | |
Program Memory Type | FLASH | |
Core Processor | eZ8 | |
Data Converters | A/D 8x10b | |
Core Size | 8-Bit | |
Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V | |
Connectivity | I2C, IrDA, SPI, UART/USART | |
Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT | |
Supplier Device Package | 44-LQFP (10x10) | |
Number of I/O | 31 | |
DigiKey Programmable | Verified |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | Z8F3221AN020EC00TR | |
Datasheets | Zilog RoHS |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8542.31.0001 | |
Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
REACH Status | REACH Unaffected | |
RoHS Status | RoHS non-compliant |
