Z8F0880AN020SG _ Microcontrollers_Embedded_Integrated Circuits (ICs)

Part Number	Z8F0880AN020SG
Manufacturer	Zilog / Littelfuse
Other Part Numbers	Z8F0880AN020SG-ND
Description	IC MCU 8BIT 8KB FLASH 44QFP
Detailed Description	eZ8 Encore!® XP® Microcontroller IC 8-Bit 20MHz 8KB (8K x 8) FLASH 44-LQFP (10x10)
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Embedded Microcontrollers
Manufacturer		Zilog / Littelfuse
Series		Encore!® XP®
Packaging		Tube
Part Status		Not For New Designs

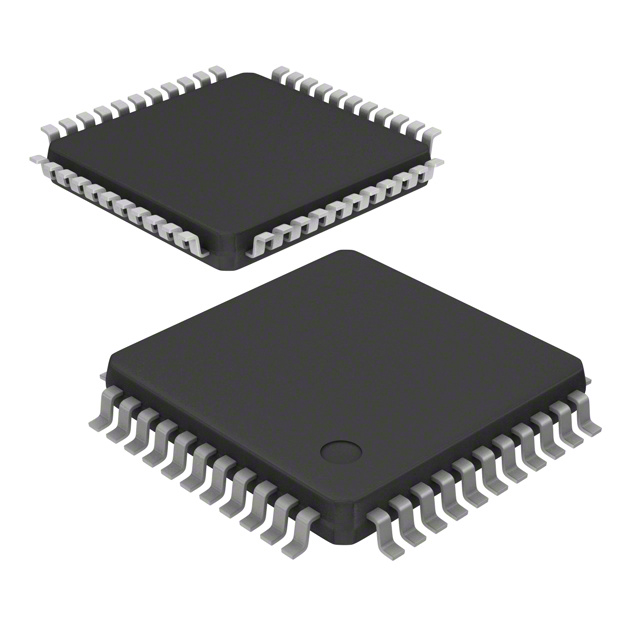

Package / Case		44-LQFP
Mounting Type		Surface Mount
Speed		20MHz
Program Memory Size		8KB (8K x 8)
RAM Size		2K x 8
Operating Temperature		0°C ~ 70°C (TA)
Oscillator Type		Internal
Program Memory Type		FLASH
Core Processor		eZ8
Data Converters		A/D 8x10b
Core Size		8-Bit
Voltage - Supply (Vcc/Vdd)		1.8V ~ 3.6V
Connectivity		I2C, IrDA, LINbus, SPI, UART/USART
Peripherals		Brown-out Detect/Reset, LED, LVD, POR, PWM, Temp Sensor, WDT
Supplier Device Package		44-LQFP (10x10)
Number of I/O		37
DigiKey Programmable		Verified

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.31.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Not recommended for new design, minimums may apply.
