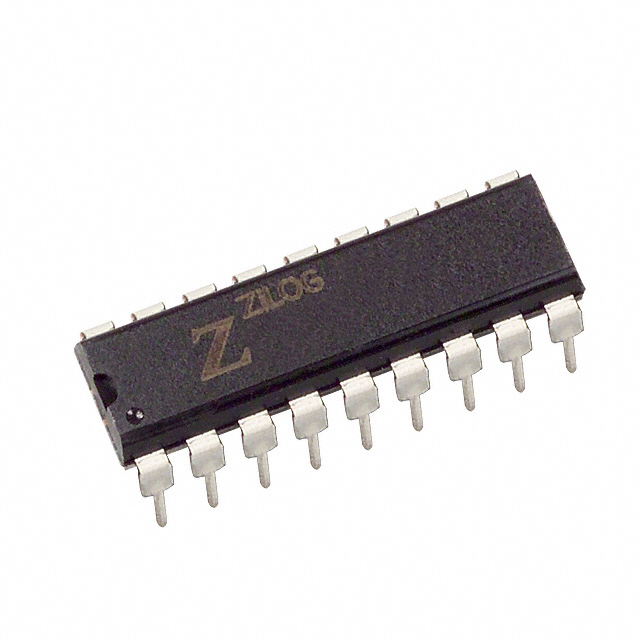

Z8E00010PEG

Part Number
Z8E00010PEG
Manufacturer Zilog / Littelfuse
Other Part Numbers
Z8E00010PEG-ND
Description IC MCU 8BIT 512B OTP 18DIP
Detailed Description Z8 Z8® Plus Microcontroller IC 8-Bit 10MHz 512B (512 x 8) OTP
Datasheet Datasheet

Product Attributes

Category
Manufacturer Zilog / Littelfuse
Series
Z8® Plus
Packaging
Tube
Part Status Obsolete
Package / Case 18-DIP (0.300", 7.62mm)
Mounting Type Through Hole
Speed 10MHz
Program Memory Size 512B (512 x 8)
RAM Size 32 x 8
Operating Temperature -40°C ~ 105°C (TA)
Oscillator Type Internal
Program Memory Type OTP
Core Processor Z8
Core Size 8-Bit
Voltage - Supply (Vcc/Vdd) 4.5V ~ 5.5V
Peripherals WDT
Number of I/O 13
DigiKey Programmable Not Verified

Documents & Media

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.31.0001
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
