Z86E0412HSC1903

Part Number
Z86E0412HSC1903
Manufacturer Zilog / Littelfuse
Other Part Numbers
269-3077-ND
269-3077
Description IC MCU 8BIT 1KB OTP 20SOIC
Detailed Description Z8 Z8® Microcontroller IC 8-Bit 12MHz 1KB (1K x 8) OTP
Datasheet Datasheet

Product Attributes

Category
Manufacturer Zilog / Littelfuse
Series
Z8®
Packaging
Tube
Part Status Obsolete

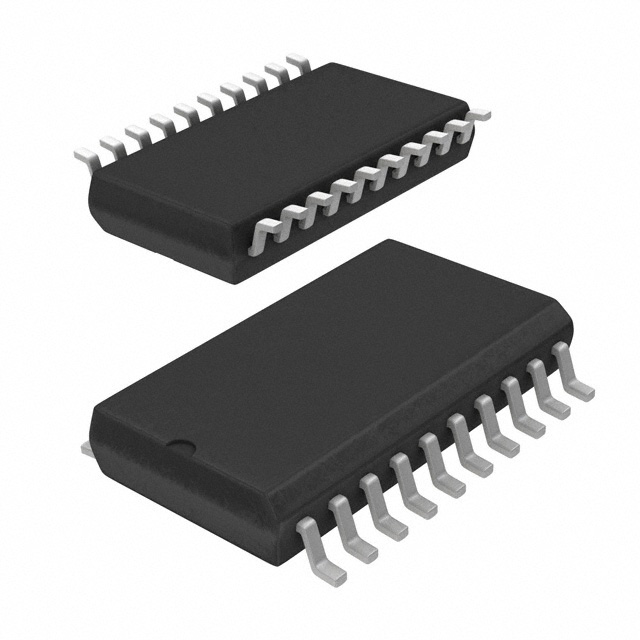

Package / Case 20-SOIC (0.295", 7.50mm Width)
Mounting Type Surface Mount
Speed 12MHz
Program Memory Size 1KB (1K x 8)
RAM Size 125 x 8
Operating Temperature 0°C ~ 70°C (TA)
Oscillator Type Internal
Program Memory Type OTP
Core Processor Z8
Core Size 8-Bit
Voltage - Supply (Vcc/Vdd) 4.5V ~ 5.5V
Peripherals POR, WDT
Number of I/O 14
DigiKey Programmable Not Verified

Documents & Media

RESOURCE TYPE LINK
Datasheets Z86E0412HSC1903
Datasheets Zilog RoHS

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.31.0001
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status RoHS non-compliant

Obsolete

This product is no longer manufactured.
